Specifications
flange type pressure gauge1.stainless steel structure
2.imported bourdon tube
3.OEM service optional
4.CE&ISO9000

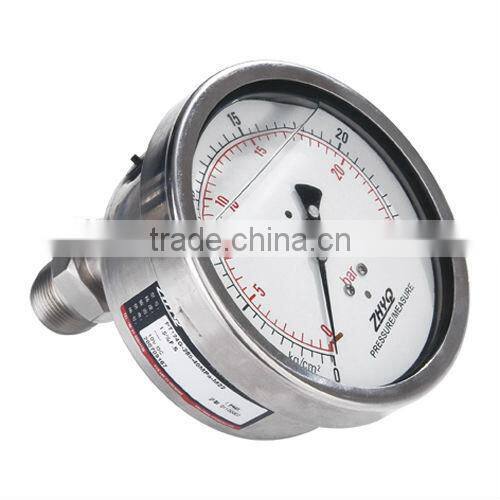

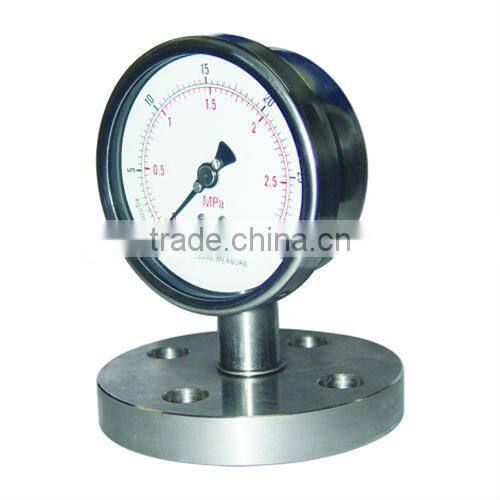

Flange diaphragm pressure gauge
Description
PT124Y-624 flange type diaphragm pressure gauge, adopts flange standard parts combined tightening sealing and high elastic alloy corrugate diaphragm, imported bourdon tube, designed with all stainless steel structure. It is suitable for the corrosive medium process pressure measuring of many types of machinery. Case can be arbitrary 360 angles adjusting to the best viewing angle.
Application
petroleum and chemisrty equipment
fiber equipment
medicine
food machinery
Feature
Special mechanical design
Install easily
Fill in silicon oil(food grade)
Good shock-proof and anti-corrosion
High reliability and good repeatability
Specification
Range | 0~10bar to 0~500bar |
Accuracy | ±1.6%FS |
Configuration | Bourdon tube |
Over Pressure | 1.5*FS |
Dial Diameter | 100mm |
Max Diaphragm Temp. | 125°C |
Process Connection | flange design |

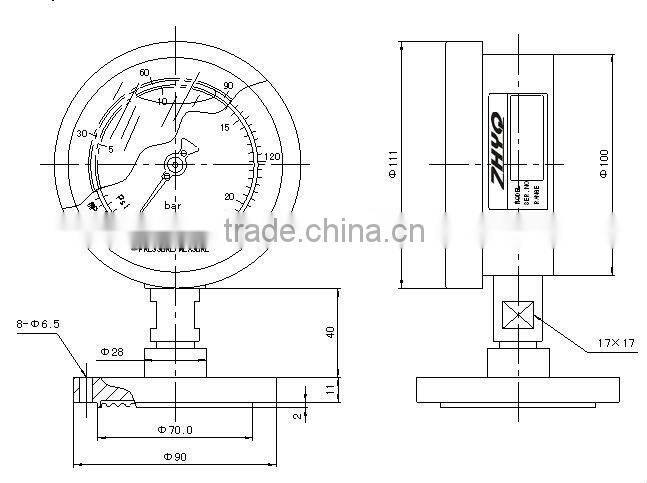

Dimension
Ordering guide
Model | Range | Output | Process connection | Other requirement |
PT124Y-623 | --- | none | --- | --- |
Example: PT124Y-623-100Bar-flange | ||||
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Moneygram.
4. How about the usual delivery time?
We will send goods to you within 15 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
Company Profile
We ZHYQ is the leading manufacture which specializes in the design and construction of various transducer, transmitter and automation control products for more than 13 years. Our main products contain melt pressure transmitter, pressure transmitter, automotive pressure sensors, pressure gauge, temperature transducer and pressure instrumentation. We service the markets of Industrial, Oil & Gas, Automation Control System, Plastics, Rubber, Composites and etc.
With the development strategy of offering High-tech, High Quality, High level service to every customer, we successfully passed ISO9001 (2008) and CE Certificates. What’s more, our products are highly welcomed in Asia, America, Europe, Africa, etc.
Your requirement is our creating power; your satisfaction is the greatest reward and confirmation to us. And we’ll make persistent efforts to improve our technology and service to meet your needs!
