Bridge Type Load Cell ZH-CZL140 New!
- Shanghai
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | ZH-CZL140 | Usage | Other, tension or compression | |
| Theory | Resistance Sensor | Output | Other, mV/V |
Product Description
Specifications
Alum alloy structureHigh precision
For use in tension or compression.
Low capacity
FEATURES:
Alloy steel Structure (40CrNiMoA&17-4PH ) Glue-sealing / Welding / High side load tolerance.
APPLICATIONS:
Truck scales / Railroad track scales etc

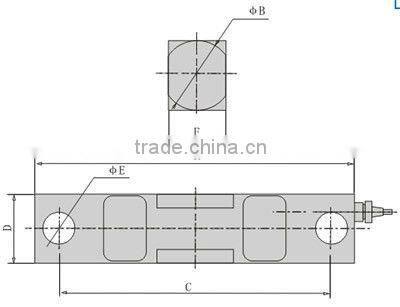

Dimensions:
Wiring Schematic Diagram:
Range(t) | A | B | C | φD | E | F |
1~2 | 120 | 50 | 120 | 25 | 20 | 210 |
2.5~5 | 120 | 50 | 120 | 30 | 30 | 210 |
10 | 140 | 90 | 180 | 40 | 43 | 230 |
20~30 | 205 | 150 | 185 | 60 | 50 | 245 |
Parameters:
Rated Load(t) | 1~2, 2.5~5, 10, 20~30 | ||
Precision | C1 | Insulation Resistance(MΩ) | ≥5000(100VDC) |
Comprehensive Error(%F.S) | 0.05 | Excitation Voltage(V) | 9~12(DC) |
Rated output(mv/v) | 2.0±0.004 | Compensated temp.Range(°C ) | -10~+40 |
Non-linearity(%F.S) | 0.05 | Use Temp.Range(°C ) | -35~+65 |
Hysteresis(%F.S) | 0.05 | Temp.Effect on Zero(%F.S/10°C) | 0.03 |
Repeatability(%F.S) | 0.03 | Temp.Effect on Span(%F.S/10°C) | 0.02 |
Creep(%F.S/30min) | 0.02 | Safe Overload (%F.S) | 150 |
Zero Balance(%F.S) | ±1 | Ultimate Overload(%F.S) | 200 |
Input Resistance(Ω) | 700±5 | Defend Grade | IP68 |
Output Resistance(Ω ) | 700±5 | Cable (4PIN) | ,3m |
