Pressure and Temperature Instrument

Specifications

Pressure and Temperature instrument   N50

Discription

This series Digital pressure  temperature indicator N50 is the new developed product of our company. It has much advanced technology in the world ,such as the technology in electron, singlechip, computer erasure, anti-jamming and so on.

The temperature indicator have the strong point of high precision of measure and control, anti-jamming, small in volume, light in height and save power and completed function and reliable task.

It can be set upper limit and lower limit alarm and has the indicator light on alarm,relay touch output control peripheral equipment, high precision of voltage output module, current output module and relay output control modult for user to choose .

This indicator can matching with our PT124B-11XT/12XT .

Application

The digital pressure temperature indicator can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry;  AND also can be compoundwith resistance strain guage press sensor of other manufactory .

Specification

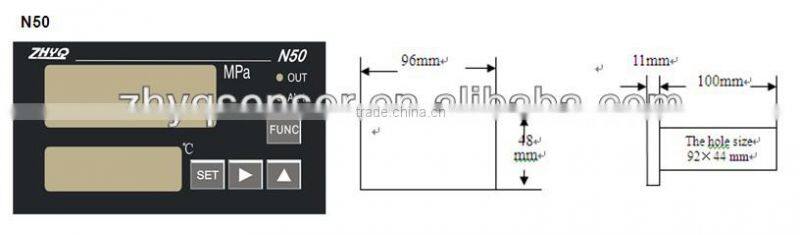

Panel Dimensions

Panel Dimensions

Remarks : this indicator standard input is 2mV/V , output is 2 relay alarms , is you need special input or output (3.33mV/V ,4-20mA ,0-5V ,0-10V) , when order it , please mention it .

Order Guide :with "* "are required , with "---"is optional ,

Remarks the pressure range when order instrument and pressure transmitter. It could not modify the pressure range for the indicator and transducer by customer. The transducer must match with the digital transmitter supplier by ZHYQ.

Maintenance

The operating temperature of this digital pressure temperature indicator  is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.

Price, Package and Service

1, T/T, Western Union, MoneyGram

2, Any questions from your are welcome and will be replied in 24 hours.

3, 7 days replacement and 12 months repair free of charge for quality problem.

4, All goods will be fully checked by our QC.

5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.

6. Package: The goods will be put into the packing box with instructions and certificate of quality first.
