Relay Alarms Output for Digital Pressure Indicators
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Digital Pressure And Temperature Indicator, Pressure Controller
-
Pressure Indicator Matching With Pressure Transmitter
-
Pressure And Temperature Digital Indicator for Multi Funcation Pressure Transmitter
-
Digital Pressure And Temperature Instrument for Melt Pressure Sensor
-
Digital Pressure And Temperature Controller
-
2 Relay Alarms Output for Digital Pressure Indicator
Product Details
Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
Model Number | N80 |
Product Description
Specifications
Digital Pressure Indicators with relay alarms outputAnti- jamming
can mataching with all kinds of pressure sensor's output
relay alarms output for Digital Pressure Indicators N80
Discription

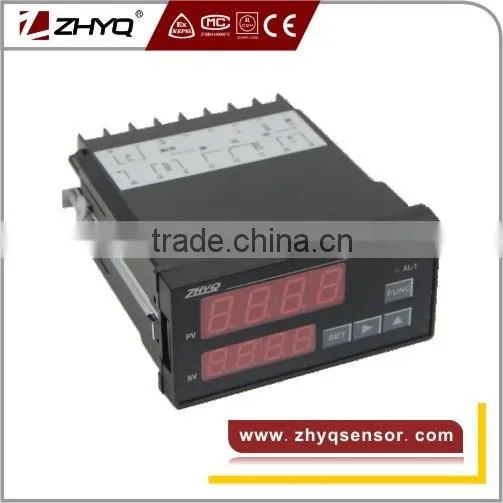

N80 digital Pressure indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, which takes the advantage of latest state-of-art technology and comes in small-size, light-weight and in low-power.
This pressure indicator has been specifically designed for use with mv/Volt output transducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on. This series indicator can match ZHYQ’s melt pressure transducer also.
Application
N80 Pressure indicator can be widely used in situation of display and autocontrol in Hydraulic pressure, oil, plastics, latex, printing and dyeing, textile industry; AND also can be compound with resistance strain guage press sensor of other manufactory
Specification
(1) | Display | Dual 4-digit Green and Red LEDs |
(2) | Resolution | 0.2% FSO ± 1 |
(3) | LEDs | Out, Alarm-1, Alarm-2, CALibration |
(4) | Input Sensibility | 2.5mv/V or 3.3 mv/V (automatic selection) |
(5) | Sampling Speed | 20 per second |
(6) | Excitation Voltage | +9 VDC (output to transducer) |
(7) | All Output Relays | Relay 220V 1A |
(8) | Retransmission | 4~~20 mA standard current loop |
(9) | Communication | RS-485 MODBUS( PY500 Only) |
(10) | Alarm Range | 0001 – 9999 PSI or Bar (configurable) |
(11) | Temperature | 0 - 55°C |
(12) | Humidity | <= 80% RH |
(13) | Calibration | 80% FSO (Full Scale Output) |
(14) | Power Supply | 110/220VAC or +24VDC (designated while purchasing) |
(15) | Size | 96mm x 48mm x 100 mm (W x H x D) |
(16) | Panel Cutout | 92mm x 46mm |
(17) | Weight | 400(Maximum) grams |
Panel Dimensions
Remarks : this pressure indicator standard input is 2mV/V , output is 2 relay alarms , is you need special input or output (3.33mV/V,4-20mA ,0-5V ,0-10V) , when order it , please mention it .
Order Guide :with "* "are required , with "---"is optional ,
Maintenance
The operating temperature of N80 pressure indicator is 0-55°C, the relative humidity is no more than 80% RH, it can be used in the conditions without dirt or corrosive gas. It can be free repaired in 12 months from leaving our company. If there is something wrong with the use of customer or the beyond the maintenance, we should charge for the service of repair.
Price, Package and Service
1, T/T, Western Union, MoneyGram
2, Any questions from you about our pressure indicator are welcome and will be replied in 24 hours.
3, all our pressure indicator are 7 days replacement and 12 months repair free of charge for quality problem.
4, All our pressure indicator will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Package: 1 pcs pressure indicator / inner box including the manual .
Certifcates
