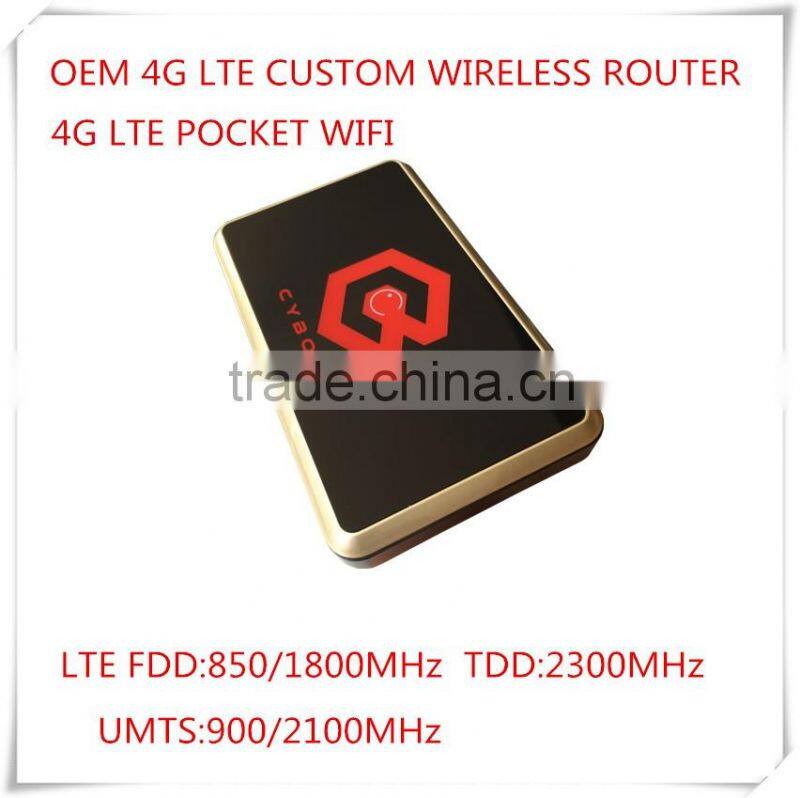

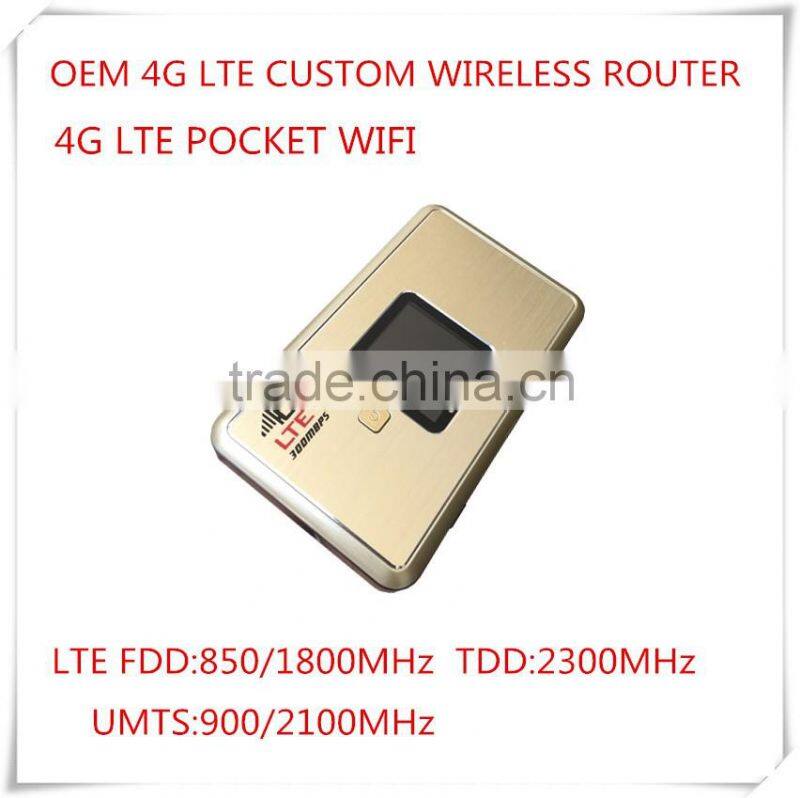

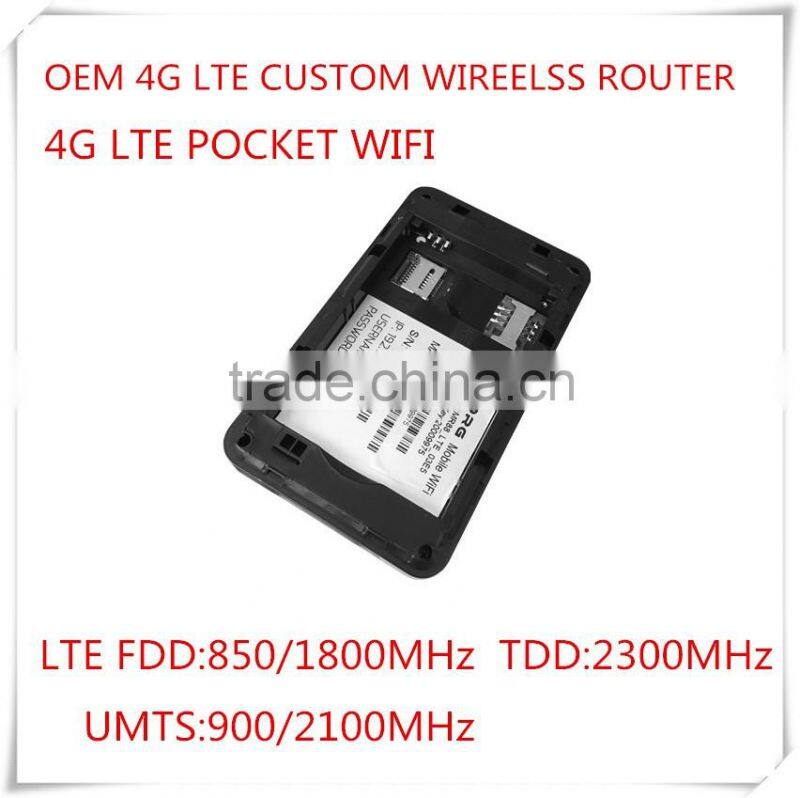

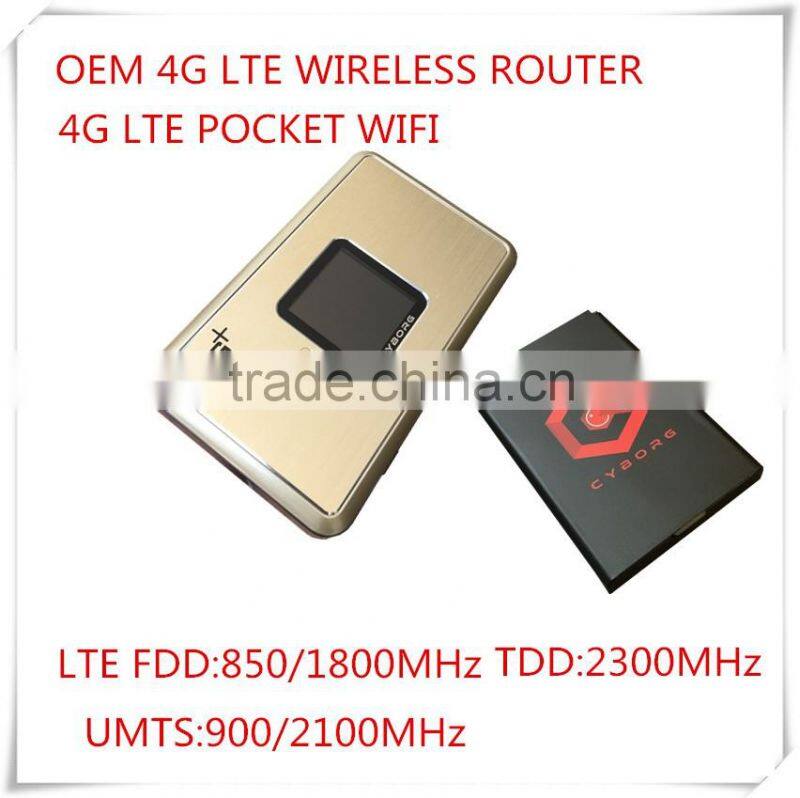

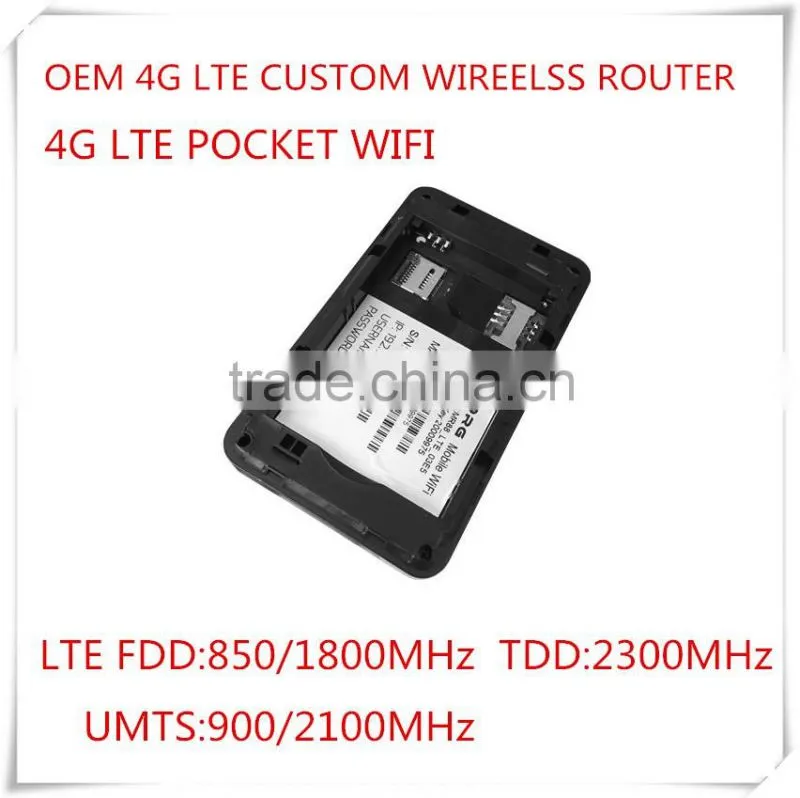

Hot Sale Cheapest OEM Portable 4G LTE Wireless WiFi Router And 4G Mobile WiFi Hotspot
Frequency:
LTE FDD:850/1800MHz TDD:2300MHz
UMTS:900/2100MHz
Power Level |
TDD-LTE |
Power Class 3(23 +/-3dBm) |
|
FDD LTE |
Power Class 3(23 +/-2dBm) |
||
TD-SCDMA |
- |
||
UMTS |
Power Class 3(23 +/-2dBm) |
||
EDGE |
- |
||
GPRS |
- |
||
Sensitivity |
TDD LTE |
94 dBm(20MHZ) |
|
FDD LTE |
-93 dBm(20MHZ) |
||
TD-SCDMA |
- |
||
UMTS |
-106 dBm |
||
EDGE |
- |
||
GPRS |
- |
||
Data Rate |
TDD-LTE |
3GPP R9 ,Category 4, DL 150Mbps UL 50Mbps |
|
FDD-LTE |
3GPP R9 ,Category 4, DL 150Mbps UL 50Mbps |
||
TD-SCDMA |
- |
||
UMTS |
3GPP R7 DL 21.6Mbps UL 5.76Mbps |
||
EDGE/GPRS |
- |
||
LAN |
|||
Band |
WIFI IEEE 802.11b/g/n |
ISM 2.400~2.484GHz |
|
Power Level |
WIFI IEEE 802.11b |
>10dBm |
|
WIFI IEEE 802.11g |
>10dBm |
||
WIFI IEEE 802.11n |
>10dBm |
||
Sensitivity |
WIFI IEEE 802.11b(11M) |
-76dBm@ 8%BER |
|
WIFI IEEE 802.11g(54M) |
-65dBm@ 10%BER |
||
WIFI IEEE 802.11n(72.2M) |
-64dBm@ 10%BER |
||
Data Rate |
WIFI IEEE 802.11b |
11/5.5 Mbps |
|
WIFI IEEE 802.11g |
54/48/36/24/18/12/9/6 Mbps |
||
WIFI IEEE 802.11n |
72.2/65/58.5/52/39/26/19.5/13/6.5 Mbps |
||
System |
|||
2G/3G/4G setup |
Network Selection |
Manual, Auto |
Supported |
Setup by user |
Not Supported |
||
Interoperability |
TDD-LTE/FDD-LTE $ UMTS, UMTS & GSM |
Supported |
|
SMS |
SMS over SGs Func at LTE |
Supported |
|
SMS's receiving and reading |
Supported |
||
APN setup |
APN setup and revise |
Supported |
|
PIN Func |
PIN:Save, revise, lock,unlock |
Supported |
|
DM |
DM |
Supported |
|
Modem Func |
Conn to PC by USB |
Supported |
|
Automatically connect reconstructed |
Can automatically reconnect to network after off-network in data using |
Supported |
|
WIFI setup |
Protocol |
Max users over 10 |
Supported |
DHCP client / server, you can set whether to activate the DHCP service assigns IP addresses starting and ending addresses, set the gateway address; |
Supported |
||
Support terminal IP address, SSID, communication channel, security type, the administrator account and password factory setting |
Supported |
||
Support SSID and channel settings: Set SSID, communication channel (frequency band WiFi settings, select the range of WiFi support of the band all the available channels), WIFI function on/off, and the SSID broadcast on/off |
Supported |
||
Provides WEP, WPA-PSK, WPA2-PSK, WAPI encryption methods, etc. |
Supported |
||
Support MAC and IP filtering |
Supported |
||
Other setup |
Driver setup |
With the PC operating system automatically recognizes, supports drivers installed automatically |
Partly Supported |
Web Server |
WEB UI |
Supported |
|
Administrator password configuration |
Terminal preset default administrator password, supports password changes |
Supported |
|
SW update |
Support local upgrade the firmware of the terminal |
Supported |
|
Time setup |
Set user location's time |
Supported |
|
Recovery |
Support the terminal restore all settings to the factory default state |
Supported |
|
Reboot |
Reboot by SW |
Not Supported |
|
Online help |
This menu item provides the user with the help of the course, descriptive information |
Supported |
|
System Log |
Display system during operation log information generated. Easy for users to understand the equipment through query log system events that have occurred on. Allows the user to clear the log operation |
Supported |
|
Power features |
working Voltage |
Battery voltage:3.5-4.2V |
|
Voltage fluctuations |
3.5-4.2V DC |
||
working Current |
8hours |
||
Environmental Characteristics |
Operating Temperature |
0℃~+45℃ |
|
Extreme working temperature |
-20℃~+60℃ |
||
Storage Temperature |
-20℃~+25℃ |
||
Relative humidity |
45%~85% |
||
Structure |
Weight |
TBD |
|
I/O |
Micro USB |
||
Battery |
3000 mAh |
||
LTE SIM |
Single |
||
T-Flash Card |
supported |
||
Size |
105mm*63mm*15mm |
||
Port |
LTE SIM |
3GPP 31.101 and 31.102 standard |
|
USB |
Micro-USB |
||
Key |
Power,WPS Key |
||
Screen |
LCD,1.44"supported |
||
PC OS |
Win7/WinXP |
Supported |
|
MAC OS |
Supported |
||
Windows8 |
Supported |
||
Android |
Supported |
||
LINUX |
Supported |
||
