Specifications

-Huawei B970b 3G router DL7.2Mbps,UL5.76Mbps with 4RJ45,1RJ11 unlocked huawei b660 3g wireless router
-mobile wifi 3g gateway



Huawei B970b 3G router DL7.2Mbps,UL5.76Mbps with 4RJ45,1RJ11 unlocked huawei b660 3g wireless router

Original HUAWEI B660 Stock with wholesale price



Huawei B660 3G Router Gateway

The B660 wireless gateway is a 3G wireless gateway for residential or corporate use which provides users with flexible and diversified 3G data access and voice services.



The B660 3G Router supports the following standards:

• HSUPA (High Speed Uplink Packet Access),
• HSDPA (High Speed Downlink Packet Access),
• WCDMA (Wideband Code Division Multiple Access),
• GSM (Global System for Mobile Communications),
• GPRS(General Packet Radio Service)
• EDGE (Enhanced Date Rates for Global Evolution)

The B660 3G Router Services

• Data,
• Voice - RJ11 connector for voice calls,
• SMS
• Security and
• Management and maintenance functions



B660 3G Router Features

-Multiple network environments. Supports
-HSUPA/HSDPA/WCDMA/GSM/GPRS/EDGE
-High speed experience. Supports data services of maximum rate of 5.76Mbit/s
-HSUPA, 7.2Mbit/s HSDPA, 384kbit/s WCDMA, 236.8kbit/s EDGE, and 85.6kbit/s
-GPRS
-802.11b/g/n
-WPS
-Built-in DHCP Server, DNS RELAY and NAT
-Security services. Provides instant protection to block potential security risks and intrusion attempts.
-User friendly web-based management.
-Windows 2000/ Windows XP/ Windows Vista/ Windows 7
-LED indicator - easy to observe the status of equipment
-Receiving diversity and load equalizer
-Built-in WCDMA/GSM and WLAN high gain antenna
-External main diversity antenna interface







Dimensions	Length 180mm Width 123mm Height 32.5mm Weight < 300g (excluding the power adapter)
Model	B660
ID
Product	B660
Technical standard	WAN:HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM LAN:IEEE 802.3/802.3u WLAN:IEEE 802.11b/g/n
Voice Service	support RJ11 phone
Antenna Specifications	Build-in Antenna, Support external antenna, Interface standard: SMA-C-J1.5
Hardware	NA
WLAN Feature	WLAN: 2.4GHz~2.4835GHz WLAN: IEEE 802.11b/g/n
Services and Applications	Data service, Voice service, SMS, Security Service, Local maintenance management function
Interface	External antenna interface (SMA) Four auto-sensing Ethernet interfaces (RJ45 and MDI/MDIX auto-sensing): 10/100Base-T One POWER (Power Adapter) interface One Phone interface (RJ11)
3GPP
USB	not support
VoIP	not support
Buttons	One power switch: ON/OFF One WLAN/WPS button One Reset button One dialing button
LEDs	supports firewall, user authentication, and PIN protection, protect users against security threats from the Internet when users are using network services.
Security	supports firewall, user authentication, and PIN protection, protect users against security threats from the Internet when users are using network services.
Functions	NA
System tools	NA
Power specifications	AC: 100V - 240V DC: 5V, 2A
Power consumption	<10 W
Environments	5% - 95%

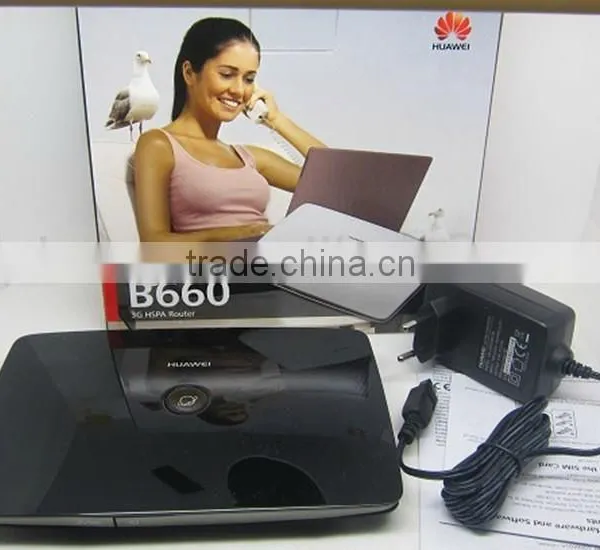

More photos attached for your reference:
