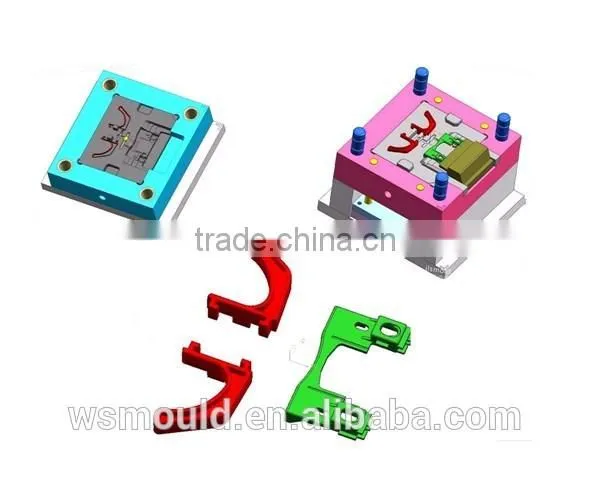

plastic mould design
plastic injection mould plastic mould design
Wishsino is the leader in designing, developing and manufacturing mould, moulding, precision-machined custom plastic manufacturer/tooling
Wishsino plastic parts serve OEM requirements for demanding automotive, Medical, Electronics, Food ,home appliance, and industrial applications.
The Capability of Wishsino:
Mould description :
SGS certification
1. Steel of Cavity and core: 2738
2. Mold base: LKM
3. Cavity: 1x1Cavity
4. Mold gate way: Yudo hot runner
5. Cooling system: Enough cooling
6. Surface: Mirror polishing
7. Tolerance: 0.02mm, 2D/3D control
8. Mould life: 1, 000, 000 shots
9. Finishe time for first sample: 40 days.
Key Specifications/Special Features:
In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this Plastic Injection Mould/Mold. This rack choose PP material, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mould steel: NAK80 forging for cor and cav, LKM for moUld base (customized)
3. Mould treatment: Final treatment for cor and cav plates by vacuum queching to 38 to 42deg; (whole plates 0.3mm hardness)
4. Mould cavity: 1*1

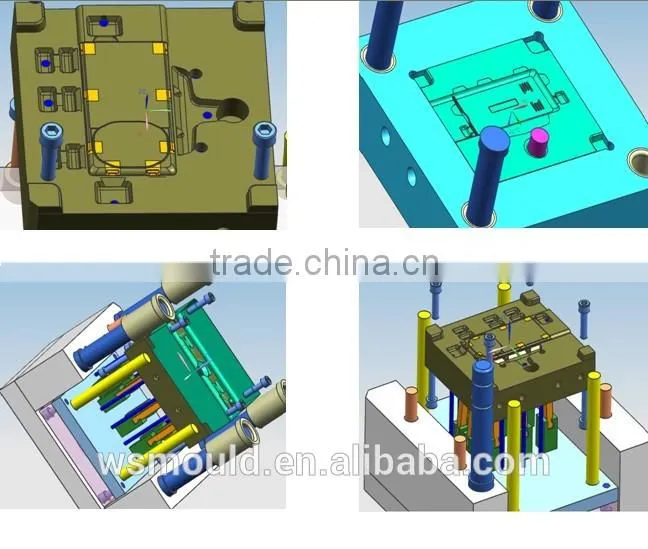

5. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mould flow for runner analyze
6. Mould size: 600 x 500mm (depends on client's machine upon changing mold size)
7. Mould fix machine: 350T on injection molding machine
8. Plastic material: PP (on normal choose PP)
9. Mould cycle time: 32 seconds/shot (without cool water when test this mold)
10. Mould doff way: Automatic by ejectors and air spring (Hasco standard)
11. Mould lifespan (minimum): 1, 000, 000 shots
12. Mould base: Copy standard mold base
13. Mould gate way: Hot runner (customized)
14. Mould packing: Standard wooden case
15. Minimum mould order should be one set
16. Mould shipment will be arranged within seven days after confirm amples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mould minimum life and technical Aegis.
Features:
1) We can provide plastic mould for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mould tooling equipment. We also have established a CAD / CAM / CAE mould design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
Name |
Plastic injection moulding |
Specification |
Depends on customer's requirements |
mould material |
S136,45#,P20,718H,2738,2344 etc. |
Mould Base Material |
LKM,FUTABA,HASCO etc.or as per customer's requirement. |
Cavity |
Single cavity,Multi Cavity,based on customer's requirement. |
Runner |
Hot/cold |
Mould life |
500,000-100,0000shots |
Material |
ABS, PC, PP, PS, POM, PMMA,PE,AS,PPSN,PBT,PA66,PC/ABS.etc |
Surface treatment |
Powder coating, polishing, chrome plating |
Color |
White,black or as per customer's requirement |
Packing |
Inner-Plastic Bag; Outer -Standard Carton Box. |
Design software |
CAE Moldflow,UG,PROE,CAD etc. |
File Format |
Solidworks,Pro/Engineer,Auto CAD,PDF,JPG |
Equipments |
CNC,EDM,ArgieCharmilles,Milling Machine,3D CMM,Projector,HG, Injection Machine |
Working Process |
Stamping, deep stamping, bending, punching, threading,welding, tapping, riveting |
Applications |
All kinds of cars, machinery, home appliance, electronic products, medical devices, stationery, computers, power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts etc |
Quality Control |
Conducted by ISO9001 |
Inspection |
IQC, IPQC,FQC,QA |
Service |
Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the USA, Europe, Japan and other countries and regions. |
Delivery time |
35-60days |
Thank you for clicking our product,And if this product couldn’t meet your requirements or if you have any other needs,Please click the trademanage to contact us.
