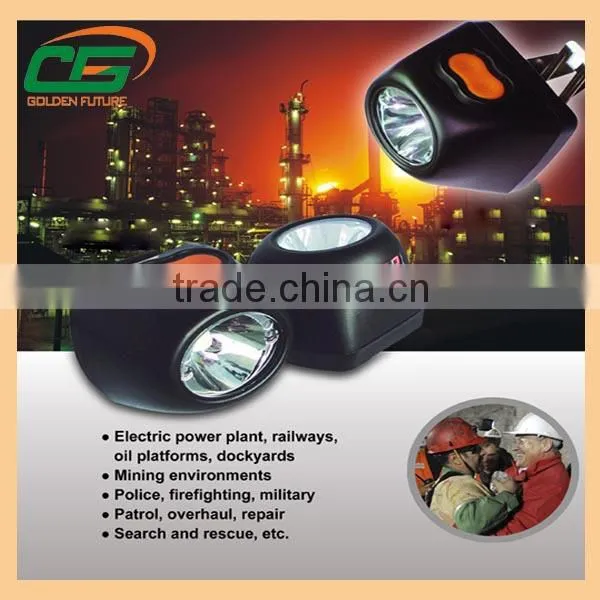

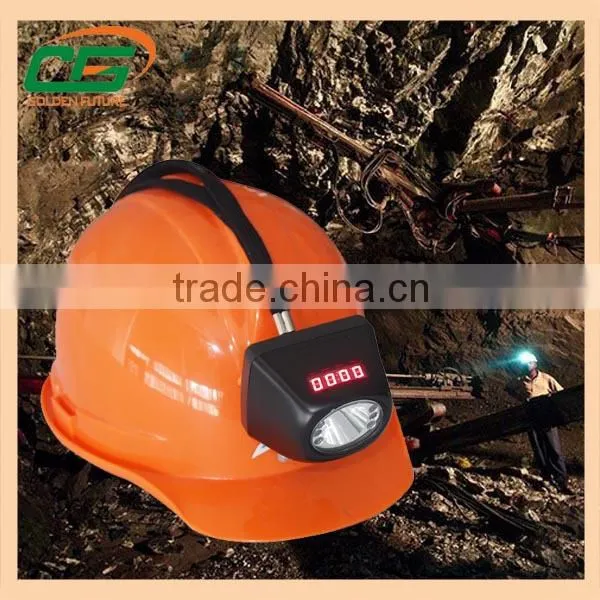

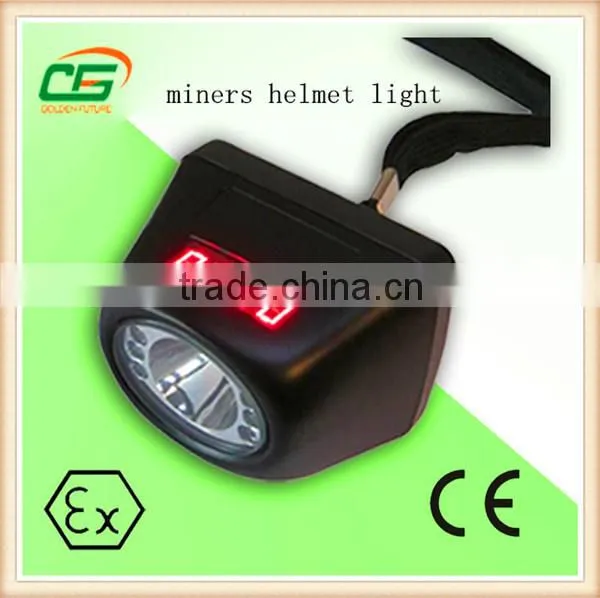

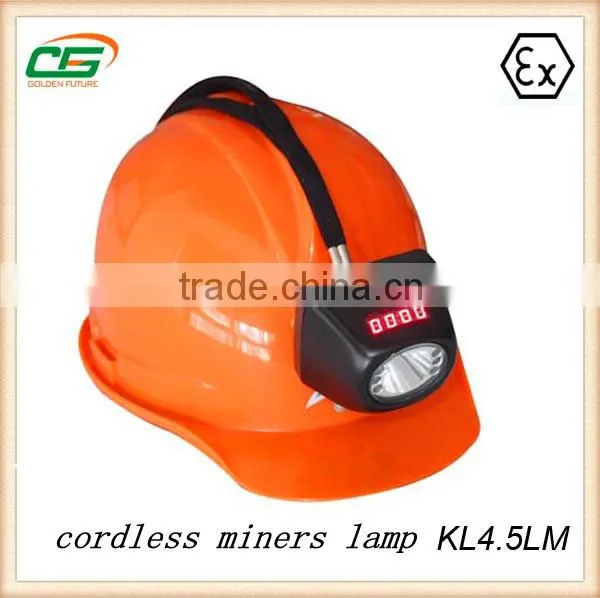

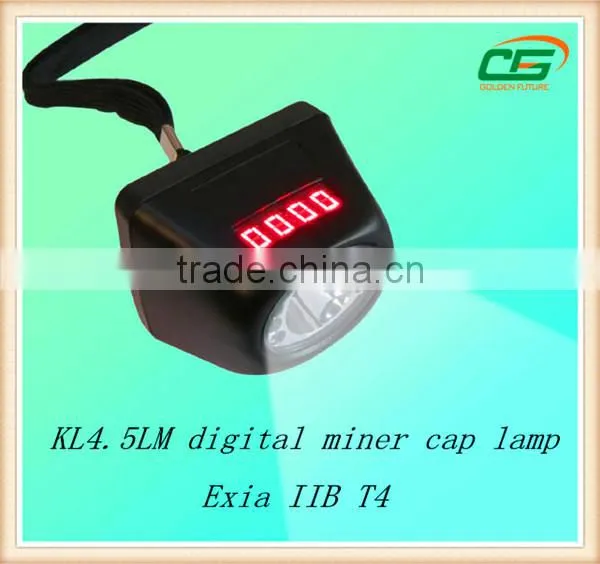

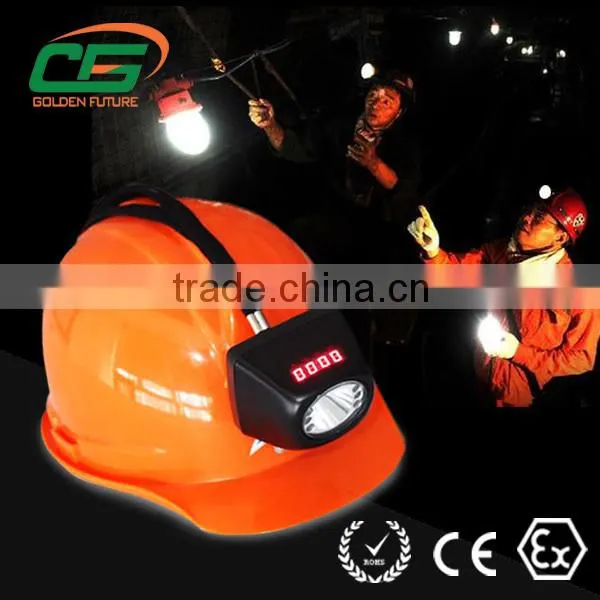

KL4.5LM digital miner cap lamp with ExiaIIB T4
Description:
1. cordless miners cap lamp
2. Digital screen, explosion-proof
3. 4500mAh Li-ion battery
4. CE/ATEX, MSHA(Pending)
Details:
KL4.5LM is a cordless, portable and digital miner cap lamp
-- 1 watt 120 lumens led as main light and 6pcs LED as auxiliary light, and bulletproof glass lens
-- Working time: more than 15 hours for main light, more than 60 hours for backup light
-- Packing: per total weight 215g charger included. GW 8.5KG. 20sets/carton
-- LED lifetime : 100,000 hours. Lighting degree: more than 4500 lux
-- 4500mAh Li-ion batteries included one housing of the cap lamp
-- Meet standard: CE/ATEX, MA, SABS, MSHA (Pending) mark ATEX logo
Features:
Features |
Value |
Unit |
|
Light source |
LED Power |
1 |
W |
Luminous flux |
>120 |
Lm |
|
Life time |
>50.000 |
hour |
|
|
Li-ion battery
|
Rated capability |
4.5 |
Ah |
Rated voltage |
3.7 |
V |
|
Continuous working time |
>15 |
hour |
|
Charging time |
<6 |
hour |
|
Life time |
1000 |
circle |
|
Charing voltage and current |
4.9V@1A |
||
lamp lighting degree (distance 1 meter) |
>4500 |
Lux |
|
Accessory light Usage life hour |
100000 |
h |
|
Short circuit protect time |
<15ms |
ms |
|
Weight (with battery) |
<215 |
g |
|
Outline dimension |
77*61*55 |
mm |
|
IP Class |
IP65 |
||
EX MARK |
IMI Exia IIB T4 |
||

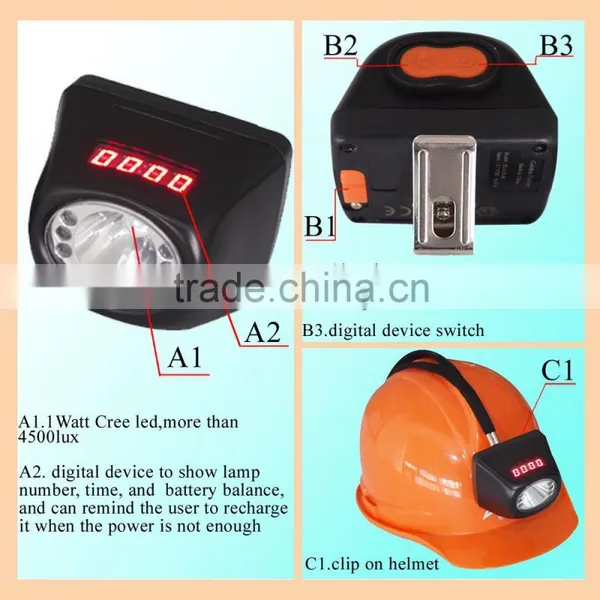

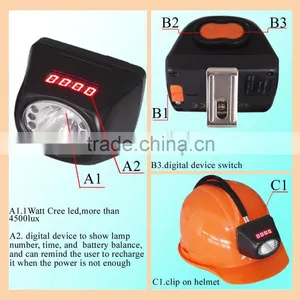

Display cap lamp number , time , battery capacity by 4 LED digital device
(four squares is full , three squares means 3/4 capacity , two means 1/2 capacity, one means 1/4 capacity, one square blink per 20 sec. Means have to be charged again and the battery capacity only can light for about one hour) .
All in one case with PC plastic material , make very good feature of explosion-proof. Protection in electrical short-circuit, automatic power-off on the socket , 100,000 hours LEDs Lifetime. Battery usage lifetime about 1000 cycles.
Competitive advantage:
Reliability: The high strength case , optimized structure design and MCU control make the product more reliable
Portability: Just a head lamp , Small in size , light in weight (only 215g for whole product), simple charging, easy usage
Efficiency: more than 15hours at full brightness. more than 4000lux at starting time, and more than 1200lux after 11 hours continuous lighting.
Environmental: Li-ion battery is free for maintenance, and the material of li-ion is environmental, use 1Watt high power LED as the main light, and 6pcs 5mm backup LEDs to save power
Economy: three times longer than lead and acid cap lamp and saving in maintenance makes the product more compatible in price.
The packaging of KL4.5LM digital miner cap lamp with ExiaIIB T4 : White box packing, 20pcs/carton, gross weght:9Kg/ctn, Carton size: 41*33*24cm
GOLDEN FUTURE ENTERPRISE HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years, especially for miner lamp, explosion proof lighting fixture, LED street light and other LED commercial lightings, and etc.
We have more than 10 advanced engineers with many years design experience for the electronic design, structure design and optics design.
With many years selling, We have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.
Our main poducts :
1. LED mining cap lamp, or miner lamp; explosionproof lighting fixture for mining or petro-plant.
2. LED street light/high bay light/flood light/area light.
3. LED commercial lightings/bulbs.
4. LED flashlights/headlamps
5. LED keychains and other gift products
Please do not hesitate to contact us if you need LED application products or need to develop new products.
You are warmly welcome all the time.
We can provide customer good quality,quick delivery,good service.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems.
Q1: When will the products be deliveried if the order has been placed?
it will take about 25 days for the customised items.
Q2:Do you have any sales sevivce?
Yes, we do 1 Year Warranty for any of our products.
Q3:What Certificates do you have?
Our products have been tested by CE and RoHS Sandards which is complied with the European Directive.
Q4:How to pay?
We accept T/T, Western union and Paypal
