Solar Pumps/solar Water Pumps/Solar Water Pump SCPB Series

Specifications

Swimming Pool Pump Function and Characteristics
1. The pump acts the high strength industry fiber pastis as pump corpus, arranging the accurate mechanical type axis seal and high-quality stainless steel pump axis.
2. The seal performance of the seal is good. Single phase electric motor apparatus overcapacity open circuit system, can long hours continuously work

3. Main material and installation structure of each part of pump series are based on the meticulous care bolting and perfect design.

4. Have big run off, bear decay, waterproof flow bombardment, low noise and so on characteristics, its shape exquisite beautiful, the installation is simple, and can add the additional splicing enzyme fitting.

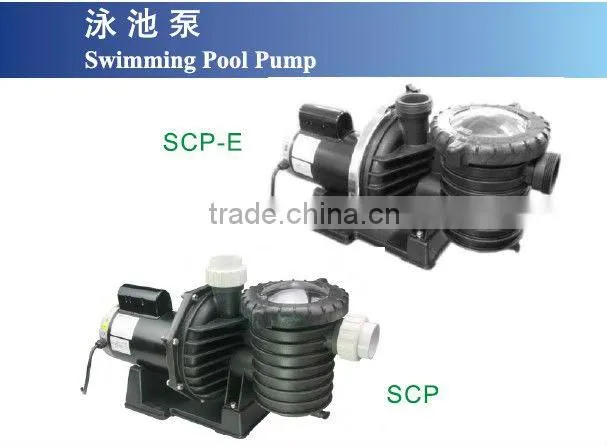

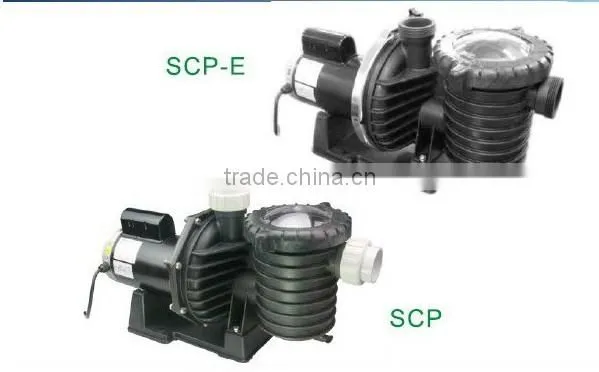

SCPB series swimming pool pump

Features:

1.Designed for high performance and super pressure

2. 2'' inlet and outlet for higher performance and lower noise

3.Capacitor  running type for energy saving, the best choice for low noise

4. the model name with II means the motor are two speed  3450rpm/1725rpm.   without II,means single speed

5. Thermal overload protector to prolong the motor's service life and ensure the motors safety

6. The model name with E means the joining between the pump body and pump cover is a clamp without letter E,are  nuts&bolts

Operation conditions

1.liquid temperature from   +5°C - +60°C

2.ambient temperature up to 50°C

3.Max working pressure:2,5bar

Applications

Jet pump for jetted bathtubs,spapools

Swimming pools,massage stations

Cleaning system

 Motor

1, 2 polo induction motor

2, Single- phase:220V-240V/50Hz

3, Single-phase with thermal protector from T.I

4, Insulation class B

5. continuous duty

6.Protection  IPX4

7. Capacitor inset
