English and Metric Ceramic Pin Gaugeplug gages and pin gages
plug gage and pin gage sets
Our product lines include English and Metric plug gages and pin gages, plug gage and pin gage sets in steel , carbide , ceramic, special pin gauge as well as ring gages, trilock gages and taperlock ...

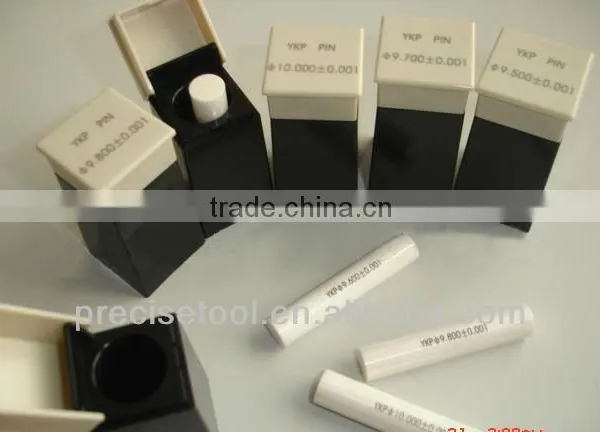

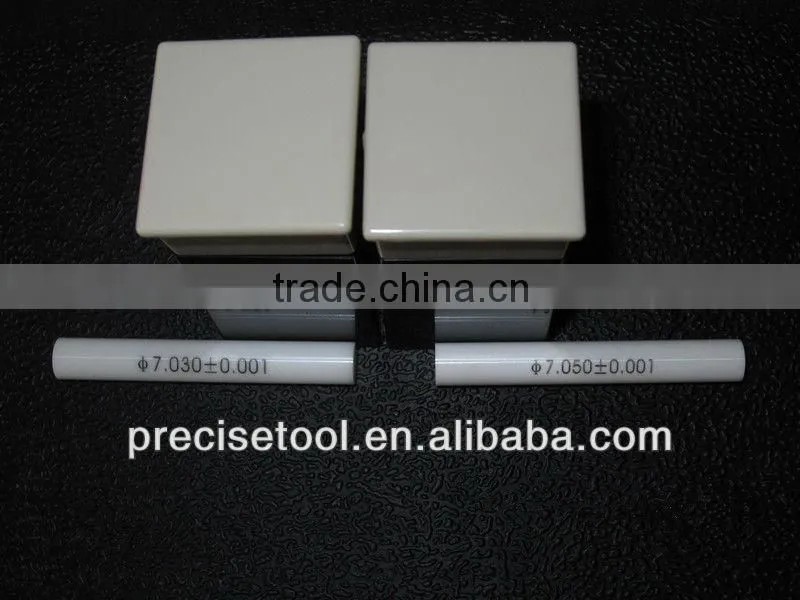

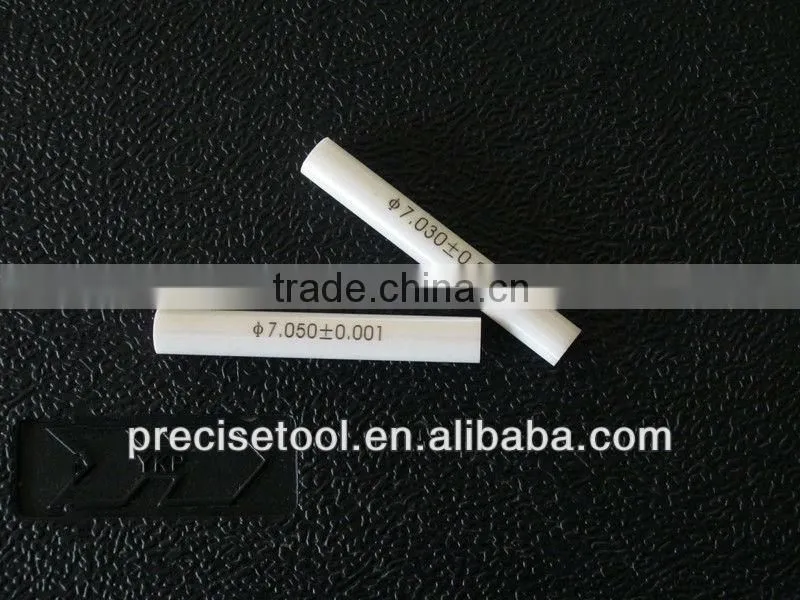

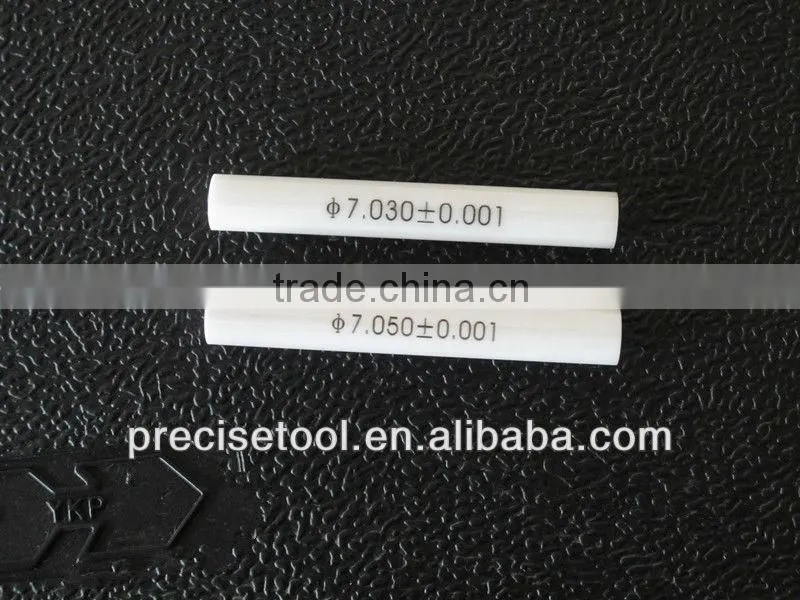

Ceramic Pin Gauge
Superior abrasion resistance prolongs service life.
Because ceramic pin gauge are free from corrosion , they can be handled with bare hands do not require special maintenance or rust prevention treatment
Similar coefficient of thermal expansion to steel , it can be used for measuring steel parts
The nominal sizes printed in black are clearly seen against the white surface
Diameters range from 0.2mm to 20mm with the smallest interval of 0.01mm , Lengh: 30mm or 50mm.
Model(minus) Model(plus) Range No. of gages
GP-M0M GP-M0P 0.011" to 0.060" 50
GP-M1M GP-M1P 0.061" to 0.250" 190
GP-M2M GP-M2P 0.251" to 0.500" 250
GP-M3M GP-M3P 0.501" to 0.625" 125
GP-M4M GP-M4P 0.626" to 0.750" 125
GP-M5M GP-M0P 0.751" to 0.832" 82
GP-M6M GP-M1P 0.833" to 0.916" 84
GP-M7M GP-M2P 0.917" to 1.000" 84
*when you order pins gauge set,just tell us size,Minus or plus.
Plain Plug Gages Library Series
Model(plus) Model(minus) Range No. of gages
INCH LIBRARY SERIES
GPS-M1-2p GPS-M1-2M 0.061"to.500" 440
GPS-M1-4p GPS-M1-4M 0.061"to.750" 690
GPS-M1-7p GPS-M1-7M 0.061"to1.000" 940
Plain Plug Gages DIN 2269
Features:
*Go(Plus) or No-Go(Minus)
* zirconia ceramics : 88~90HRC
*Accuracy : ±0.002mm, ±0.001mm or±0.0005mm
*50mm Long
Uses:
*Checking locations
* Measuring hole sizes and depths
* Go and No-Go gauging
*Setting micrometers.
* Checking distances between holes.
Model No. Range Step No. of gages Model No. Range Step No. of gages
GM-00 0.30-1.00mm 0.01mm 71 GM-12 4.02-6.00mm 0.02mm 100
GM-01 1.01-2.00mm 0.01mm 100 GM-13 6.02-8.00mm 0.02mm 100
GM-02 2.01-3.00mm 0.01mm 100 GM-14 8.02-10.00mm 0.02mm 100
GM-03 3.01-4.00mm 0.01mm 100 GM-15 1.02-3.00mm 0.02mm 100
GM-04 4.01-5.00mm 0.01mm 100 GM-16 3.02-5.00mm 0.02mm 100
GM-05 5.01-6.00mm 0.01mm 100 GM-17 5.02-7.00mm 0.02mm 100
GM-06 6.01-7.00mm 0.01mm 100 GM-18 7.02-9.00mm 0.02mm 100
GM-07 7.01-8.00mm 0.01mm 100 GM-19 9.02-11.00mm 0.02mm 100
GM-08 8.01-9.00mm 0.01mm 100 GM-20 10.01-11.00mm 0.01mm 100
GM-09 9.01-10.00mm 0.01mm 100 GM-21 11.01-12.00mm 0.01mm 100
GM-10 0.30-2.00mm 0.02mm 86
GM-11 2.02-4.00mm 0.02mm 100
.
