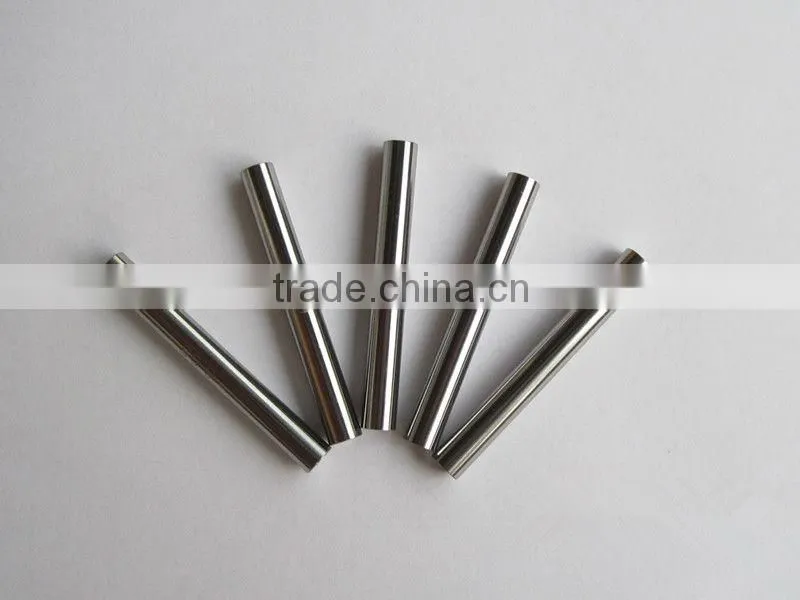

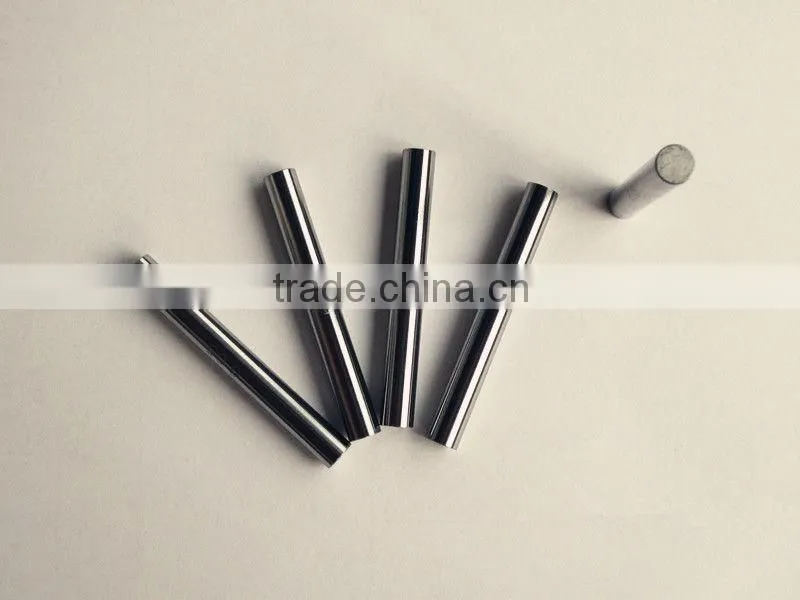

Pin Gauge

Pin Gauge thumbnail-1
Pin Gauge photo-1
US$ 20 - 60 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JM
Model Number:
PG-012
Contact Supplier Request Quote Chat Now
Shandong Famous Machine & Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JM
Model Number PG-012

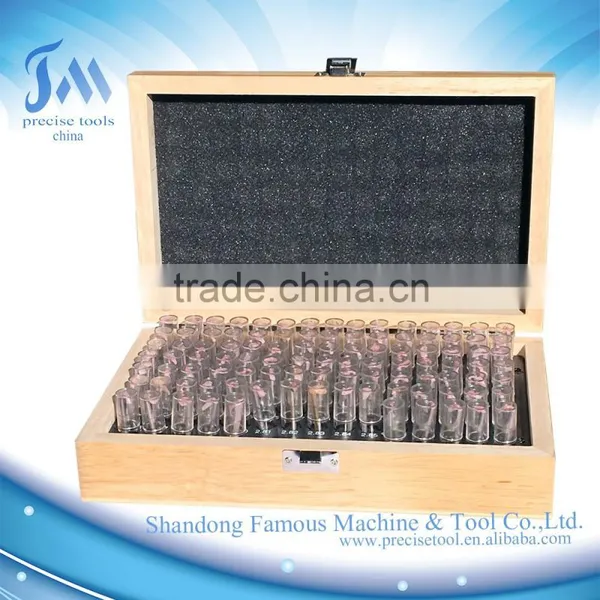

Model(minus) Model(plus)  Range  No. of gages
GP-M0M GP-M0P  0.011" to 0.060" 50
GP-M1M  GP-M0P  0.061" to 0.250"  190
GP-M2M GP-M0P  0.251" to 0.500"  250
GP-M3M GP-M3P 0.501" to 0.625" 125
GP-M4M   GP-M4P 0.626" to 0.750" 125
GP-M5M  GP-M0P 0.751" to 0.832" 82
GP-M6M GP-M1P 0.833" to 0.916"  84
GP-M7M  GP-M2P  0.917" to 1.000"  84



*when you order  pins gauge set,just tell us size,Minus or plus.





Plain Plug Gages Library Series

                  INCH LIBRARY SERIES

Model(plus)                              Model(minus)                                              Range                             No. of gages

GPS-M1-2p  GPS-M1-2M 0.061"to.500" 440
GPS-M1-4p  GPS-M1-4M   0.061"to.750" 690
GPS-M1-7p   GPS-M1-7M  0.061"to1.000" 940


Features: Plain Plug Gages DIN 2269

*Go(Plus) or No-Go(Minus)

*Gcr15 Steel : 60/62 HRC

*Accuracy :  ±0.002mm, ±0.001mm or±0.0005mm

*50mm Long

Uses:

*Checking locations

* Measuring hole sizes and depths



* Go and No-Go gauging

*Setting micrometers.

* Checking distances between holes.Pin GaugePin Gauge



Model No. Range  Step  No. of gages Model No. Range   Step   No. of gages
GM-00  0.30-1.00mm  0.01mm 71 GM-11 2.02-4.00mm  0.02mm  100
GM-01 1.01-2.00mm  0.01mm  100 GM-12   6.02-8.00mm  0.02mm 100
GM-02  2.01-3.00mm  0.01mm  100 GM-13   6.02-8.00mm  0.02mm 100
GM-03  3.01-4.00mm  0.01mm  100 GM-14  8.02-10.00mm 0.02mm 100
GM-04 4.01-5.00mm  0.01mm  100 GM-15   1.02-3.00mm  0.02mm 100
GM-05 5.01-6.00mm  0.01mm  100 GM-16    3.02-5.00mm 0.02mm 100
GM-06 6.01-7.00mm 0.01mm  100 GM-17   5.02-7.00mm 0.02mm 100
GM-07 7.01-8.00mm 0.01mm  100 GM-18   7.02-9.00mm 0.02mm 100
GM-08  8.01-9.00mm  0.01mm  100 GM-19   9.02-11.00mm 0.02mm 100
GM-09  9.01-10.00mm 0.01mm  100 GM-20   10.01-11.00mm 0.01mm  100
GM-10  0.30-2.00mm  0.02mm  86 GM-21 11.01-12.00mm  0.01mm  100
Pin Gauge
