ER collet , R8 collet, OZ collet, 5C collets ,TG collet ,SG Collet, Milling Chuck, Accuracy:0.005mm/0.008mm/0.01mm/ 0.015mmDear Sir,
Our factory ,located in the production base of machinery tool accessories of China , is specialized in ER collet series, ,milling chuck series ,tapping chuck series ,precision vise series, etc . we can supply the best quality and competitive price of products
We sincerely hope to establish business relationship with your esteemed corporation.
Here are size of products

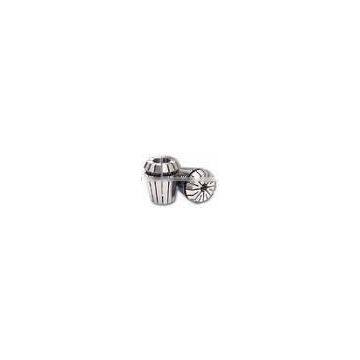

ER Collet
Material: 65Mn or 40Cr
Run out: 0.005mm, 0.008mm, 0.01mm, 0.015mm, 0.02mm
Standard: DIN6499
Application: Be used for clamping drill, end mill, reamer, taps etc.
| Model | Dimension(mm) | Weight (KGS) | Range | |
| D1 | L | |||
| ER8 | 8.5 | 13.5 | 0.005 | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5 |
| ER11 | 11.5 | 18.5 | 0.015 | 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 |
| ER16 | 17.0 | 27.0 | 0.025 | 0.5, 1.2, 3, 4, 5, 6, 7, 8, 9, 10 |
| ER20 | 21.0 | 31.0 | 0.045 | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 |
| ER25 | 26.0 | 35.0 | 0.065 | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
| ER32 | 33.0 | 40.0 | 0.125 | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20 |
| ER40 | 41.0 | 46.0 | 0.265 | 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26 |
| ER50 | 52.0 | 60 | 0.455 | 12, 14, 16, 18, 20, 22, 24, 26, 28, 32, 24 |
Collet | range |
| Material |
ER11 | 1.0-3.0 |
| 65Mn |
| 4.1-7.0 |
| 65Mn |
ER16 | 1.0-3.0 |
| 65Mn |
| 4.0-10.0 |
| 65Mn |
ER20 | 1.0-3.0 |
| 65Mn |
| 4.0-13.0 |
| 65Mn |
ER25 | 1.0-3.0 |
| 65Mn |
| 4.0-16.0 |
| 65Mn |
ER32 | 1.0-3.0 |
| 65Mn |
| 4.0-20.0 |
| 65Mn |
ER40 | 1.0-3.0 |
| 65Mn |
| 4.0-26.0 |
| 65Mn |
