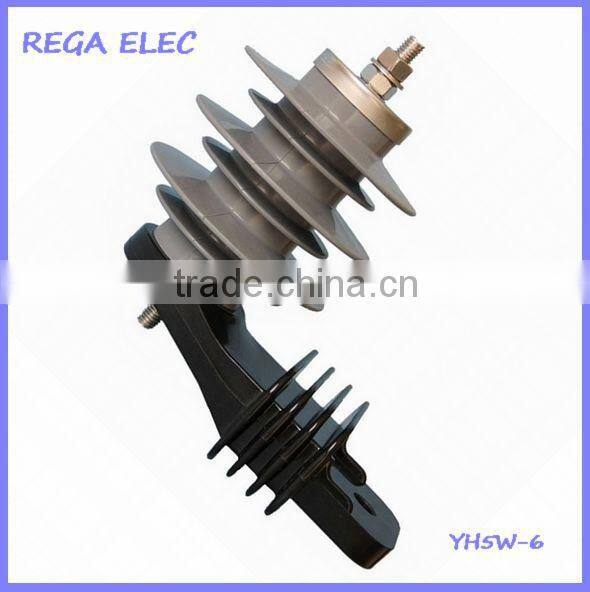

Metal -oxide surge arrester(Lightning arrster, polymer surge arrster)
Model: YH5W-6
Main Technical Parameter
Rated voltage r.m.s: 6kV
Nominal discharge current:5kA
Maximun continous operating voltage(Uc)(kV):5.1kV
Residual voltage at:
1/4μ s lightning current impulse residual voltage(kV):19.0
8/20μ s lighting current impulse residual voltage(kV):17.3
30/60μ s switching current impulse residual voltage(kV): 14.7
Long duration current impulse withstand:
2ms rectangular current(A):100
Operating duty:
4/10u s high current impulse(kA):65
Creepage distance(mm):180mm
Dimension:240*200mm
Export-oriented Lightning Arrester Technical Parameters
|
Type |
|
|
|
Current with stand |
Residual voltage |
|
H×B |
|||
|
2ms |
4/10us |
30/60us |
8/20us |
1/4us |
||||||
|
Rated voltage |
MCOV |
Nominal discharge current |
2ms rectanglar current impulse withstand |
4/10us high current impulse withstand |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse |
Creepage distance |
Size |
|
kV |
kV |
kA |
A |
kA |
kVp |
kVp |
kVp |
mm |
mm |
|

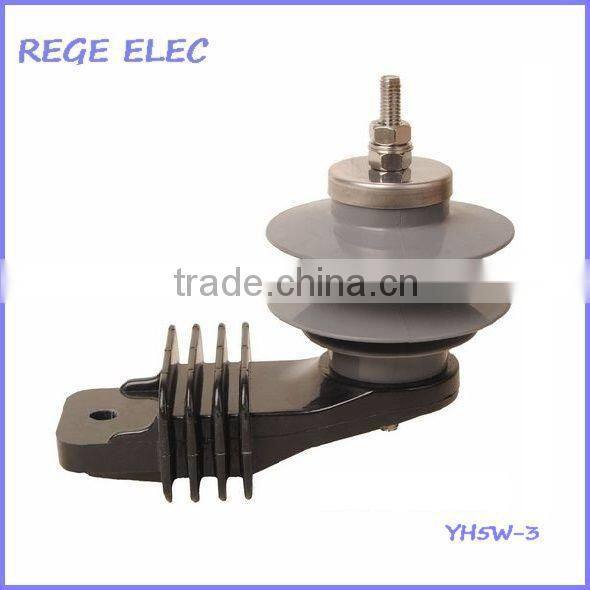

YH 5W-3 |
3 |
2.55 |
5 |
100 |
65 |
7.2 |
8.6 |
9.5 |
180 |
210×200 |
YH 5W-6 |
6 |
5.1 |
14.7 |
17.3 |
19.0 |
270 |
240×200 |
|||

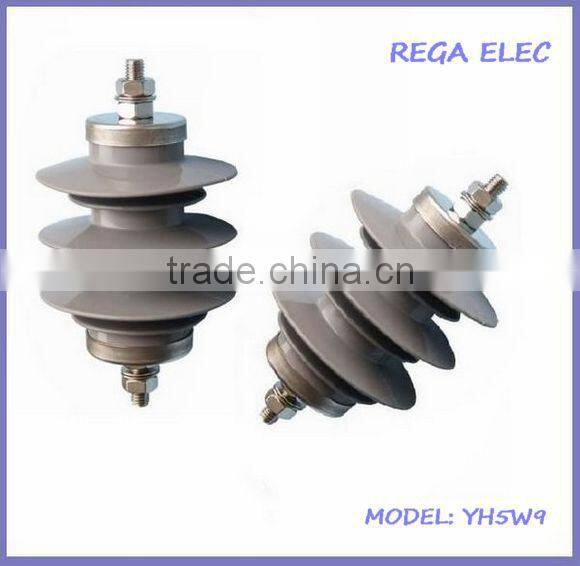

YH 5W-9 |
9 |
7.65 |
21.8 |
25.9 |
28.5 |
270 |
240×200 |
|||
YH 5W-12 |
12 |
10.2 |
29.1 |
34.6 |
38.1 |
360 |
270×200 |
|||
YH 5W-15 |
15 |
12.8 |
36.3 |
43.2 |
47.5 |
450 |
300×200 |
|||
YH 5W-18 |
18 |
15.3 |
43.5 |
51.8 |
57.0 |
540 |
330×200 |
|||
YH 5W-21 |
21 |
17.9 |
50.7 |
60.4 |
66.4 |
630 |
375×206 |
|||
YH 5W-24 |
24 |
20.4 |
58.1 |
69.1 |
76.0 |
720 |
405×206 |
|||
YH 5W-27 |
27 |
23 |
65.3 |
77.7 |
85.5 |
810 |
435×206 |
|||
YH 5W-30 |
30 |
25.5 |
72.5 |
86.3 |
95.0 |
900 |
465×206 |
|||
YH 5W-33 |
33 |
28.1 |
79.8 |
95.0 |
104.5 |
900 |
465×206 |
|||
YH 5W-36 |
36 |
30.6 |
87.0 |
103.6 |
114.0 |
990 |
495×206 |
|||
1. ISO9001 quality management system

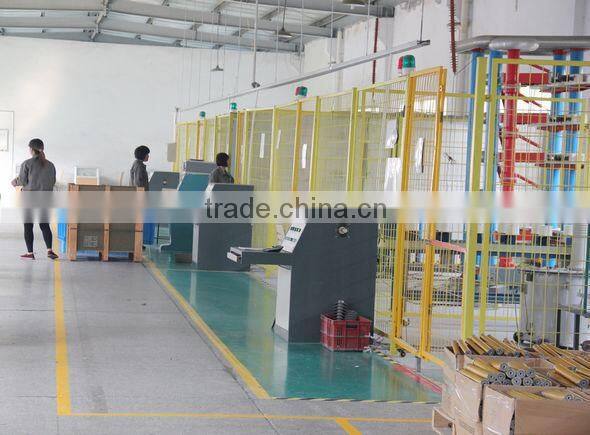

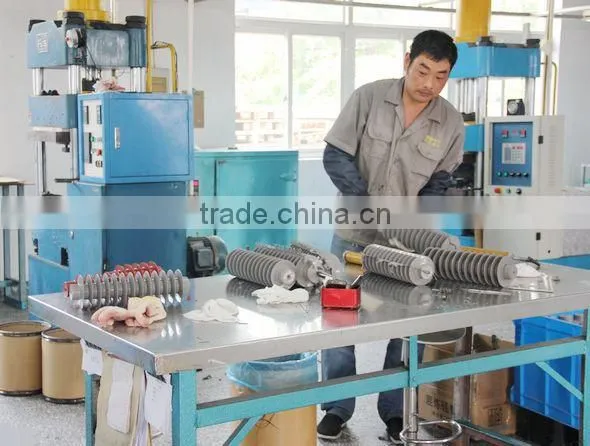

2. Own test laboratory
3.Accordding to IEC60099-4 and IEEE (ANSI) C62.11
4.Provide component
5. Any trial order in small quantity is welcomed
