12kV/36kV Porcelain Dropout Fuse, Electrical Fuse Cutout,
US$ 5 - 15
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REGA
Safety Standards:
IEC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12kV/36kV Porcelain Dropout FuseUS$ 7 - 15MOQ: 500 Pieces -
Lightning Arrester Bracket,with Disconnector,Model L01US$ 1 - 5MOQ: 1000 Pieces
-
Lightning Arrester Bracket,with Disconnector,Model XL02US$ 1 - 5MOQ: 1000 Pieces
-
Isulating Bracket for Surge Arrester,with Disconnector,Model L03US$ 1 - 5MOQ: 1000 Pieces
-
Isulating Bracket for Lighting Arrester,with Disconnector,Model L03US$ 1 - 5MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
REGA
Safety Standards
IEC
Specifications
1. Standard: IEC282-2, ANSI/ IEEE C37.41, GB/T15166.3
2. ISO9001:2008.

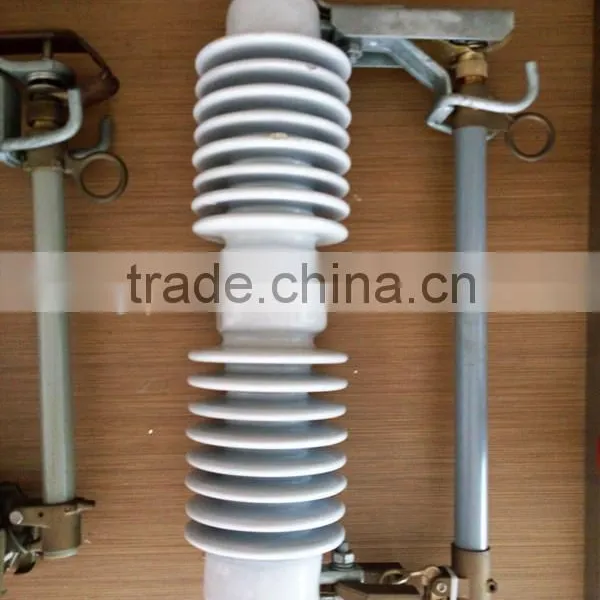

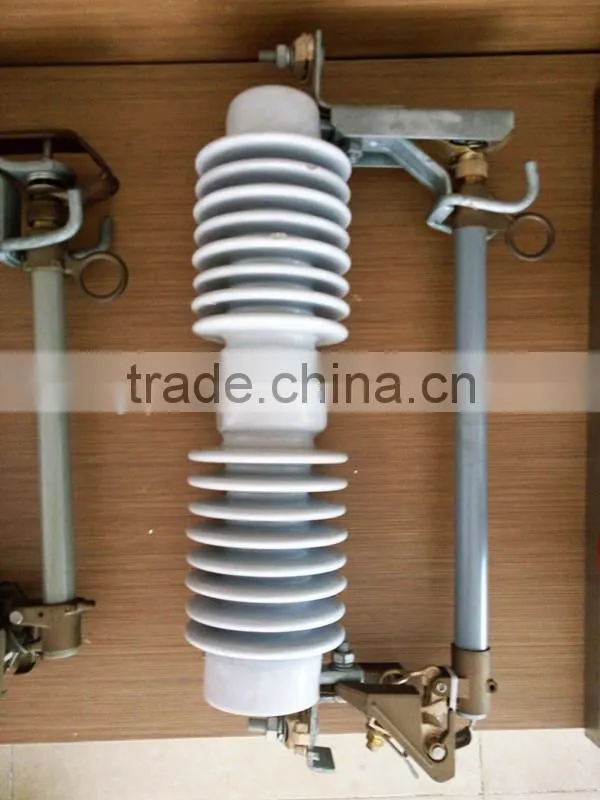

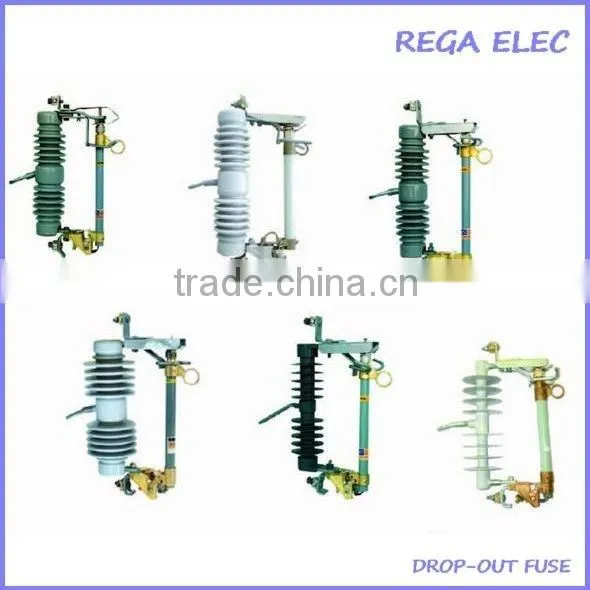

Fuse Cutout with Porcelain Base is mainly used to protect distribution lines and transformers against overload and short-circuit damage. It can also be an overhead disconnection switch with the use of a portable load-break tool. The fuse cutout is developed to fit common service conditions and applications and it has passed the type test of KEMA lab.
Drop-out Fuse Technical Parameters
|
Rated voltage |
Breaking current |
Impulse voltage |
Breaking current |
Power-frequency voltage |
Crawling distance |
|
15 |
100 |
8000 |
110 |
42 |
280 |
200 |
10000 |
110 |
42 |
280 |
|
|
18 |
100 |
8000 |
125 |
45 |
320 |
200 |
10000 |
125 |
45 |
320 |
|
|
24 |
100 |
8000 |
125 |
50 |
460 |
200 |
10000 |
125 |
50 |
460 |
|
|
27 |
100 |
8000 |
150 |
65 |
530 |
200 |
10000 |
150 |
65 |
530 |
|
33 |
100 |
8000 |
170 |
70 |
660 |
36 |
100 |
8000 |
200 |
70 |
720 |
