CHEAP!!! PVC Coated iron wire/electro galvanized iron wire/hot dip galvanized iron wire factory supplier
Iron Wire specifications
Wire Gague |
#8-22# |
Diameter |
0.1—4mm |
Tensile Strenght |
300—1500N/MM2 |
Zinc Coating |
7—600g/m2 |
Material |
low carbon steel wire rod, mild carbon steel wire rod, medium carbon steel wire rod stainless steel wire rod |
||
Related product |
electro galvanized wire, hot dipped galvanized wire, PVC wire,loop tie wire, black annealed wire, tie wire, binding wire, wire, U type, drawn wire, black iron wire, stainless steel wire, wire, metal wire |
||
Feature |
Strong breaking strength, softness, hard to rust, easy to bend |
||
Surface Treatment |
Black annealed, galvanized, Electro galvanized, Hot dip galvanized, |
||
Uses |
Tie wire , Bailing wire, Binding wire, Free cutting steel and etc. |
||
Producing Precedure |
drawing, annealing, decompounding, straightening, cutting,ring bending, galvanizing, coating, spool |
||
Packing |
0.5kg-50kg/coil ,10coil/bundle, In coil line with wax paper or PVC stripes, wrapped with hessian cloth or as per customers' requirements. |
||

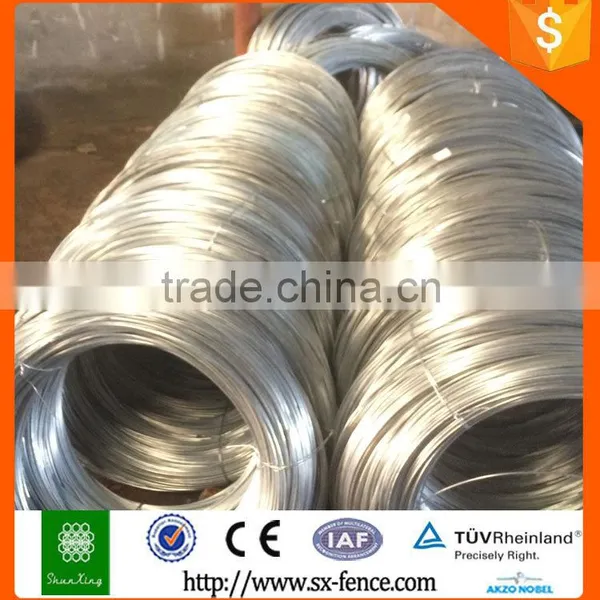

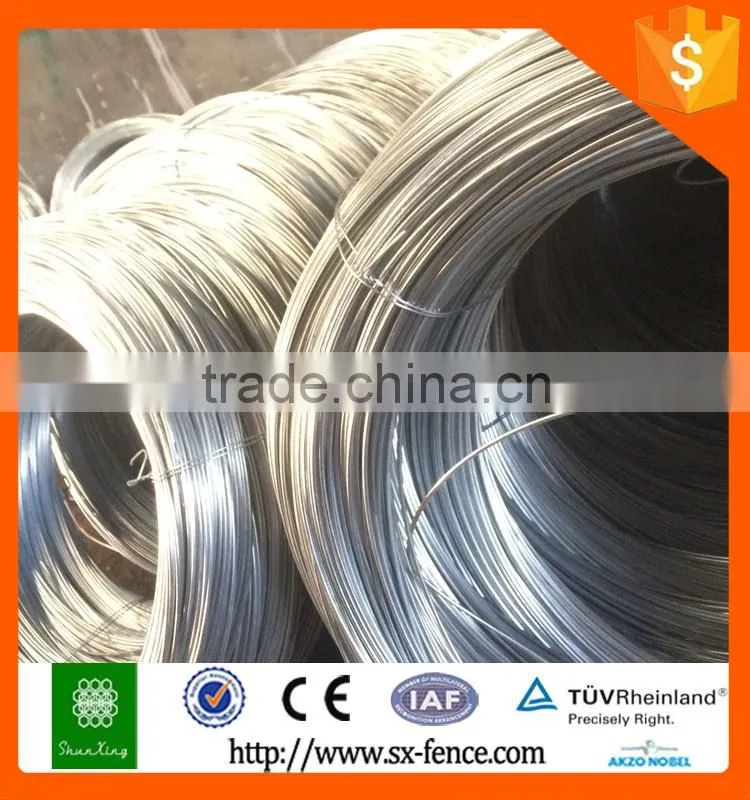

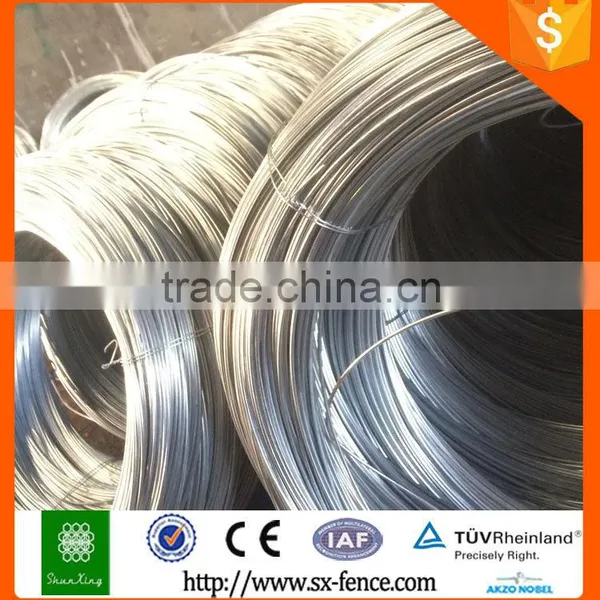

Galvanized Iron Wire

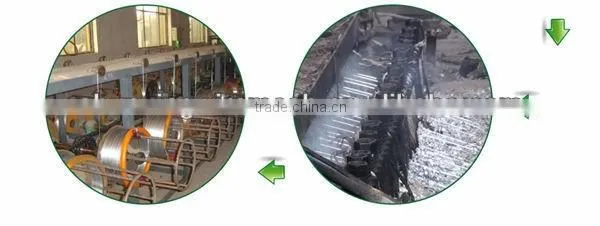

1.Produce of Galvanized Steel Wire
Steel rod coil-wire drawing-wire annealing-rust removing-acid wasting-boiling-drying-zinc feeding-wire coiling

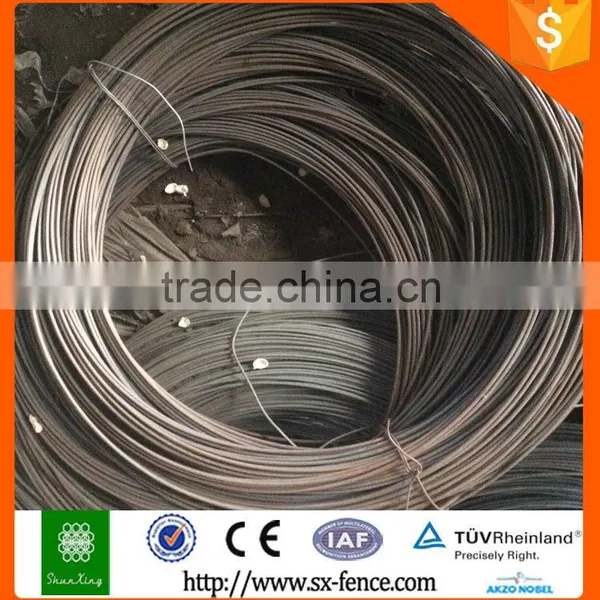

♦Wire Rod(low carbon steel, ISQ195, ASTM,SAE 1006/1008)
♦Wire Drawing(draw 6.5mm wire to 4.mm or other diameter, two types of drawing methods)
♦Annealing(wire go through the high temperature, improve T/S, preparation for the zinc coating)
♦Zinc coating(electro GI wire and hot-dipped GI wire, dealed with electro polish and high temperature. More zinc coating, the better resistance of corrosion)
♦Wire Coiling(Weight of coil/roll: 200kg, 100kg, 50kg, 25kg, 10kg, 2-8kg)
Galvanized iron wire is made with mild steel, hard-drawn, and then galvanized. It is rust-resistant, and very versatile in applications. Galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
Annealing is the key determinant of the wire T/S

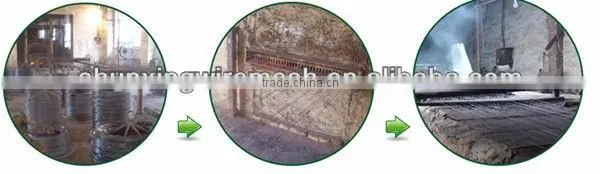

2.Processing of Galvanized Steel Wire
Hot dipped galvanized wire from choiced low carbon steel wire, through the strict process of Wire Drawing---Annealing---Acid Washing---Water Clearing---Drying---Galvanizing--Coiling, in this way, excellent flexibility and tensile strength could be guaranteed.
3.Technical and Mechanical Characters of Galvanized Steel Wire
Material: Q195/235 low carbon iron wire
Wire Diameter: 0.7mm-4.9mm
Zinc Coating: Commercial grade: 30-60grams/sq.m
Heavy coating: >=100grams<=300grams/sq.m
Tensile Strength: 350-550Mpa

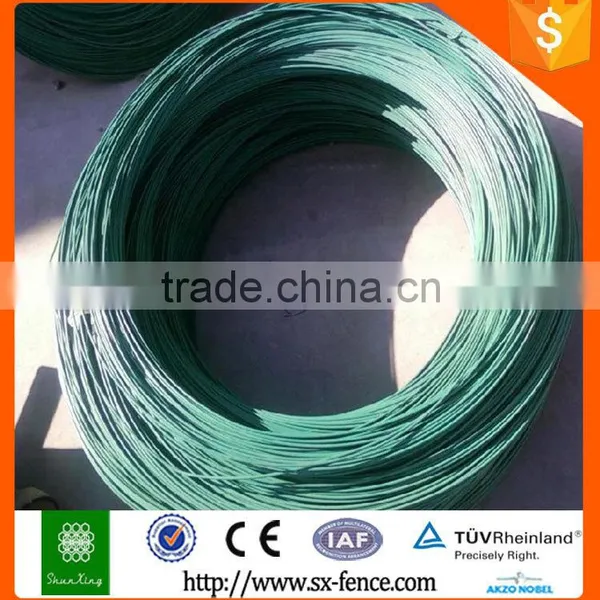

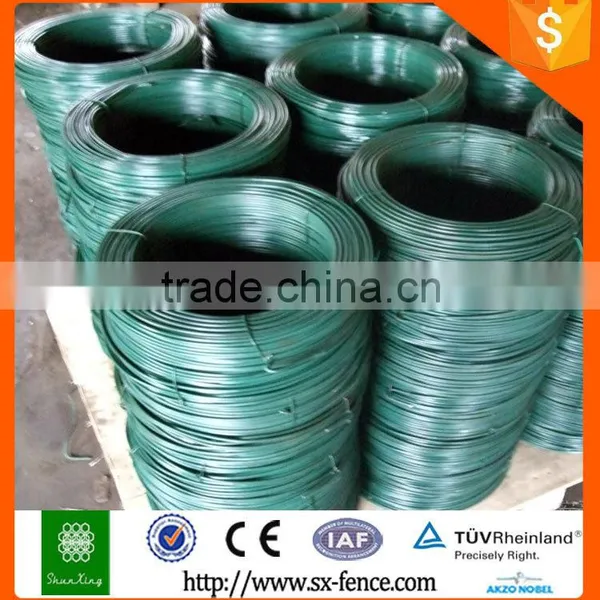

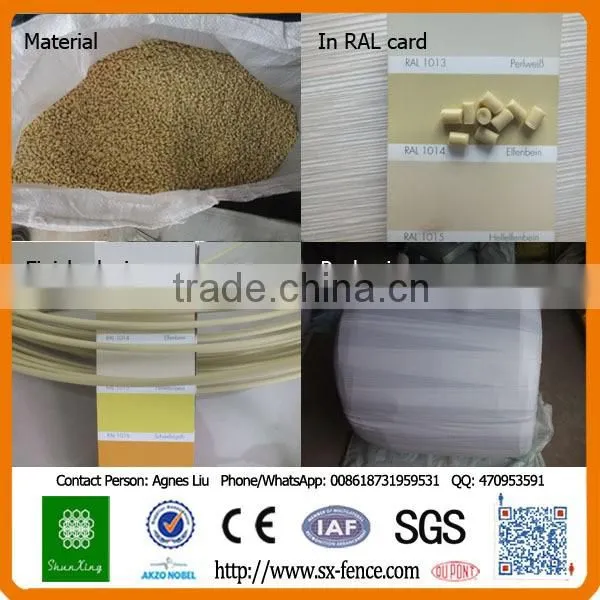

PVC Coated Gi Wire
pvc coated iron wire information
Product information: | |||

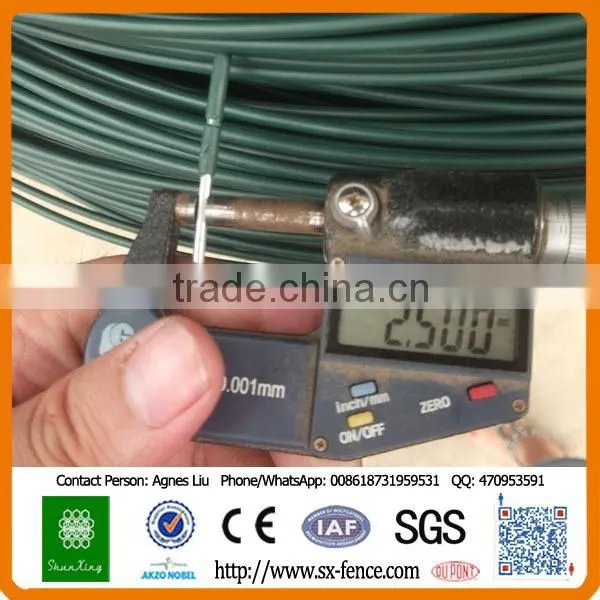

Core diameter |
0.6mm-4.0mm BWG 23-8 |
Outside diameter |
0.9mm-5.0mm BWG 20-7 |
Note: PVC coating, the lowest thickness 0.4mm Tensile strength: 30-75kg/mm2 | |||
Color:green ,blue,yellow ,black etc | |||
pvc coated iron wire For Hanger Specification
Diameter |
Outsourcing Diameter |
0.8mm |
1.2mm |
1.0mm |
1.4mm |
1.4mm |
2.0mm |
2.0mm |
3.0mm |
2.5mm |
3.5mm |
Note:PVC coating, the lowest coating is 0.3mm | |
Tensile strength:30-75kg/mm2 | |
Color: green, blue, yellow, orange, gray and so on. | |
PVC Coated gi Wire is manufactured with quality iron wire. PVC is the most popular plastic for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties.
Iron Wire Usage
Iron wire is widely used in manufacture screen, wire mesh fence, chain link fence, gabion net, etc to meet the high salt, damp, high acid, alkali, and high environmental requirements.

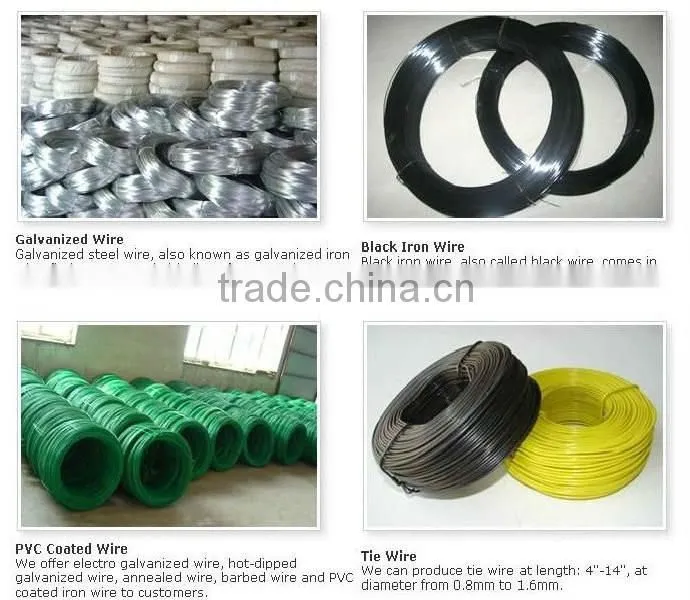

♦Here are some related products of our factory
We are the fence manufacturer of wire mesh fence, we also produce 358 fencing,temporary fence, welded wire mesh fence, double wire mesh fence, etc.
♦ 358 security fence
♦ temporary fence(Australia style)
♦ temporary fence, construction fencing(Canada style)

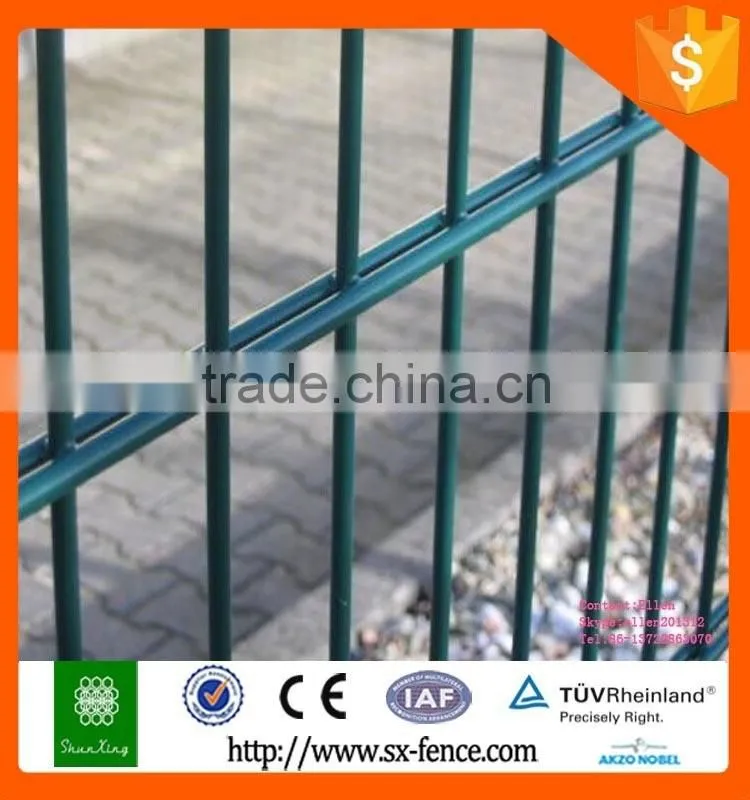

♦ Double wire fence
Weight of coil/roll: 200kg, 100kg, 50kg, 25kg, 10kg, 2-8kg

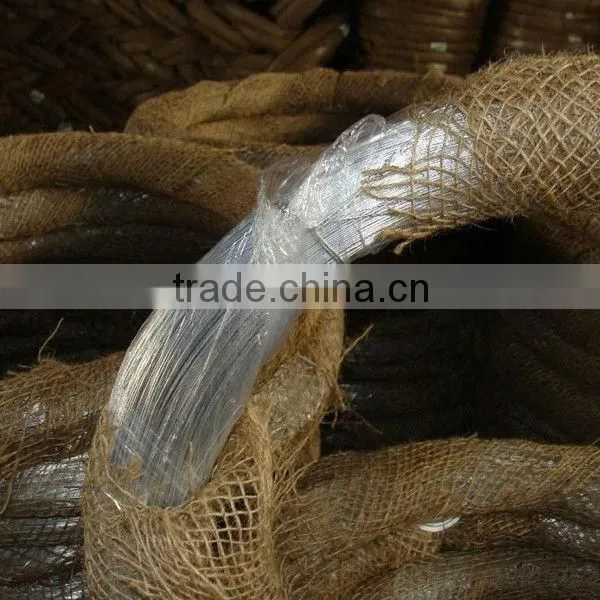

Packaging: Plastic film inside, Hessian or woven bag outside or as require

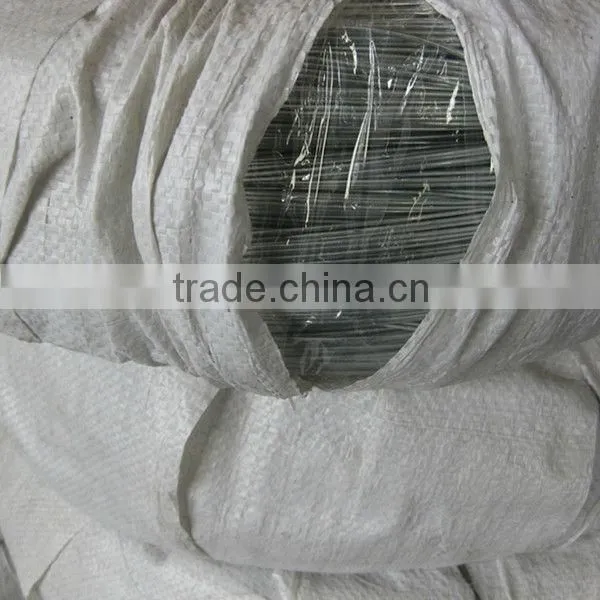

Inner with plasic film and outside with weaving bags
Inner with plastic film and outside with gunny

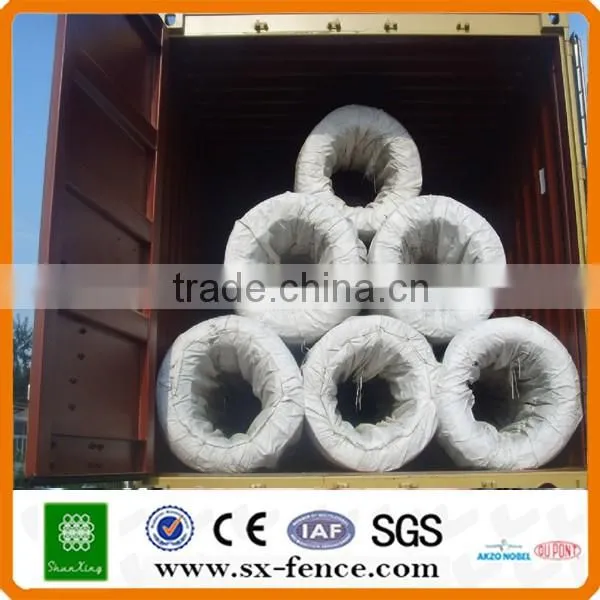

Container Shipping:
Anping Shengxin Metal Wire Mesh Fence Co.,Ltd is located in Anping---hometown of wire mesh in China. We specialized in various kinds of welded wire fence, fence gate, temporary fence, crowd control barrier etc. over 15 kinds of porducts.
Area: 20000m2
No. of Employees: 190 people
No. of QA/QC Inspector(s): 5 people
Export Markets: Europe, South America, Australian, North America, Asia etc.
Annual Revenue: USD10,753,650.00
Certificates: BV report, CE certificate, ISO9001 certificate, SGS certificate
♦1.Free sample for you!
♦2.Customer request is available!
♦3.Any question,please feel free to contact us.We can assure you,any of your comments will get our prompt reply.We will do our best to serve you
♦4.Our products are strictly follow ISO9001,SGS,CE and BV certificate.If any item do not meet your request,we will replace for your by free!
1).What is your payment term?
Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C st sight
2).What is your delivery time?
Delivery:15 days after we receive the deposit.
3).If the quality not meet my request, what can u do?
Refund all your money and compensate your additional loss.
4).Can you design and make as customers' request?
Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
