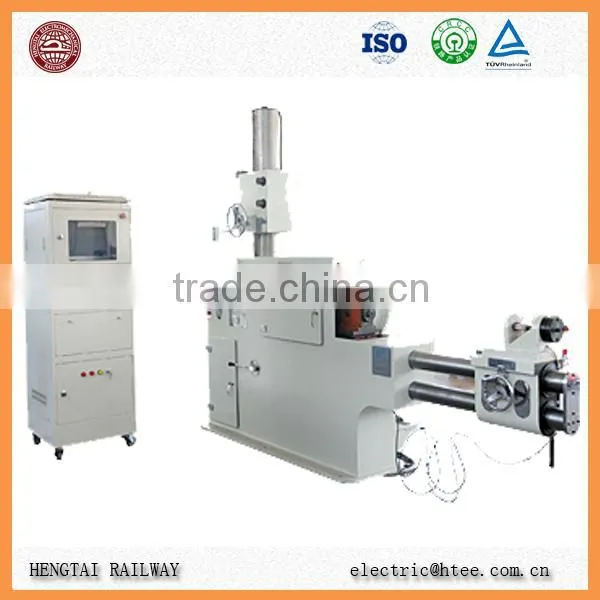

Oil Damper Test Stand for Test Damper in Railway

Name: Oil Damper Test Stand for Test Damper in Railway
Brand: HT-TSJS
SKU: 130513821

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Dimensions (L x W x H) (mm):

5000 *2280 *2200 mm

Brand Name:

HT-TSJS

Model Number:

JS30

Chongqing Hengtai Electromechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Dimensions (L x W x H) (mm) 5000 *2280 *2200 mm

Brand Name HT-TSJS

Model Number JS30

Oil Damper Test Stand for test damper in railway :

Introduction

The oil damper test stand is special maintenance equipment for oil damper, which can satisfy the test requirements

of various models of vertical and lateral oil dampers of railway rolling stock. The test stand passed technical review

of MOR in December 1998 and can carry out test on high-power oil damper of power car and locomotive.

The test stand has compact mechanical structure and is easy to install. Its electrical system is controlled by computer

and adopts frequency conversion stepless speed regulation technology, thus the test stand can set single or multiple

tests foroil damper. The test result can be saved, inquired and printed.

Test Items

1 The test stand can complete the F-S and F-V cureve drawing for vertical and lateral oil damper, and carry out related numerical tests.

2 The test stand can perform characteristic test for vertical and lateral oil damper under 0 to 3 Hz stepless regulating frequency.

3 The test range of vertical oil damper can be adjusted from 100 to 700mm and the test range of lateral oil damper can be adjusted f

rom 150 to 1200mm on the test stand which can meet the test requirement of vertical and lateral oil damper with various dimensions.

4 All kinds of mounting seats for connection are provided based on customer needs to enable the test stand to perform test on all

oil dampers at home and aboard.

Main Techinical Parameters

Power supply	Three-phase five-wire 380V, 10kW
Maximum damping resistance allowable to measure	35 kN
Reciprocating motion speed of slider	0 to 0.5 m / s
Adjustable eccentricity of slider	0 to 60 mm
Measured vertical damper range	100 to 600 mm
Measured lateral damper range	100 to 1500 mm
Force sensor accuracy	± 0.05% FS
Displacement sensor accuracy	± 0.1% FS
Dimensions (L × W × H)	5000 × 2280 × 2200 mm
Total mass	3100kg
