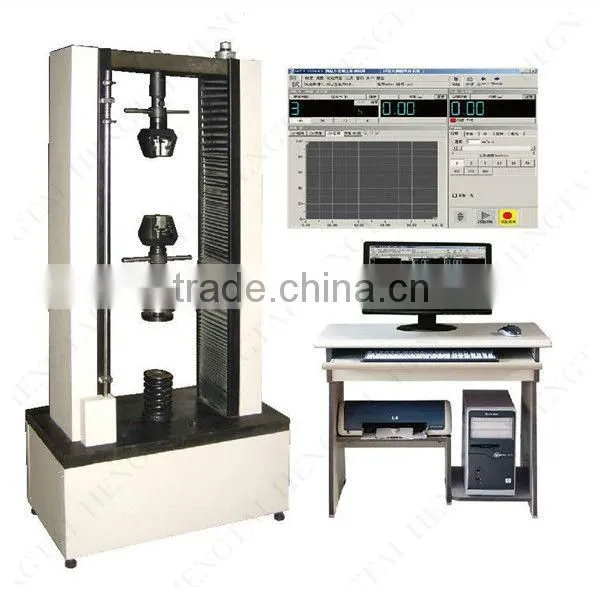

50KN-200KN Spring Tester For Coil Spring

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Dimensions (L x W x H) (mm):

1350mm*6750*2150(L*W*H)

Place of Origin:

Chongqing, China

Model Number:

TCD-C-50-200KN

Chongqing Hengtai Electromechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port China

Delivery Detail:

Delivery time depends on order quantity.

Dimensions (L x W x H) (mm) 1350mm*6750*2150(L*W*H)

Place of Origin Chongqing, China

Model Number TCD-C-50-200KN

Specifications

1.High strength and accuracy
2.Supplier for Railways

Main functions:

-Automatic reset: testing force, displacement, can be reset at any time

-Stepless setting: adopt AD&DSP technology, 200000 resolution.

-Automatic calibration: it can realize automatic testing force calibration.

-Controlling methods: testing force, testing speed, displacement and etc.

1)Set testing force at P to measure displacement F of spring

2)Set displacement at F to measure testing force P

3)Set testing force at p to measure the remained height H of spring

4)Set remained height of spring at H to measure testing force F

5)Max. 10 testing point (available in return)

6) Deformation of spring is subject to touch spring by compression plate, at this time you can see load. Initial Load can be setted by you.

7)The consequence caused by distortion of load cell and mainframe can be compensated.

Main Configuration

No.	Name	model	quantity
1	50KN portal frame High intensity main unit	TCD-C-50KN	1set
2	Embedded measuring and controlling system(TCD-2000)		1set
3	AC servo motor		1 set
4	AC servo motor controlling system		1set
5	Toothed belt drive line system		1set
6	High precision spokes load sensor		3 pieces
7	Ball screw assembly		1set
8	Displacement sensor (grating)		1set
9	Plate	Hard alloy steel pressure plate	1set
10	Drag hook		1set
11	Protective device		1set
12	Data interface system		1set
13	TCE 2000 testing software		1set
14	Computer	Mainstream configuration,liquid crystal	1set
15	HPA4 color ink-jet printer		1set
