Railway coaches use connector with power :
Introduction:
It is used in air conditioning equipment of railway, locomotive vehicle,city railway vehicle centralized control system.
The connection type is directly push-pull type fast connection.
The contact type between contact element and wire end : Cool pressure connection terminal( contact element can be loading and unloading by single.
Specification:
environment temperature:-50℃~70℃.
relative humidity:90±3%(when temperature is 25℃)
related current:∅2.5-25A, ∅3.5-40A
related voltage:AC 500v
insulation resistance:≥500MΩ
contact resistance:≤2mΩ
withstand voltage:≥2000v 50Hz AC
level of protection: IP65
mechanical life:≥1500

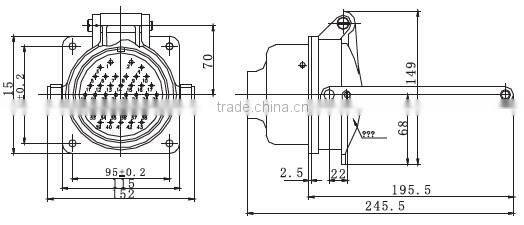

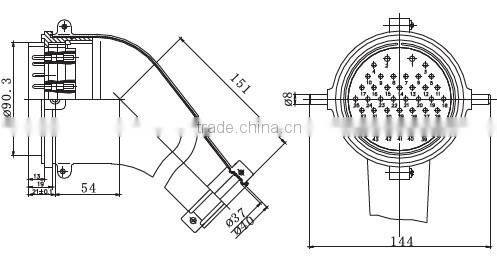

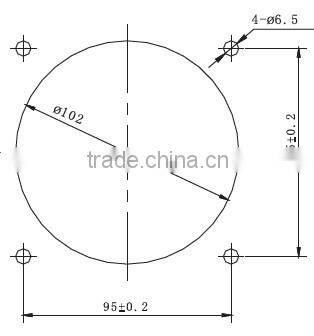

outside size:
The related connector for railway:
The parts and package:
The factory picture:
