Product Details
| Material | Steel | Place of Origin | Chongqing, China | |
| Model Number | SC20 |
Product Description
Broadcast coupling used in communication device :
Introduction:
It is used in railway, locomotive vehicle,city railway vehicle and industry equipment automatization electric control system.
The connection type is directly push-pull type fast connection.
Contact element struction: Elastomer and cylinder type.
The contact type between contact element and wire end : Cool pressure connection terminal
Suitable standard: GB/T25023-2010.
Specification:
environment temperature:-50℃~70℃.
relative humidity:90±3%(when temperature is 25℃)
altitude:≤2500m
related current:100A
related voltage:DC 48v
insulation resistance:≥500MΩ
contact resistance:≤2mΩ
withstand voltage:≥1500v 50Hz AC
level of protection: IP33
mechanical life:≥1500
wire: 10mm2

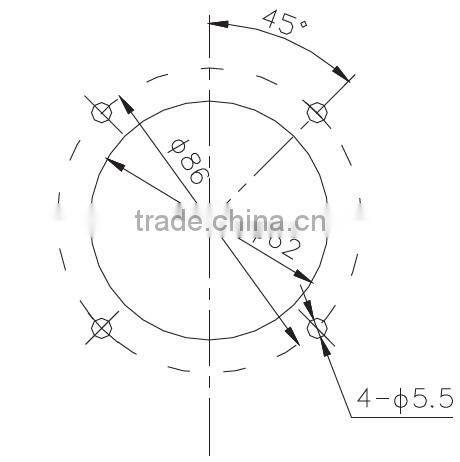

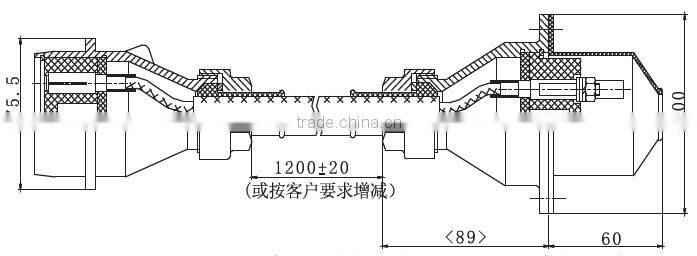

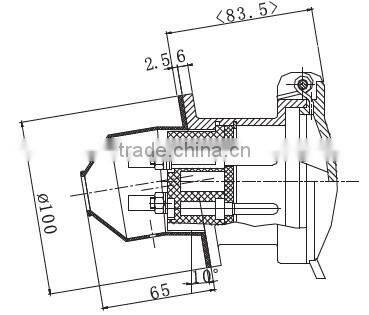

outside size:
The related connector for railway:
The connector parts and package:
The factory pictures:
