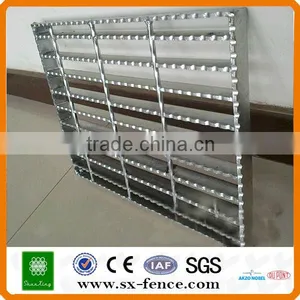

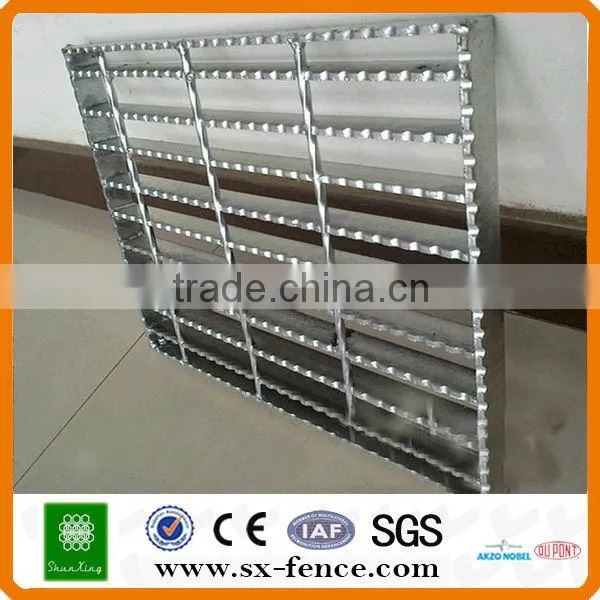

Certified and ISO9001 high tensile steel grating

Specifications

high tensile steel grating
Plain,Serrated,I-BAR
application :well lid,petrochemical industry
high tensile
multi-functions

 high tensile steel grating



We produce three kinds of steel gratings, they are welded grating,floor grating, with Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.



No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007,  USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987,  Australia: AS1657-1985, Japan:JIS



 high tensile steel grating





Company profile

Anping County Shunxing Hardware Wire Mesh Co., Ltd.

Location : Wire Mesh Land of China-Anping

Foundation : established in 1992, registered in 2006

Products : Wire Mesh and Wire Mesh Fence, Barbed wires and other related products.

Standard : ISO9001:2008

Reputation:we have won markets and got customers' good reputations.



Our Advantages



1.ISO9001:2008 ,CE , SGS ,BV

2.Our own production lines

3.8 yearsofexperiencein foreign trade export

4.First-class technical staff and advanced equipments

5.We use world-famous Akzo and Dupont plastic spraying powder
