Company information
We produce three kinds of steel gratings, they are welded grating,floor grating, with Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's
requirements.
No. |
Item |
Description |
1 |
Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
2 |
Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
3 |
Twisted Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
4 |
Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
5 |
Surface Treatment |
Black, self colour, hot dip galvanized, painted, spray coating |
6 |
Grating Style |
Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
7 |
Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS |
metal steel grating panel

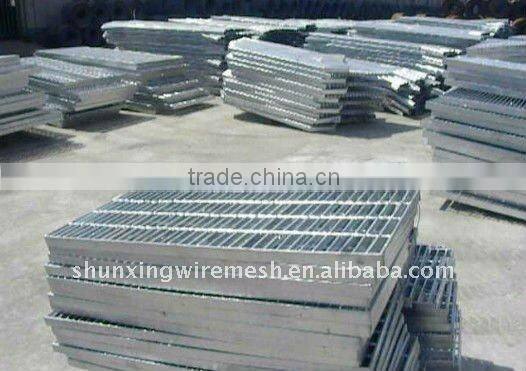

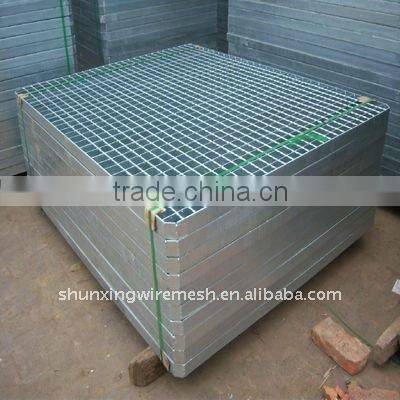

Packing of stronger metal steel grating
Company profile
Anping County Shunxing Hardware Wire Mesh Co., Ltd.
Location : Wire Mesh Land of China-Anping
Foundation : established in 1992, registered in 2006
Products : Wire Mesh and Wire Mesh Fence, Barbed wires and other related products.
Standard : ISO9001:2008
Reputation:we have won markets and got customers' good reputations.
Our Advantages
1.ISO9001:2008 ,CE , SGS ,BV
2.Our own production lines
3.8 yearsofexperiencein foreign trade export
4.First-class technical staff and advanced equipments
5.We use world-famous Akzo and Dupont plastic spraying powder
