DC Solar Submersible Pump
- 100 Set / Sets per Month
- SHANGHAI
- Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | GT | Model Number: | GTSP-12/24 |
Theory: | Other, submersible solar pump | Structure: | Diaphragm Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Solar power |
Pressure: | Low Pressure | Application: | Submersible |
Product Description
The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins.
Parameters:
Pump Design | Positive Displacement 3 Chamber Diaphragm Pump |
Motor | Permanent Magnet, Thermally Protected |
Voltage | 24VDC Nominal |
Amps | 4.0A Maximum |
Internal Bypass | 105-110PSI Max.(7.2-7.5 Bars) |
Maximum Lift | 230 feet Maximum (70 Meters) |
Maximum Submersion | 100 Feet Maximum (30 meters) |
Outlet Port | 1/2'' (12.7mm) Barbed Fitting |

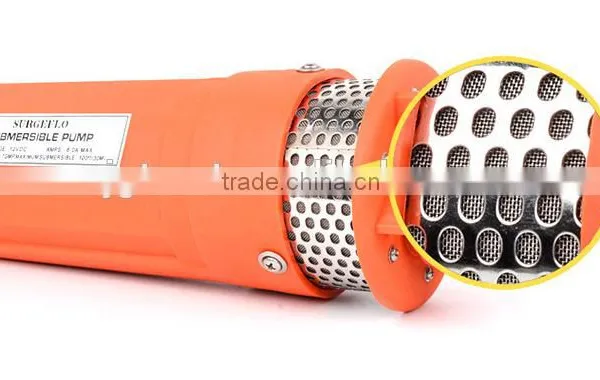

Inlet: | 50Mesh Stainless Seel Screen |
Materials | High Strength Engineered Plastics,Stainless Steel Fasteners |
Typical Applications | Potable Water Well Pump |
Features:
1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9. Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)
10. Outlet Port: 1/2" (12.7mm) Barbed Fitting
11. Inlet: 50 Mesh Stainless Steel Screen
12. Material: High Strength Engineered Plastic
Application:
Packaging
Carton Package.
Packing Size: 355*130*110mm
*N.W./G.W.: 2.9/3.0kgs
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 7workdays for samples; 15 workdays for batch goods.
