Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > 500W Movable Solar Power System

500W Movable Solar Power System

500W Movable Solar Power System thumbnail-3

500W Movable Solar Power System thumbnail-4

500W Movable Solar Power System thumbnail-5

500W Movable Solar Power System thumbnail-6

US$ 648 - 766 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

ISS500Z-A

Contact Supplier Request Quote Chat Now

Zhangjiagang Great-Trust Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name GT

Model Number ISS500Z-A

Specification Normal

Application Commercial

Output Voltage (V) 110/120/220/230VAC

Load Power (W) 500W

Solar Power (W) 200W

Work Time (h) 24 Hours

Product Description

Movable Solar Power System 500W 800W 1000W

Movable power system is an all-in-one machine which includes solar inverter, solar battery, and charge controller, battery cabinet and solar modules. It can be applied to the villa, household, outdoor camping, tourist resorts, prairie areas, remote mountain village, no power supply areas, farms, villages, farm, hills, island, highway and any regions to generate electricity. Use very widely. It can charge led lamps, cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in 5VDC/12VDC/110VAC/220VAC/230VAC 50Hz/60Hz.

1. Product Features:

Environmental protection: solar product does not produce pollutants, without noise; create a green, clean, comfortable living environment.

Convenience: easy to install & operate, without the laying of cables, or destruction of building structures. Small & light, portable design, easy to carry.

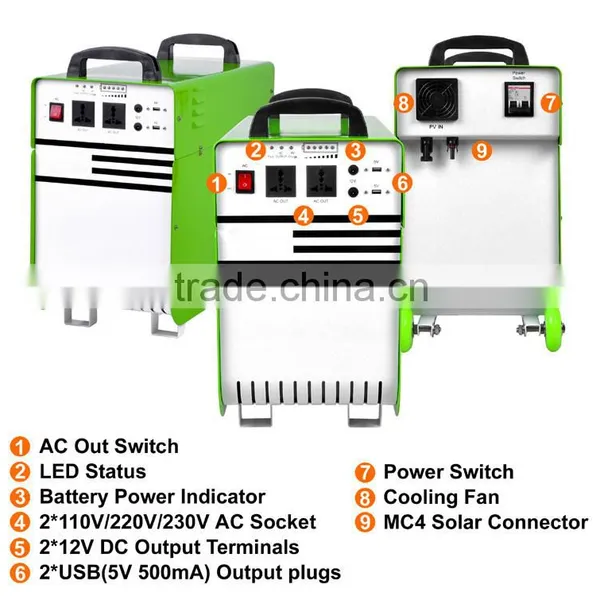

2. Main Functions:

1. Built-in inverter, controller and battery
2. LED working condition
3. LED indicator of battery capacity
4. Overload protection
5. Short circuit protection
6. Reverse discharge protection
7. Reverse polarity connection protection
8. Over discharge protection
9. Over charge protection
10.AC and DC output.

11.Suitable for household lighting, TV, fan, radio, computer and so on. Not suitable for capacitive load, as electric motor, refrigerator, air conditioning, microwave and ovens.

3. Products guarantee

Main machine guarantee time: 2 years limited warranty (lifetime: more 10years)

Battery guarantee time: 1 year (Lifetime: 5-6years)

Solar panel guarantee time: 5 years (lifetime: around 25years, 90% output power at first 10 years, 80% output power at second 10 years)

4. Technical Data:

Model	ISS500Z-A	ISS800Z	ISS1000Z
System Specification:
Rated Output power	500W	800W	1000W
Solar Panel Power	18V 200W	36V 100W	36V 200W
Solar Panel charging	5hours	6hours	5hours
Lead-acid Battery Capacity	12V 120Ah	12V 35Ah*2	12V 55Ah*2
Solar Inverter	500W Pure sine wave inverter	800W pure sine wave inverter	1000W pure sine wave inverter
Solar Controller	12V20A	24V 20A	24V 20A
AC output	AC 110V/220V/230V 50Hz/60Hz
DC Output	DC 212V&25V USB(500mA)
Overload Protection	Yes	Yes	Yes
Overvoltage Protection	Yes	Yes	Yes
Overheat Protection	Yes	Yes	Yes
Short-circuit Protection	Yes	Yes	Yes
Battery Power Indicator	Yes	Yes	Yes
External Battery Charger	Yes	Yes	Yes
Peak Inverter Efficiency	92%	92%	92%
External Battery	Yes(12V)	Yes(12V)	Yes(12V)
Accessories (Optional)	Solar panel connectors (optional)
Certificate	CE & RoHS
Mechanical Data:
System Box(mm)	L575W255H490	L575W255H490	L575W255H490
System Box(kg)	14.5	14.5	14.5
Appearance Color	White + Green	White + Green	White + Green
Solar Panel (mm)	L1580W808H35	L1120W678H35	L1580W808H35
Solar Panel (kg)	14.5	12.5	14.5
Battery (mm)	L406W173H237	L196W130157	L228W137H207
Battery (kg)	35	2*12	2*14

5. Loads and working time reference:

Product Model		ISS500Z-A	ISS800Z	ISS1000Z
Electric Appliances & load power		Duration of single load
LED Lights	5W * 4	About 46.5H	About 27.5H	About 43H
CFL	11W * 10	About 8.5H	About 5H	About 8H
Incandescent bulb	75W * 4	About 3H	About 1.8H	About 2.8H
29" LCD TV	150W	About 6.5H	About 3.7H	About 5.5H
Freezer	150W	About 6.5H	About 3.7H	About 5.5H
Fan	60W * 3	About 5.5H	About 3H	About 5H
Washer	350W	About 2.7H	About 1.6H	About 2.5H
Desktop computer	150W * 2	About 3.5H	About 1.8H	About 2.8H
Note: Different location, different charging time. Above load power is rated output power: the actual power is much smaller. Some home appliances like incandescent bulb, the actual power is same as rated power; but the TV and computers the actual power is much smaller than the rated power.
