250W Mono Solar Panel
- 300 Piece / Pieces per Month
- shanghai
- Credit Card
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | NULL | Model Number: | SL220-20M250 |
Material: | Monocrystalline Silicon | Size: | 1640*992*45mm | Number of Cells: | 60pcs |
Max. Power: | 250W, 250W |
Product Description

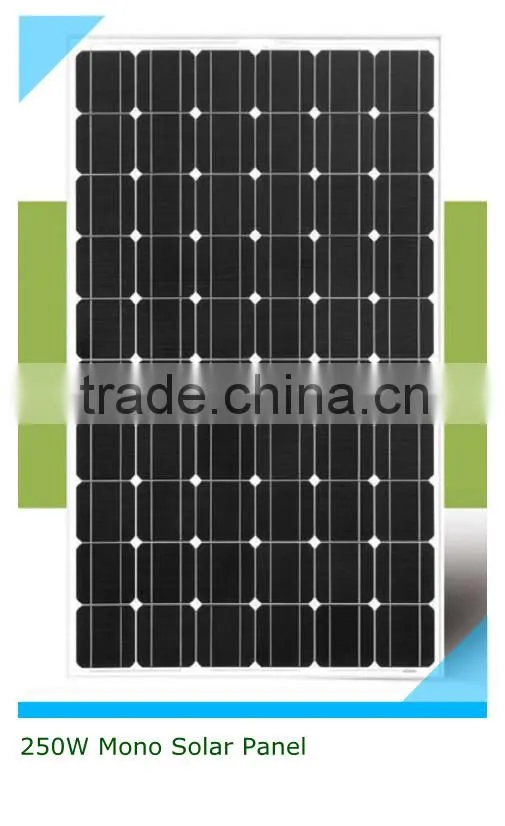

250W Mono Solar Panel
Feature:
- High and stable conversion efficiency based on over 10 years professional experience;
- High reliability with guaranteed 0~+3% output power tolerance;
- Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple configuration;
- Combination of high efficiency and attractive appearance;
- ISO9001:2008(Quality Management System) certified factory;
- IEC61215,Safety tested IEC61730,CE;
- 25 year output power warranty;
- Product Quality Warranty&Product Liability Insurance guarantee end users' benefit.
Temperature Coefficients:
NOCT | 45±2℃ | |||||
Voltage temperature coefficient(Voc) | -0.36%/℃ | |||||
Current temperatre coefficient(Isc) | +0.033%/℃ | |||||
Power temperature coefficient(Pmpp) | -0.44%/℃ | |||||
Minimum power tolerance | ±3% |
Mechanical Data:
Solar Cell | 60(6*10) Mono-crystalline 156*156mm | |||||
Front Glass | 3.2mm temperd | |||||
Frame | Anodized aluminium |
Electrical Data:
Module type | SL220-20M250 | |||
Nominal peak power(Wp) | 250W | |||
Nominal voltage(Vmp) | 30.5V | |||
Nominal current(Imp) | 8.20A | |||
Open-circuit voltage(Voc) | 37.3V | |||
Short-circuit current(Isc) | 8.79A | |||
Module efficiency | 15.4% | |||
Operating temperature | -40~+85℃ | |||
Maximum system voltage | 1000VDC | |||
Net weight | 19kg | |||
Dimension | 1640*992*45mm |
Structure:

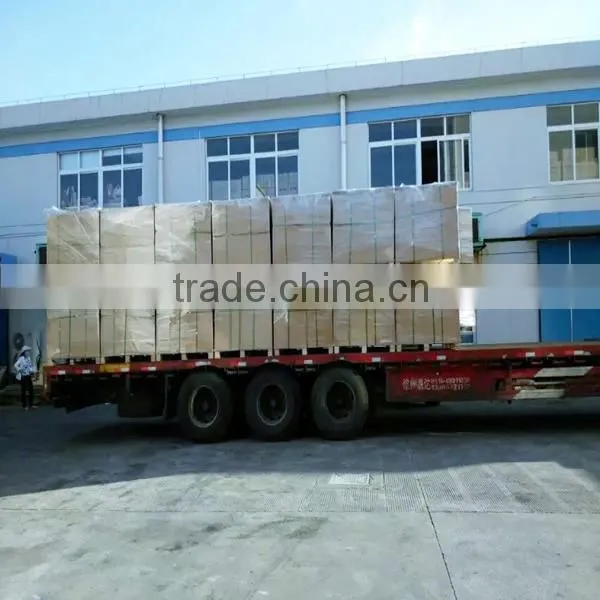

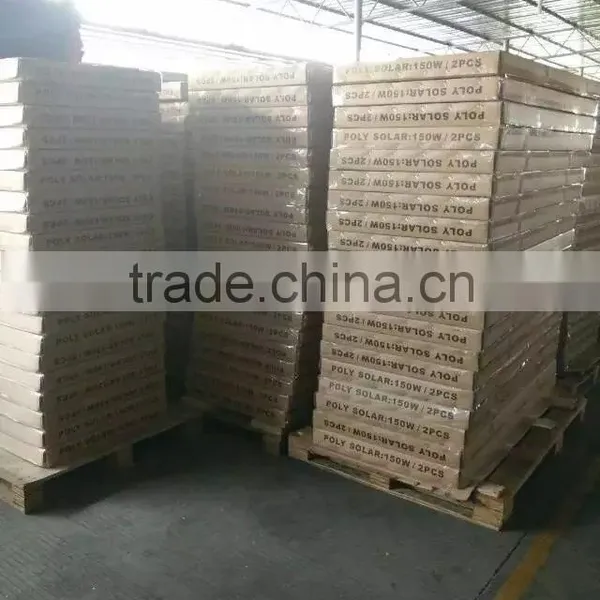

Packing
Carton/Wooden Package
1. We are Alibaba Assessed Gold Supplier,Popular Supplier.
2.100% QC inspection Before Shippment.
3. CE certificated,competitve price.
4. 7*24 online EMAIL service!
Zhangjiagang Great-Trust New Energy Technology Co., Ltd.
Add: Petroleum Mansion, Food Street 1,Zhangjiagang City, Jiangsu,P.R. of China
Tel: +86 51258978702 Fax: +86 51258978703 Mobile: +86 18021230698(Mr.Jack)
Q1.Are you a factory or trading company?
We have two modern factory. We have 120 factory workers and 10 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
GT take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3. All products have a warranty?
Yes, we supply 1 to 25 years warranty for our products. You will be satisfied with our quality.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping, and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
