Home > Products > Solar Panel > 190W Mono Solar Panel

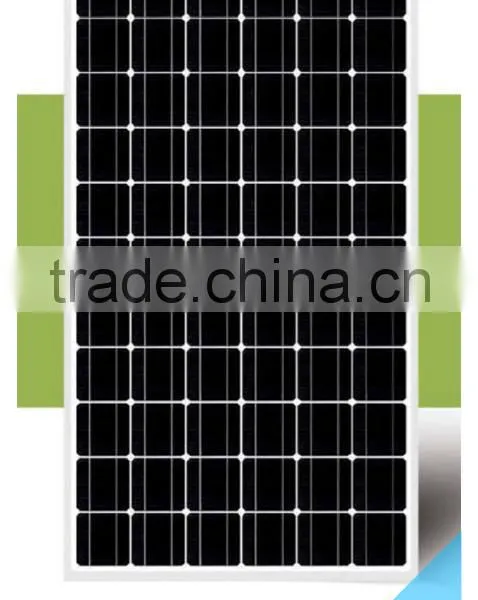

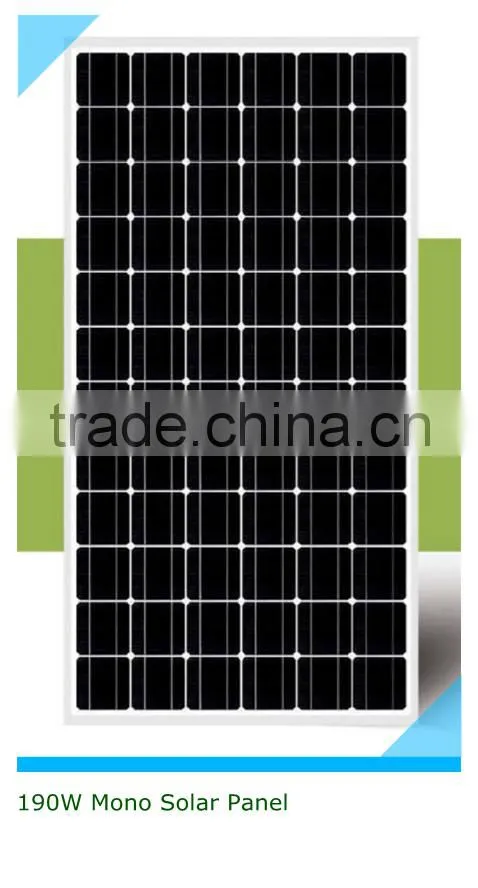

190W Mono Solar Panel
USD $93.1 - $106.4
/ Piece
10 Pieces(Min.Order)
- 500 Piece / Pieces per Month
- SHANGHAI
- Credit Card
You May Like
-
12V Portable Mini Air Pump
-
DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light
Quality Choice
-
Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
-
12V Heavy Duty Plastic Shell Air Compressor with Light
-
12V Mini Heavy Duty Plastic Shell Air Compressor Price
-
12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | NULL | Model Number: | SL180--24M190 |
| Material: | Monocrystalline Silicon | Size: | 1580*807*35mm | Number of Cells: | 72pcs |
| Max. Power: | 190W |
Product Description
Product Description
190W Mono Solar Panel
Feature:
- High and stable conversion efficiency based on over 10 years professional experience;
- High reliability with guaranteed 0~+3% output power tolerance;
- Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple configuration;
- Combination of high efficiency and attractive appearance;
- ISO9001:2008(Quality Management System) certified factory;
- IEC61215,Safety tested IEC61730,CE;
- 25 year output power warranty;
- Product Quality Warranty&Product Liability Insurance guarantee end users' benefit.
Temperature Coefficients:
| NOCT | 45±2℃ | |||||
| Voltage temperature coefficient(Voc) | -0.36%/℃ | |||||
| Current temperatre coefficient(Isc) | +0.033%/℃ | |||||
| Power temperature coefficient(Pmpp) | -0.44%/℃ | |||||
| Minimum power tolerance | ±3% | |||||
Mechanical Data:
| Solar Cell | 72(6*12) Mono-crystalline 125*125mm | |||||
| Front Glass | 3.2mm temperd | |||||
| Frame | Anodized aluminium | |||||
Electrical Data:
| Module type | SL180-24M190 | |||
| Nominal peak power(Wp) | 190W | |||
| Nominal voltage(Vmp) | 36.2V | |||
| Nominal current(Imp) | 5.25A | |||
| Open-circuit voltage(Voc) | 45.4V | |||
| Short-circuit current(Isc) | 5.44A | |||
| Module efficiency | 14.9% | |||
| Operating temperature | -40~+85℃ | |||
| Maximum system voltage | 1000VDC | |||
| Net weight | 15kg | |||
| Dimension | 1580*807*35mm | |||
Structure:
Certification:
Packaging & Shipping
Packing
Carton/Wooden Package
Shipping
1. FedEx/DHL/UPS/TNT for small module samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5workdays for samples; 15 workdays for batch goods.
Our Services
1. We are Alibaba Assessed Gold Supplier,Popular Supplier.
2.100% QC inspection Before Shippment.
3. CE certificated,competitve price.
4. 7*24 online EMAIL service!
Company Information
Zhangjiagang Great-Trust New Energy Technology Co., Ltd.
Add: Petroleum Mansion, Food Street 1,Zhangjiagang City, Jiangsu,P.R. of China
Tel: +86 51258978702 Fax: +86 51258978703 Mobile: +86 18021230698(Mr.Jack)
Contact Us
- Zhangjiagang Great-Trust Import & Export Co., Ltd.
- Contact nameJian Du
- Phone0086-512-58978702
- Address606, Petroleum Mansion, No. 1, Food Street, Yangshe Town
