135W Mono Solar Panel

135W Mono Solar Panel thumbnail-1
135W Mono Solar Panel photo-1
US$ 64.8 - 74.25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
NULL
Model Number:
SL110-12M135
Contact Supplier Request Quote Chat Now
Zhangjiagang Great-Trust Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name NULL
Model Number SL110-12M135
Material Monocrystalline Silicon
Size 1483*665*35mm
Number of Cells 36pcs
Max. Power 135W

Product Description

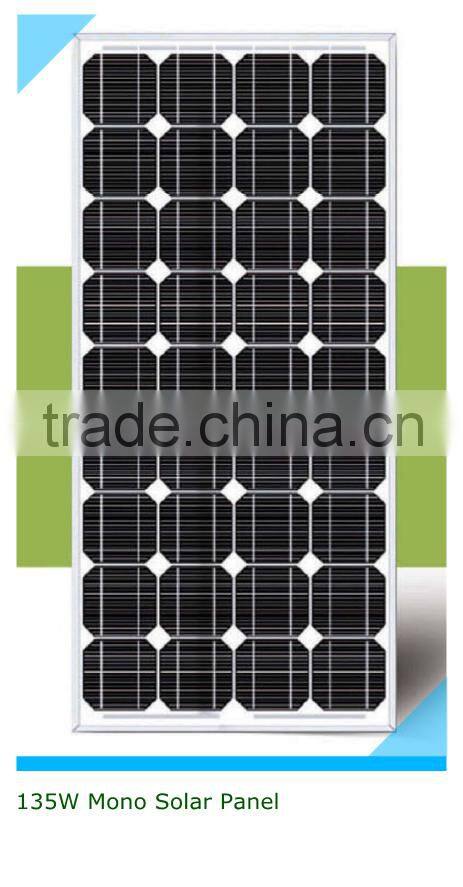

 135W Mono Solar Panel

135W Mono Solar Panel



Feature:

  • High and stable conversion efficiency based on over 10 years professional experience;
  • High reliability with guaranteed 0~+3% output power tolerance;
  • Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple configuration;
  • Combination of high efficiency and attractive appearance;
  • ISO9001:2008(Quality Management System) certified factory;
  • IEC61215,Safety tested IEC61730,CE;
  • 25 year output power warranty;
  • Product Quality Warranty&Product Liability Insurance guarantee end users' benefit.

Temperature Coefficients:



NOCT 45±2℃
Voltage temperature coefficient(Voc) -0.36%/℃
Current temperatre coefficient(Isc) +0.033%/℃
Power temperature coefficient(Pmpp) -0.44%/℃
Minimum power tolerance ±3%









Mechanical Data:

Solar Cell 36(4*9) Mono-crystalline 156*156mm
Front Glass 3.2mm temperd
Frame Anodized aluminium



Electrical Data:

Module type  SL110-12M135
Nominal peak power(Wp) 135W
Nominal voltage(Vmp) 17.2V
Nominal current(Imp) 7.85A
Open-circuit voltage(Voc) 21.6V
Short-circuit current(Isc) 8.19A
Module efficiency 13.7%
Operating temperature -40~+85℃
Maximum system voltage 1000VDC
Net weight 12kg
Dimension 1483*665*35mm

Structure:

135W Mono Solar Panel

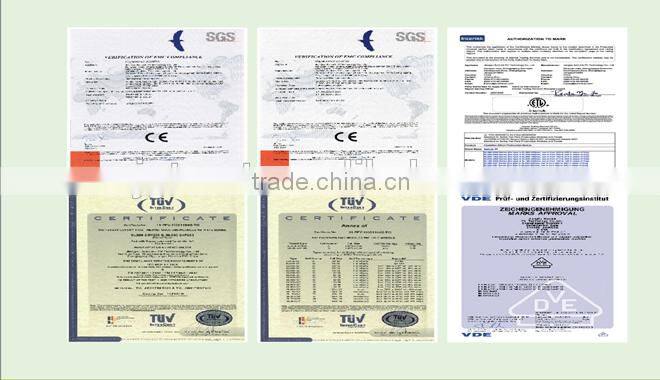

Certification:
135W Mono Solar Panel135W Mono Solar Panel

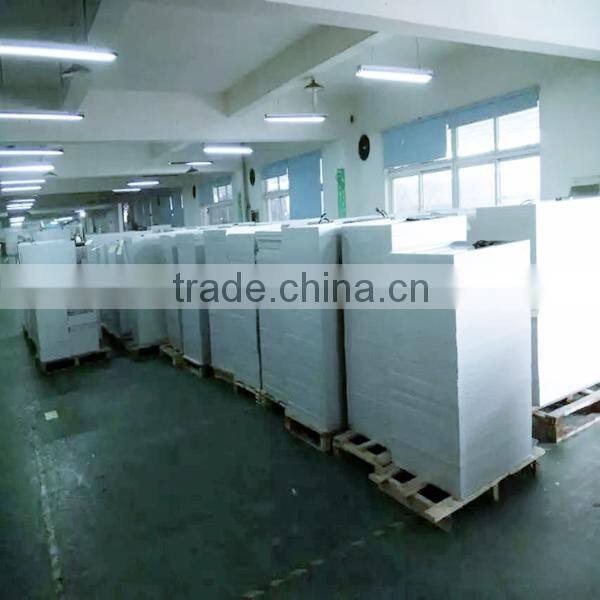

Packaging & Shipping

Packing

Carton/Wooden Package

Shipping
1. FedEx/DHL/UPS/TNT for small module samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5workdays for samples; 15 workdays for batch goods.

 135W Mono Solar Panel135W Mono Solar Panel135W Mono Solar Panel



Our Services

1. We are Alibaba Assessed Gold Supplier,Popular Supplier.

2.100% QC inspection Before Shippment.

3. CE certificated,competitve price.

4. 7*24 online EMAIL service!

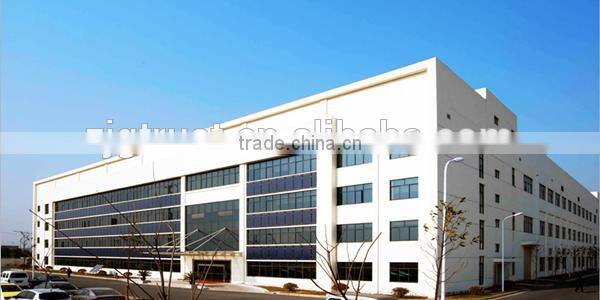

Company Information



135W Mono Solar Panel135W Mono Solar Panel135W Mono Solar Panel135W Mono Solar Panel

Zhangjiagang Great-Trust New Energy Technology Co., Ltd.
Add: Petroleum Mansion, Food Street 1,Zhangjiagang City, Jiangsu,P.R. of China

Tel: +86 51258978702  Fax: +86 51258978703  Mobile: +86 18021230698(Mr.Jack)
