Help Center50W Poly Solar Panel
US$ 21 - 26
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
NULL
Model Number:
SL050P-12
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
NULL
Model Number
SL050P-12
Material
Polycrystalline Silicon
Size
660*600*35mm
Number of Cells
36pcs
Max. Power
50W

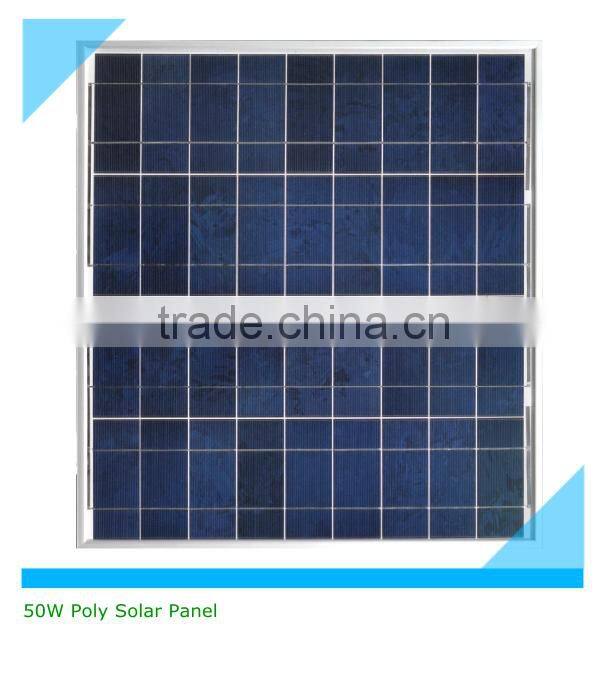

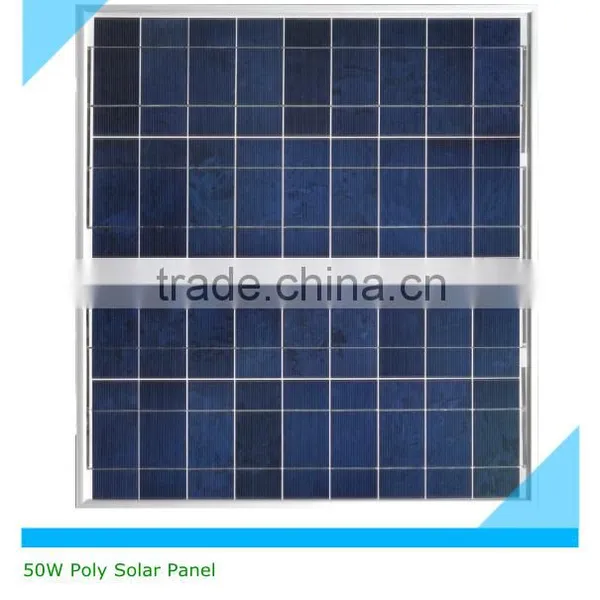

50W Poly Solar Panel
Feature:
- High and stable conversion efficiency based on over 10 years professional experience;
- High reliability with guaranteed 0~+3% output power tolerance;
- Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple configuration;
- Combination of high efficiency and attractive appearance;
- ISO9001:2008(Quality Management System) certified factory;
- IEC61215,Safety tested IEC61730,CE;
- 25 year output power warranty;
- Product Quality Warranty&Product Liability Insurance guarantee end users' benefit.
Temperature Coefficients:
| NOCT | 45±2℃ | |||||
| Voltage temperature coefficient(Voc) | -0.36%/℃ | |||||
| Current temperatre coefficient(Isc) | +0.033%/℃ | |||||
| Power temperature coefficient(Pmpp) | -0.44%/℃ | |||||
| Minimum power tolerance | ±10% | |||||
Mechanical Data:
| Solar Cell | 36(4*9) Poly-crystalline 156*58mm | |||||
| Front Glass | 3.2mm temperd | |||||
| Frame | Anodized aluminium | |||||
Electrical Data:
| Module type | SL050P-12 | |||
| Nominal peak power(Wp) | 50W | |||
| Nominal voltage(Vmp) | 17.5V | |||
| Nominal current(Imp) | 2.86A | |||
| Open-circuit voltage(Voc) | 22.0V | |||
| Short-circuit current(Isc) | 3.17A | |||
| Module efficiency | 12.6% | |||
| Operating temperature | -40~+85℃ | |||
| Maximum system voltage | 1000VDC | |||
| Net weight | 4.8kg | |||
| Dimension | 660*600*35mm | |||
Structure:
Certification:
Packaging & Shipping
Packing
Carton/Wooden Package
Shipping
1. FedEx/DHL/UPS/TNT for small module samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5workdays for samples; 15 workdays for batch goods.
Our Services
1. We are Alibaba Assessed Gold Supplier,Popular Supplier.
2.100% QC inspection Before Shippment.
3. CE certificated,competitve price.
4. 7*24 online EMAIL service!
