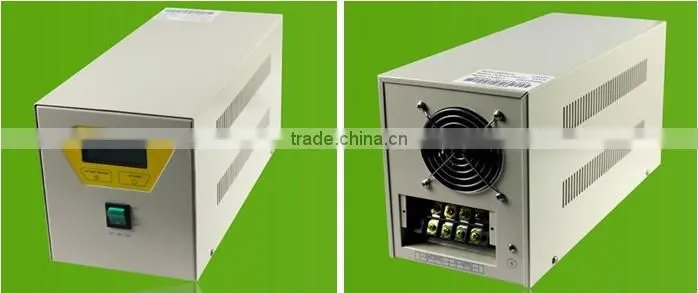

Help Center600VA Off-Grid Single Phase Pure Sine Wave Inverter
Related Products
-
500VA Off-Grid Single Phase Pure Sine Wave InverterUS$ 250 - 360MOQ: 1 Set -
300VA Off-Grid Single Phase Pure Sine Wave InverterUS$ 200 - 280MOQ: 1 Set
-
3000VA Off-grid Three Phase Pure Sine Wave InverterUS$ 880 - 1,080MOQ: 1 Piece
-
5000VA Off-grid Three Phase Pure Sine Wave InverterUS$ 1,280 - 1,580MOQ: 1 Piece
-
10KVA Off-grid Three Phase Pure Sine Wave InverterUS$ 2,280 - 2,580MOQ: 1 Piece
Specifications
1 Simple structure design with powerful function2 LCD display
3 Pure sine wave output
4 Perfect protection
5 Meet CE
1.Introduction
The pure sine wave inverter, which is developed by our company, is an intelligent device of converting DC power into stable AC power,providing effective power supply for traffic inconvenience,the harsh environment of the mountain area, a pasturing area, border, islands and other areas without electricity.
With decent appearance, easy operation, and visual indication of LCD, the inverter has automatic AC voltage stabilizing output and perfect protection function, high efficiency, andlow no-load loss.
2.Performance Features
Intelligentized, modularized, simple structure design with powerful function.
Frequency toroidal transformer ensures that inverter has high efficiency and low no-load loss.
Core components adopt SCM to control, which makes the circuit structure simple, and the control method and control strategy more flexible.
Perfect protection and alarming function, thus the system has a high stability.
LCD display function, visually display battery voltage and other status parameters.
Pure sine wave output, compared with square wave or modified wave, has higher efficiency and higher capability of driving load.
3. Certification
European CE certification
4. Technical Data
Product Model |
GTI06-24 |
Rated Output Capacity |
600VA |
Rated Battery Voltage |
24VDC |
Over Voltage Shutoff |
34VDC |
Over Voltage Recovery |
33VDC |
Under Voltage Shutoff |
21.6VDC |
Under Voltage Recovery |
24VDC |
No-load Loss |
≤0.7A |
Net Weight |
12kg |
Dimensions (Lx W x H) |
402×163×202mm |
Output Wave |
Pure sine Wave |
Display Mode |
LCD |
Cooling |
Fan |
Rated Output Voltage |
110/120/220/230/240 VAC |
Wave Distortion |
≤4% |
Output Frequency |
50/60 Hz±0.5Hz |
Dynamic Response |
5% |
Power Factor |
≥0.8 |
Over-load Capacity |
120% 1min,150% 10s |
Invert Efficiency |
90% Max |
Isolating Mode |
Toroidal Transformer |
Noise(1m) |
≤40dB |
Insulating Strength |
1500VAC,1min |
Protection Functions |
Input over voltage protection, Battery under voltage protection,
Battery anti-reverse connection protection, Output overload protection,
Output short circuit protection, Over temperature protection.
|
Ambient Temperature |
-20~55°C |
Working Altitude |
≤4000m |
Ambient Humidity |
0~90%,Without Condensation |
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |
Declare: Our company reserves the right to change products. Design and specification are subject to change without prior notice.
5. Optional Functions
By-pass function
Optional Light-control and time-control function
