China supplier Top quality hot dipped galvanized palisade fence for sale
Anping County ShunxingHardware Wire Mesh Co.,Ltd
| ◊.Company profiles: | ◊.Company culture: | ||||||||||||||||
|
|
||||||||||||||||
|
|
The specification of hot dipped galvanized palisade fence for sale
|
Fence Height(mm) |
Pale Profile Sections 'D' (mm) |
Pale Profile Sections 'W' (mm) |
Horizontal Rails Angle Section (mm) |
IPA Section(mm) |
Length (mm) |
Support feet per bay |
1800 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2400 |
2 |
2000 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2625 |
2 |
2100 |
3 |
2.5 |
45x45x6 |
98 x 55 |
2725 |
2 |
2400 |
3 |
2.5 |
45x45x6 |
98 x 55 |
3125 |
2 |
3000 |
3 |
2.5 |
50x50x6 |
98 x 55 |
3925 |
2 |
hot dipped galvanized palisade fence for sale
1> Pales
| The pale of hot dipped galvanized palisade fence for sale | |
| Width | 65-70mm |
| Thickness | 2.0-3.0mm |
| Head | single point, triple point |
| Finishing | galvanized and polyester powder coated or hot dipped galvanied |
| Height | 1.2m-3.0m |
| Amount | 17pcs/set |
2> Rail
| The rail of hot dipped galvanized palisade fence for sale | |
| Size | 50x50mm, 40x40mm (Angle Iron) |
| Thickness | 5.0-6.0mm |
| Holes | with 19 holes drilled on one edge side |
| Finishing | galvanized and polyester powder coated or hot dipped galvanied |
| Length | 2.7m |
| Screw Size | M8 |
3> type of pale:
|
|
4> Post
| Post of hot dipped galvanized palisade fence for sale | |
| H Post Size | 100x68mm, 100x55mm, 120x74mm |
| Square Post Size | 60*60mm, 80*80mm |
| Thickness | 3.5mm-5.00mm |
| Finishing | galvanized and polyester powder coated or hot dipped galvanied |
| Head | cut sharp |
| Height | on the basis of pale height (1.2-3.0m) |
5> Application & colors:

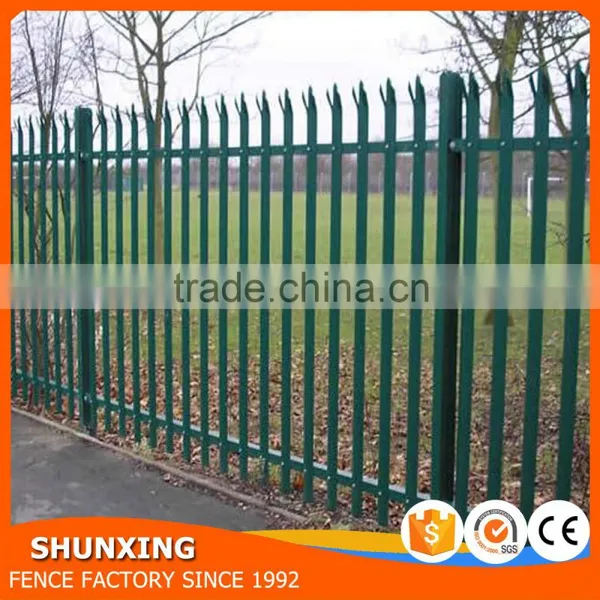

A standard hot dipped galvanized palisade fence for sale is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17 vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals which are supported by 102 x 44 joist posts.
More products for you to choose:
Welcome your free contact:
♥ - - 24 hours online service.
♥ - - Best pre-sale & after-sale service.
♥ - - 15 days after receiving the deposit shipment.
♥ - - We will choose the shipping company with good service and low price for you.
♥ - - Loading goods: We will track all the way, to ensure product safety, quick to arrive at the designated port.
♥ - - Arrival of goods: We will provide installation instructions and subsequent technical guidance.
♥ - - Company for products and accessories, for a long time to be able to provide various products accessories at cost to the customer at any time.
( China supplier Top quality hot dipped galvanized palisade fence for sale)
