60A 48V MPPT SOLAR CONTROLLER

60A 48V MPPT SOLAR CONTROLLER thumbnail-1
60A 48V MPPT SOLAR CONTROLLER photo-1
US$ 108 - 158 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Great-Trust
Model Number:
GT60A
Contact Supplier Request Quote Chat Now
Zhangjiagang Great-Trust Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Great-Trust
Model Number GT60A
Application Charger Controller
Rated Voltage 48V

Specifications

1. Intelligent design xuccint structure.
2. Powerful control
3. Stable performance
4. Safe and reliable
5. High efficiency

Technical Parameters

model

30A

40A

50A

60A

30A

40A

50A

60A

Rated voltage

24V

48V

Component power

720

960

1200

1440

1500

2000

2500

2800

charging

charging (A)

30

40

50

60

30

40

50

60

Even charge protection

28.8V±1%

57.6V±1%

floating Charge

27.6V±1%

55.2V±1%

Even charge recover

26.4V±1%

42.8V±1%

Temperature Compensation

-48mV/°C

Over Discharge

Shut off

21.8V±1%

43.6V±1%

Resume

24.6V±1%

49.2V±1%

Over voltage

Shut off

32.0V±1%

64.0V±1%

Resume

30.0V±1%

60.0V±1%

No-load Current

≤0.1A

Voltage drop

≤0.5V

Control mode

Maximum power point tracking-MPPT (charging efficiency higher 30% than the ordinary type PWM)



Display

LCD

Show parameters

voltage,charge current,battery volumetric

Protected type

Lightning protection, solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection,

Heat emanation way

radiator

Working Temperature

-35°C~+55°C

Height

≤5500m(2000m above the need to reduce power use)

Environment humidity

0~90%,No condensation

Net Weight

2.4Kg

Size(L*W*H)

180*180*110mm

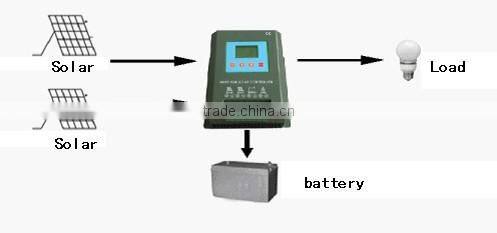

Mppt solar power system wiring diagram:

60A 48V MPPT SOLAR CONTROLLER



Dual six kinds of output mode

1. Light control open, light control off;

2. Light control open, time control off;

3.24 hours working;

4. Half power Light control open, light control off;

5. Half power Light control open, time control off;

6. 24 hours working at half power;

*RS232 / RS485 real-time communication

*LCD multi-level menu displayShow rich in content and design of human nature.
