Help Center2kW Solar Charge Controller
Related Products
Specifications
1.Decent appearance2.Easy operation
3.Visual LCD display
4.Perfect protection functions
5.Meet CE standard

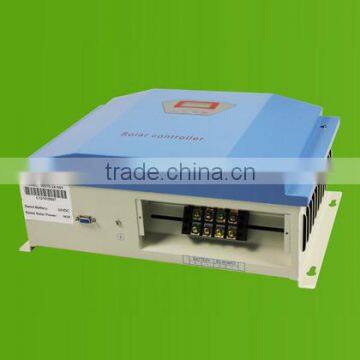

GTS 2000W Solar Charge Controller
1.Introduction
Solar controller is control device which can control solar panel and transform solar energy into electricity then store to the battery bank. Solar controller is the most important part in off-grid system, whose performance has much effect on life expectancy and operation of the whole system, especially the battery expectancy. Or life span of battery will be shortened by over charge or over discharge.
2. Performance features
Superior military-grade components to ensure the product stability.
3. Certifications
Small and medium-sized S&T enterprise technology innovation fund project approval
Anhui province high and new technology product certification
Utility patent of strong wind resistance, step less dump load wind power controller
Utility model patent for integration of rectification and dump load of wind power main circuit board
“Industrial Products Quality Supervision and Inspection Center Test Report” from Posts and Telecommunications
Ministry of Information Industry.
European CE certification.
Appearance design patent certification
4.Technical data
Product Model |
GTS20-48-N00 |
GTS20-96-N00 |
GTS20-110-N00 |
GTS20-120-N00 |
GTS20-220-N00 |
Rated Battery Voltage |
48V |
96V |
110 |
120V |
220V |
Rated Solar Input Power |
2kW |
2kW |
2kW |
2kW |
2KW |
Floating Charge Voltage |
58V |
116V |
133V |
145V |
266V |
Max Open Circuit Voltage |
100V |
200V |
230V |
250V |
458V |
Display Mode |
LCD |
||||
Quiescent Current |
≤20mA |
||||
Ambient Temperature & Humidity |
-20~+55°C/35~85%RH(Without Condensation) |
||||
Communication Function (Optional) |
RS232 ,RS485, RJ45, GPRS (Optional) |
||||
Temperature Compensation Function(Optional) |
-4mV/°C/2V ,–35°C--+80°C, Precision:±1°C |
||||
|
Dimensions
(L x W x H)
|
440×300×170mm |
||||
Net Weight |
8 kg |
||||
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |||||
Declare: Our company reserves the right to change products. Design and specification are subject to change without prior notice.
5.Optional Functions
OPTIONAL FUNCTIONS |
OPTIONAL ACCESSORIES |
·Temperature compensation function |
·Ethernet communication module |
·Wind turbine low voltage charge function |
·GPRS communication module |
·RS communication function |
·SD storage card |
·SD card function |
·RS485-USB converter |
·Wind speed detection function |
·RS485-RS232 converter |
·Wind turbine rotate speed detection function |
·RS232-USB converter |
·Wind turbine micro current charge function |
|
