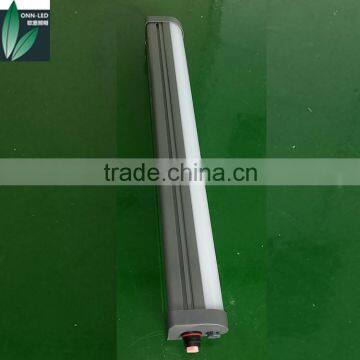

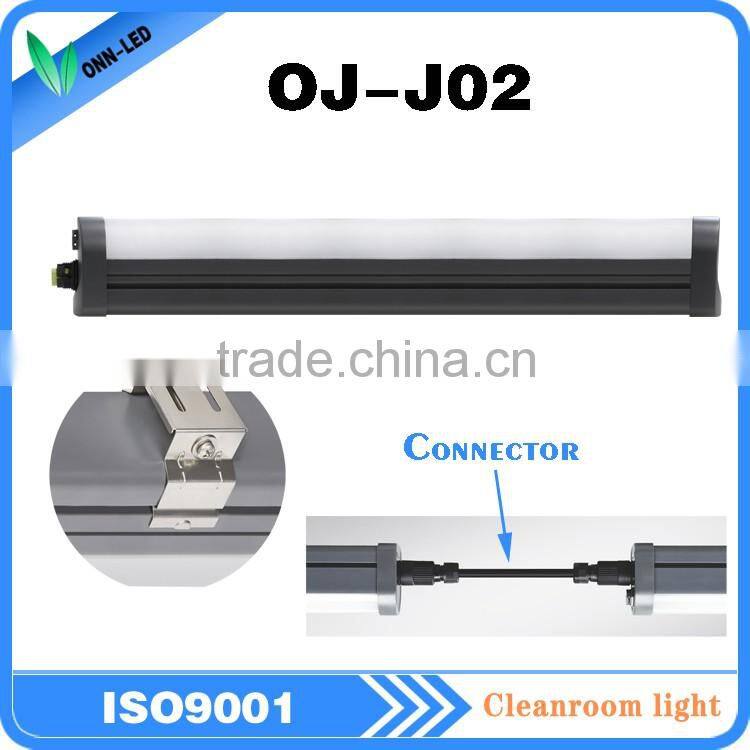

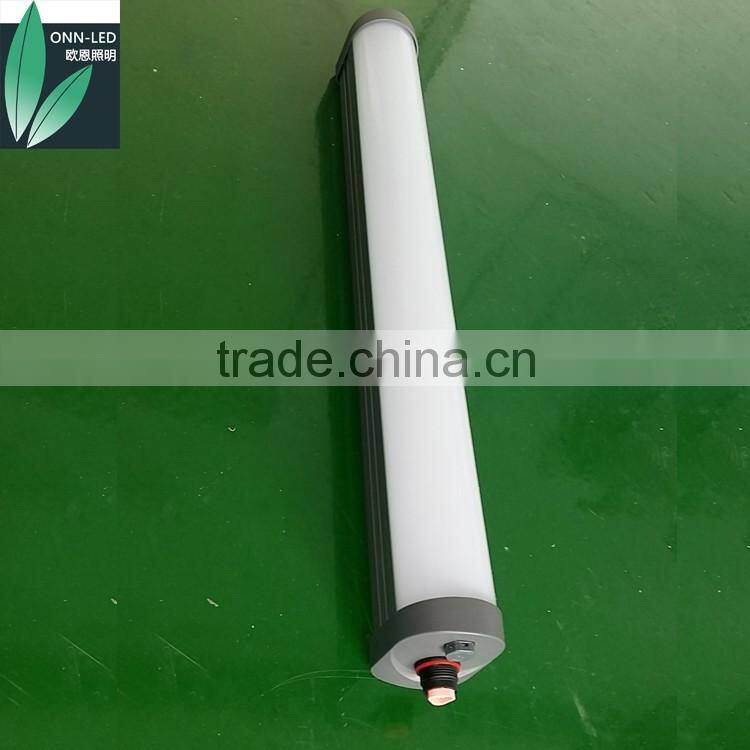

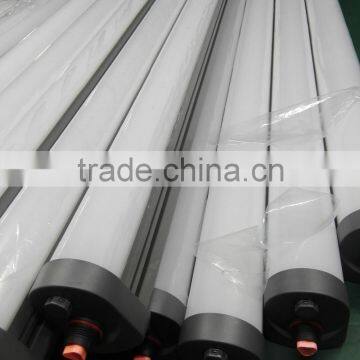

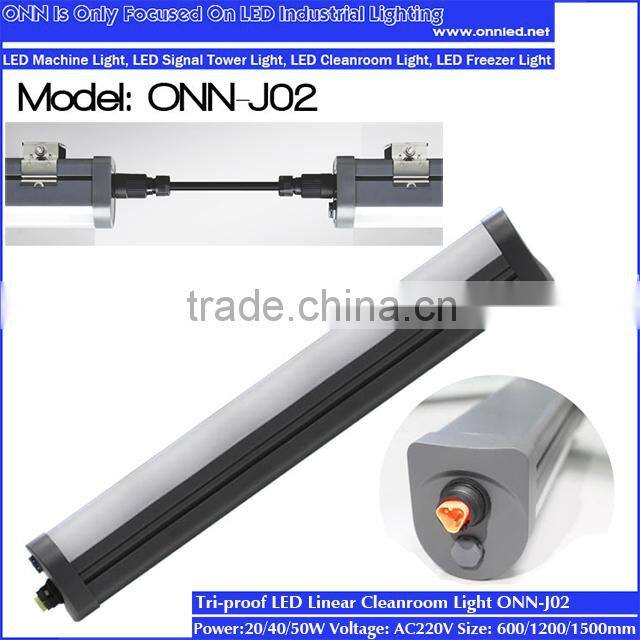

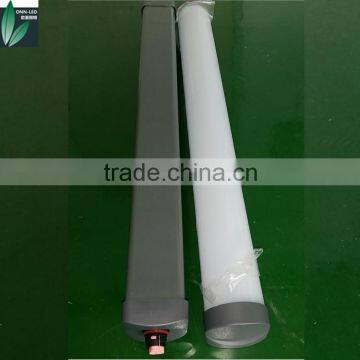

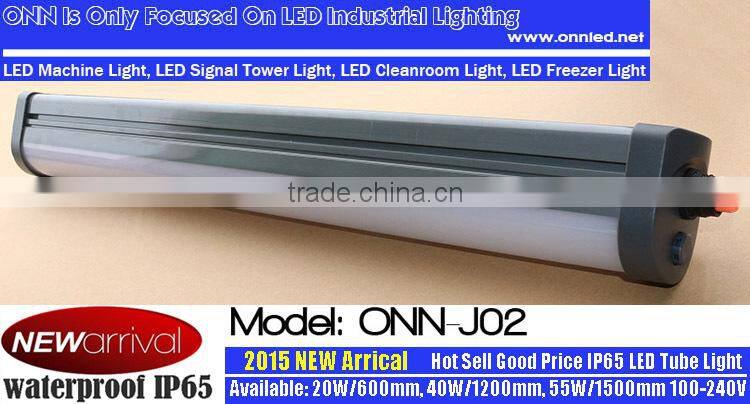

ONN-OJ-J02 IP65 Cold-storage and Tri-proof led ligting fixtures
Products introduce:
1.The lamp shade adopts the double color extrusion integrated design, the sealing performance is better, the waterproof grade is high.
2.Private model products, drawing on the appearance of PHILPS design, beautiful appearance
3.Can do 40 degrees below zero cold storage lighting, price and practicality is very competitive
4.Nice design,appearance patent
5.Competitive price,easy installation,high bright
6.LED clean room,good dustproof,easy clean,perfect efficiency
7.Used 2835 led,it small volume,low thermal resistance,good thermal conductivity,Low-light failure, it’s the best choice
Basic parameters:
| Model | Voltage | Power | CRI | Lumen | View angle | Sizes | Color | IP rating |
| ONN-J02-600 | AC100-240V | 20w | >80 | 1900-2100Lm | 160 degree | 600*65.6*77.8mm | 4000-4500K 5500-6000K | IP65 |
| ONN-J02-1200 | AC100-240V | 40w | >80 | 4000-4200Lm | 160 degree | 1200*65.6*77.8mm | 4000-4500K 5500-6000K | IP65 |
| ONN-J02-1500 | AC100-240V | 55w | >80 | 5000-5500Lm | 160 degree | 1500*65.6*77.8mm | 4000-4500K 5500-6000K | IP65 |
| installation | fix by clips | certificate | CE |
| CRI | 80 Ra | work temperature | -20-70 celsius degree |
| beam angle | 160 degree | save temperature | -40-70 celsuis degree |
| IP rating | IP65 | light body color | light gray and white |
| Material | PC | Life spans | 50000 hrs |

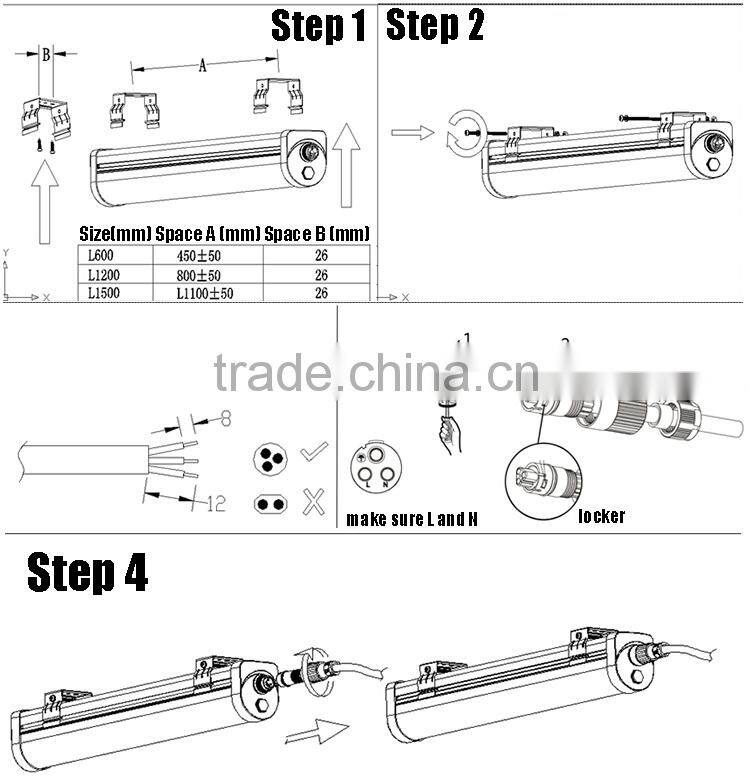

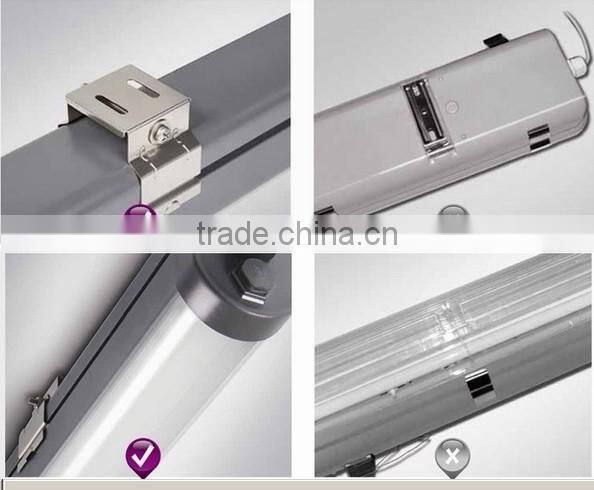

Mounting
Environment request :
Working temperature: |
-20~45℃ |
Save temperature: |
-40~70℃ |
Working humidity: |
10~90% |
Storage humidity: |
10~90% |

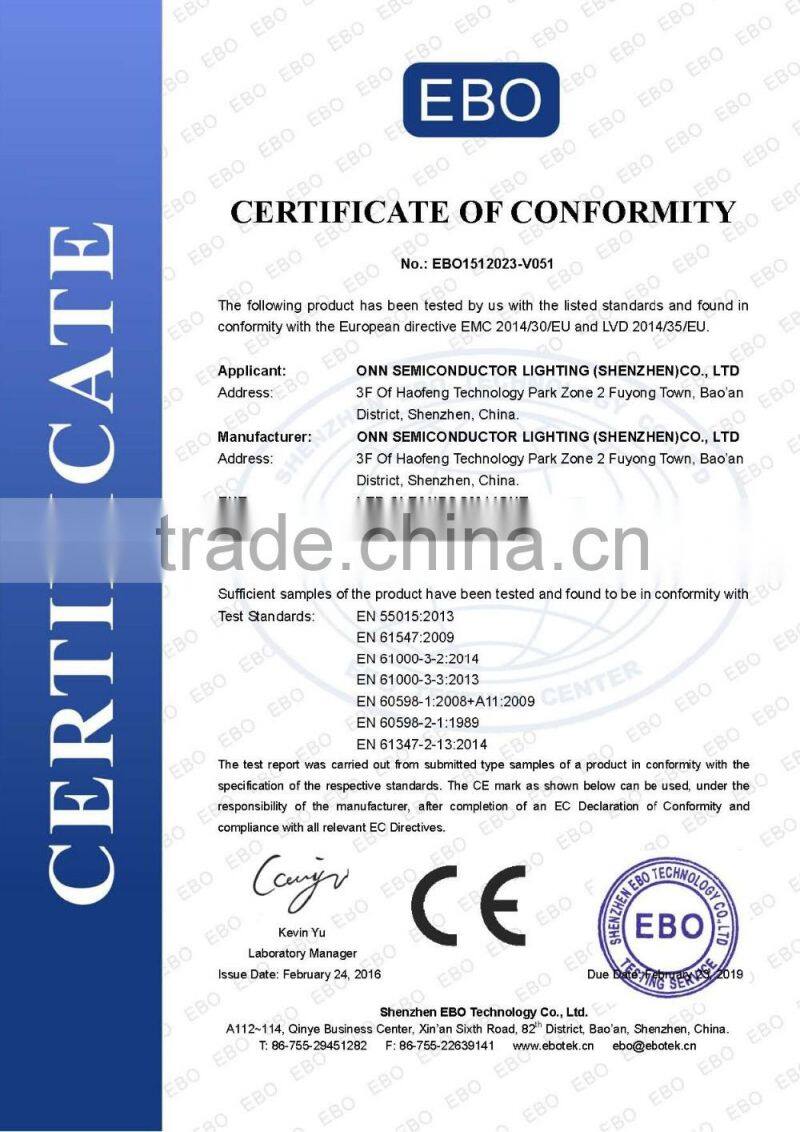

Tri-proof led light certificate:
Packing detail:
Material of packing |
Carton |
||
Product Size(MM) |
600 |
1200 |
1500 |
Net weight (Kg) |
0.65 |
1.08 |
1.32 |
Weight/CTN(Kg) |
3.88 |
9.7 |
8.2 |
PCS/CTN(PCS) |
4 |
6 |
4 |

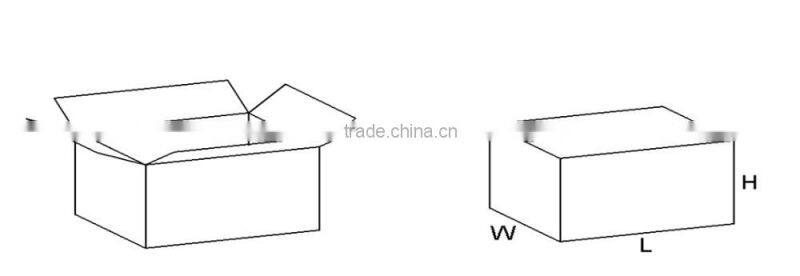

Inner box size(L*W*H)mm |
652×100×98 |
1250×100×98 |
1550×100×98 |
Carton size(L*W*H)mm |
660×210×200 |
1270×210×310 |
1560×210×200 |
Warranty:
1. 36 months free warranty for quality failure.
2. If following facts, warranty will be limited:
(1)Date Changed.
(2)User’s improper use or damage.
(3)Outlook damage or shortage for lamp or package is not within warranty.
(4)Failure caused by improper use or setting.
(5)Open or maintenance not by us or our agents, or without our permit.
(6)Failure caused by act of god.
(7)Other causes not due to quality problems.
3,If exceeds warranty time, it will be not free any more for warranty.
related products

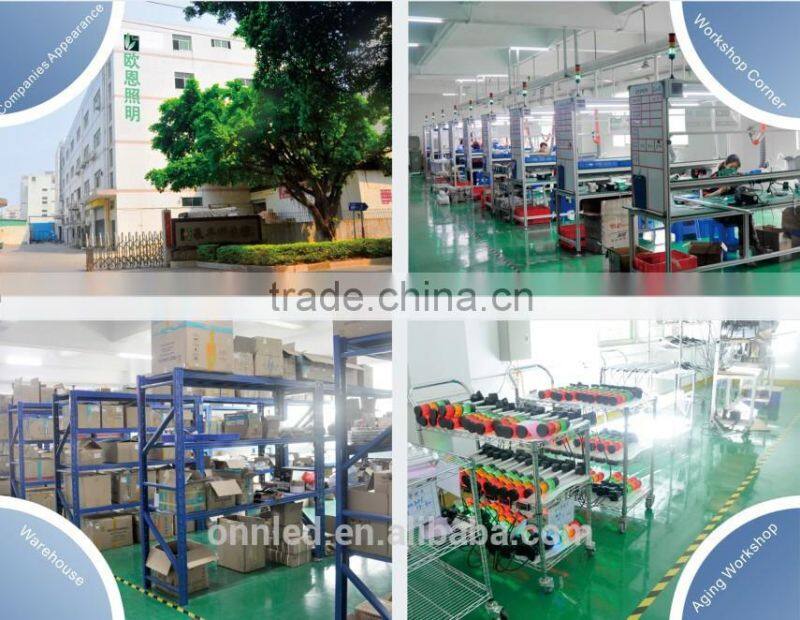

Company information
Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light
With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.
We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market
