ONN M9 IP65 Led Explosion-proof Lights

FOB Price

USD $35 - $63 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shenzhen China
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Input Voltage(V):	AC220 / DC24	Lamp Power(W):	24	Lamp Luminous Flux(lm):	2400
Lamp Luminous Efficiency(lm/w):	100	Color Temperature(CCT):	Other, Warm white / Cool white	Working Temperature(℃):	-40, 50
Working Lifetime(Hour):	50000	IP Rating:	IP65	Certification:	CCC, CE, EMC, FCC
Lamp Body Material:	Aluminum Alloy	Place of Origin:	Guangdong, China	Brand Name:	ONN
Model Number:	ONN-M9

Product Description

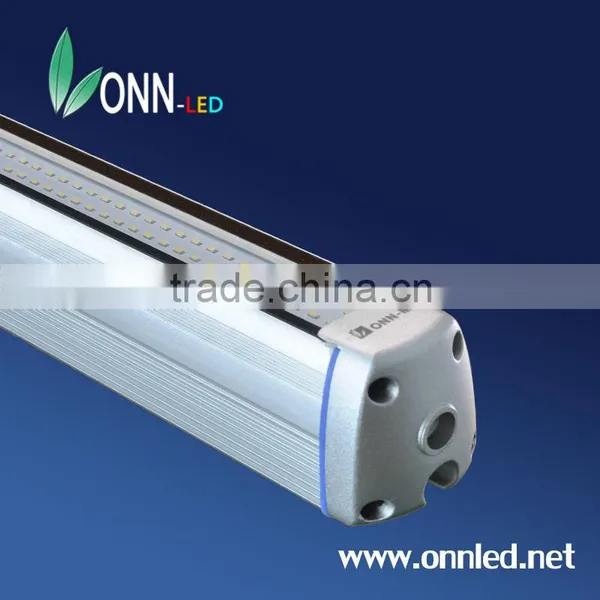

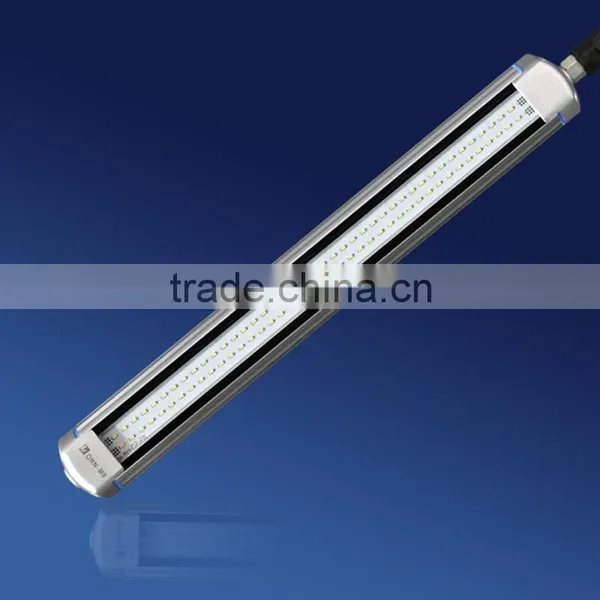

ONN M9 IP65 Led Explosion-proof Lights

Application :

All kind of refrigeratory , assembly line Machineinterior lighting, food factory, pharmaceutical factory,aquaculture industry,

mushroomindustry (applicable for all the places which is not easy to change place,have the needs of water-proof,explosion-proof,it is the revolutionary alternatives of traditional "three anti-light" and explosion-proof lights).

Product Features :

1. Large double energy-saving , long lifespan , maintenance-free man-hour cost ,especially suitable for ultra-low temperature cold storage enviroments .

2. ONN M9 series adopt 3014 light source which imported from Taiwan. Low thermal resistance ,good thermal condutivity , low light decay .

3. Resistant to low temperature of -40°C, no frosting , intantaneous starting .

4. Die-casting Construction,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.

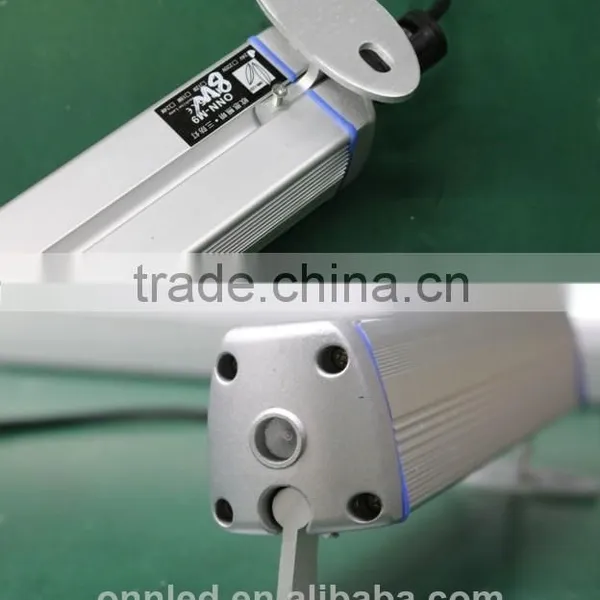

5. Patented construction,consise and generous,360°adjustable,two installing way of clamp and dowel,easy installation.

6. Big allowance design,imported Rubycom capacitance,increase the lifespan of driver sharply,

7. Modular design,easy to replace once the driver failed.

The Value-added services which ONN can supply to you :

1 . ONN can supply LED lighting solutions of Specific projects to you

2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	SMD 3014	Mounting	Fixed by T-shape strap and screws
Lifespan of light source	50000+ hours	Place of original	Shenzhen , China
Viewangle	120°	CCT	4000-4500K&5500-6000K
luminious flux	100LM/W	IP grade	IP65
Voltage	24V/220V	Working temperature	-40-50°C
length	300/400/600/800mm

Model No.	Power Rating	Cureent	Voltage	CCT
ONN-M9-B1	8/12/18/24W	400/550/800/900mA	24V	5500-6000K
ONN-M9-B2	8/12/18/24W	400/550/800/900mA	24V	4000-4500K
ONN-M9-C1	8/12/18/24W	40/55/85/110mA	220V	5500-6000K
ONN-M9-C2	8/12/18/24W	40/55/85/110mA	220V	4000-4500K

Product Size Drawing :

More detail :

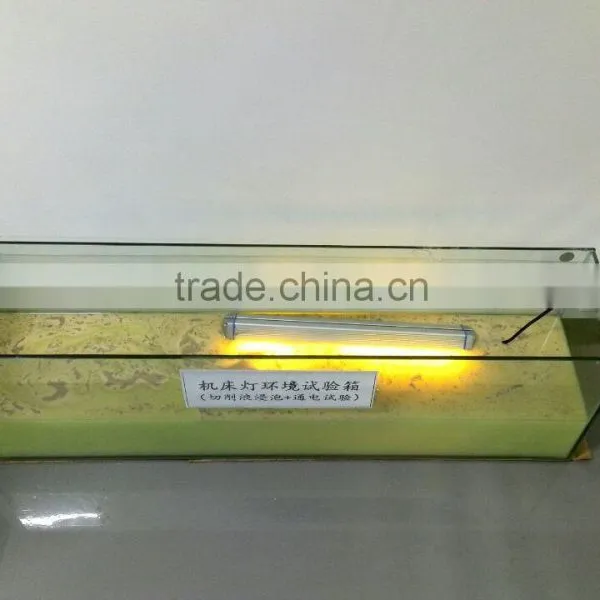

Water-proof and Aging Test :

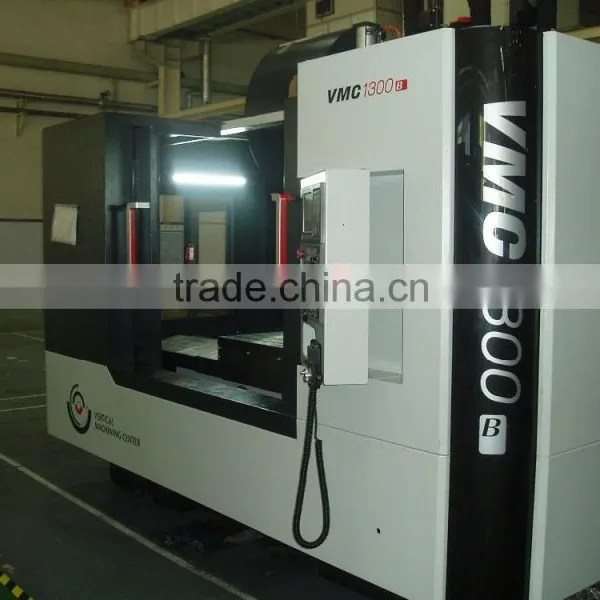

Application :

Company Information :

Brief Introduction :

ONN Culture :

Certificates :

Contact Us :

Fiona . Liu

QQ : 2880560270

Tel : +86 755 36631967

Mob/WhatsApp : +86 182 68698736

Skype : Fiona.Liufei

Web : / www.onnled.en.china.cn
