Home > Lights & Lighting > LED Interior Lighting > LED Tube > ONN-M9 LED Tri-proof Light

ONN-M9 LED Tri-proof Light

US$ 20 - 63 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

LED

Warranty(Years):

Input Voltage(V):

24&220

Contact Supplier Request Quote Chat Now

Shenzhen Onn Semi-Conductor Lighting Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source LED

Warranty(Years) 2

Input Voltage(V) 24&220

Lamp Power(W) 24

Lamp Luminous Flux(lm) 2400

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, Optional

Working Temperature(℃) -40, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP68

Certification CCC, CE, FCC

Place of Origin Guangdong, China

Brand Name ONN

Model Number Other, M9

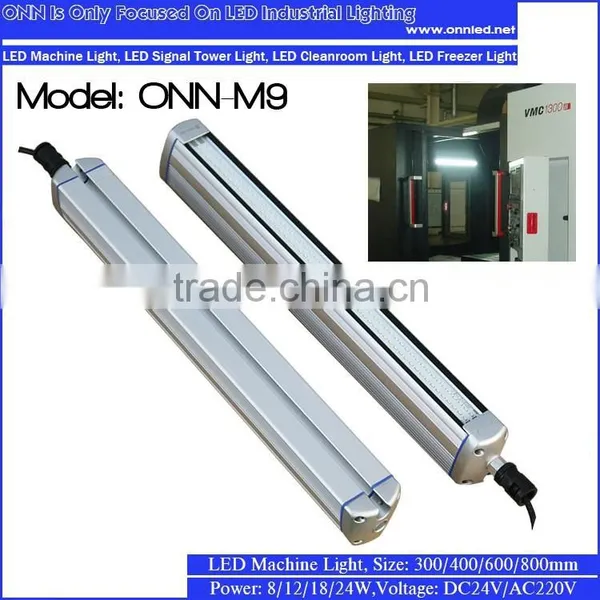

ONN-M9 24v/220v Led Tri-proof Light IP65 Explosion-proof Light for cnc Machine 8w/12w/18w/24w

Application :

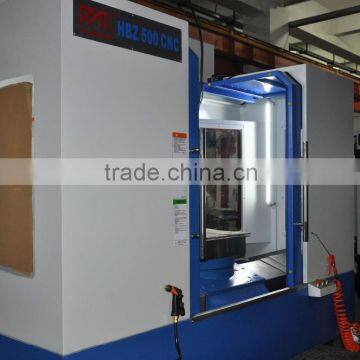

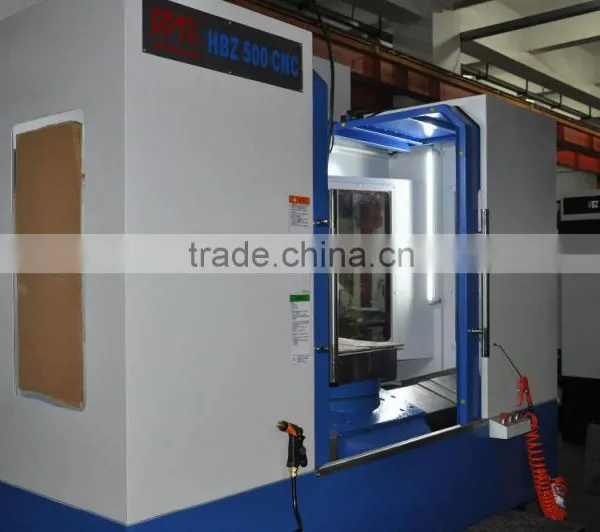

All kinds of CNC Machine , Sculptor , Electrical Discharge Machine , Laser Welder , Grinder and so on .
All kind of refrigeratory , assembly line Machineinterior lighting, food factory, pharmaceutical factory, aquaculture industry,mushroomindustry (applicable for all the places which is not easy to change place, have the needs of water-proof,explosion-proof,it is the revolutionary alternatives of traditional "three anti-light" and explosion-proof lights).

Product Features :

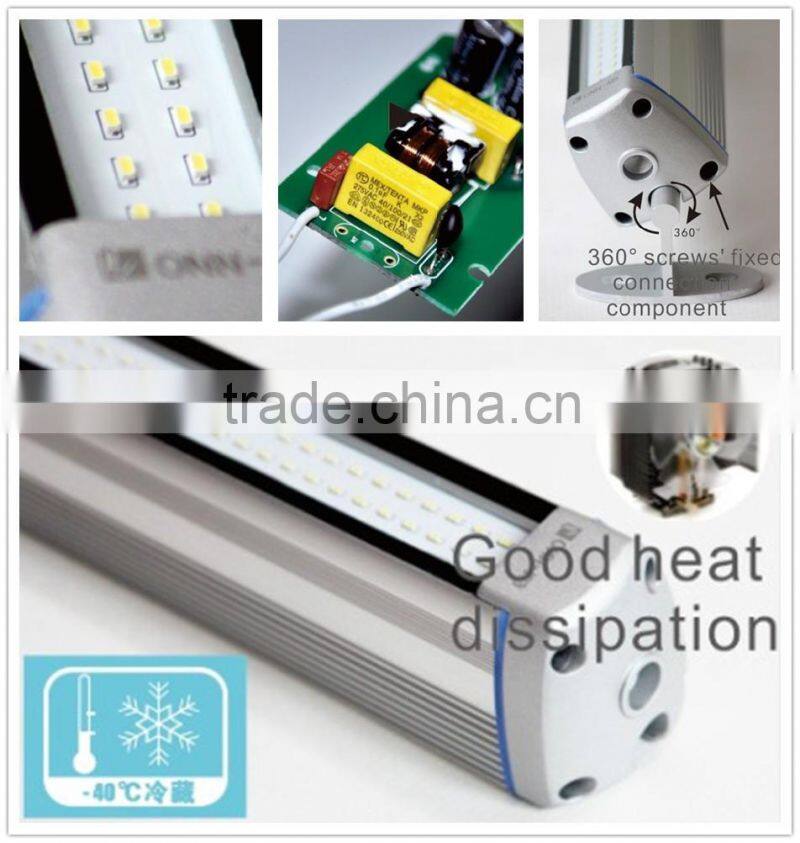

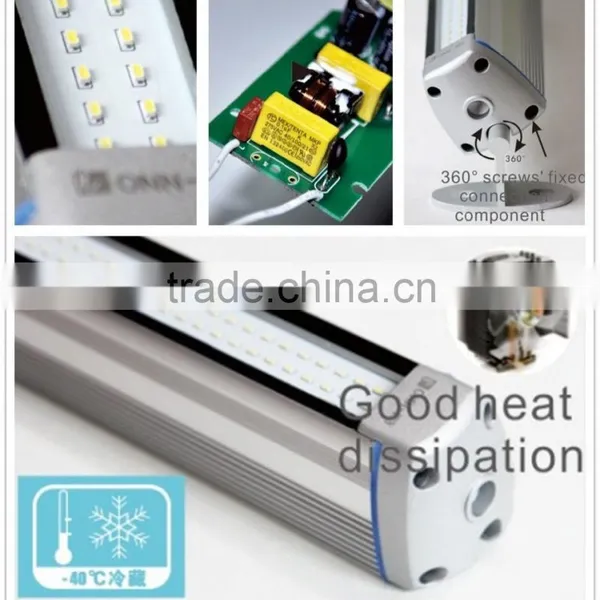

1. Large double energy-saving , long lifespan , maintenance-free man-hour cost ,especially suitable for ultra-low temperature cold storage enviroments .

2. ONN M9 series adopt 3014 light source which imported from Taiwan. Low thermal resistance ,good thermal condutivity , low light decay .

3. Resistant to low temperature of -40°C, no frosting , intantaneous starting .

4. Die-casting Construction,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.

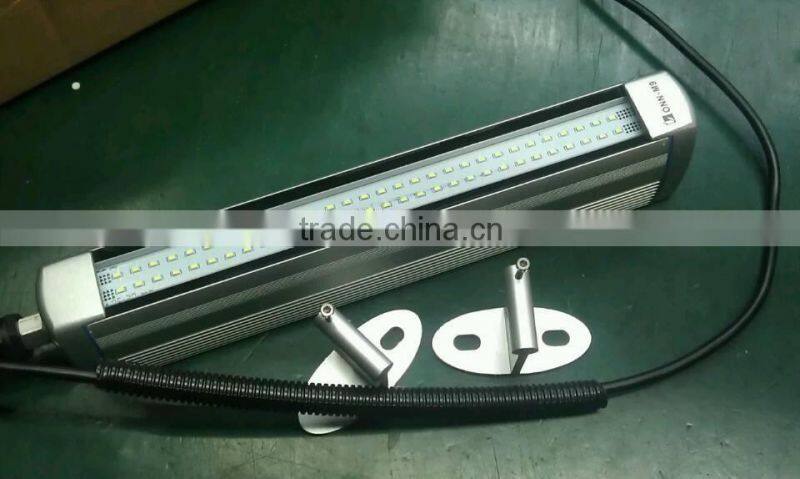

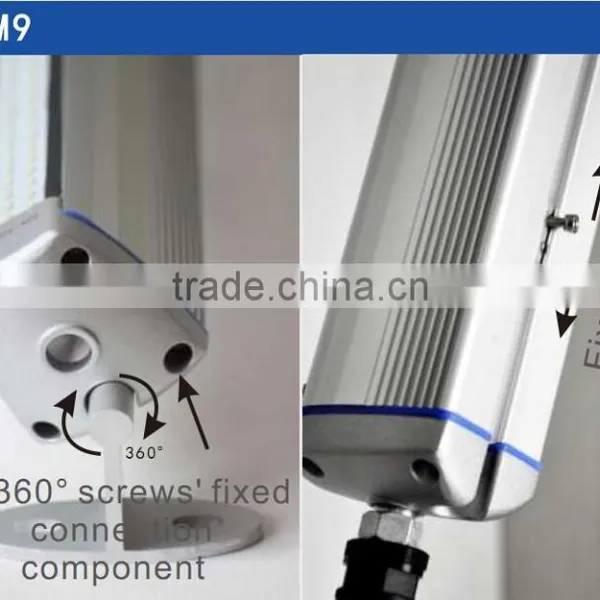

5. Patented construction,consise and generous,360°adjustable,two installing way of clamp and dowel,easy installation.

6. Big allowance design,imported Rubycom capacitance,increase the lifespan of driver sharply,

7. Modular design,easy to replace once the driver failed.

The Value-added services which ONN can supply to you :

1 . ONN can supply LED lighting solutions of Specific projects to you

2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	SMD 3014	Mounting	Fixed by T-shape strap and screws
Lifespan of light source	50000+ hours	Place of original	Shenzhen , China
Viewangle	120°	CCT	4000-4500K&5500-6000K
luminious flux	100LM/W	IP grade	IP65
Voltage	24V/220V	Working temperature	-40-50°C
length	300/400/600/800mm

Model No.	Power Rating	Current	Voltage	CCT
ONN-M9-B1	8/12/18/24W	400/550/800/900mA	24V	5500-6000K
ONN-M9-B2	8/12/18/24W	400/550/800/900mA	24V	4000-4500K
ONN-M9-C1	8/12/18/24W	40/55/85/110mA	220V	5500-6000K
ONN-M9-C2	8/12/18/24W	40/55/85/110mA	220V	4000-4500K
