ONN-X5D Led Jewelry Display Lighting 100-240V
US$ 5 - 18
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
ONN-X5D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ONN-X5D Aluminum Led Showcase Lighting 2ft to 6ftUS$ 5 - 18MOQ: 1 Piece -
Led Waterproof Lights for Freezer 12v /24v / 220v Ip65US$ 4 - 12MOQ: 1 Piece
-
ONN-X5D Showcase Led Light 360 Degree Adjustable 100-240vUS$ 5 - 18MOQ: 1 Piece
-
ONN-X08 IP65 Water-proof Fridge Lights 2ft to 6ftUS$ 5 - 14MOQ: 1 Piece
-
ONN-X08 Waterproof Led Light for Refrigerator 100-240vUS$ 5 - 14MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ONN
Model Number
ONN-X5D

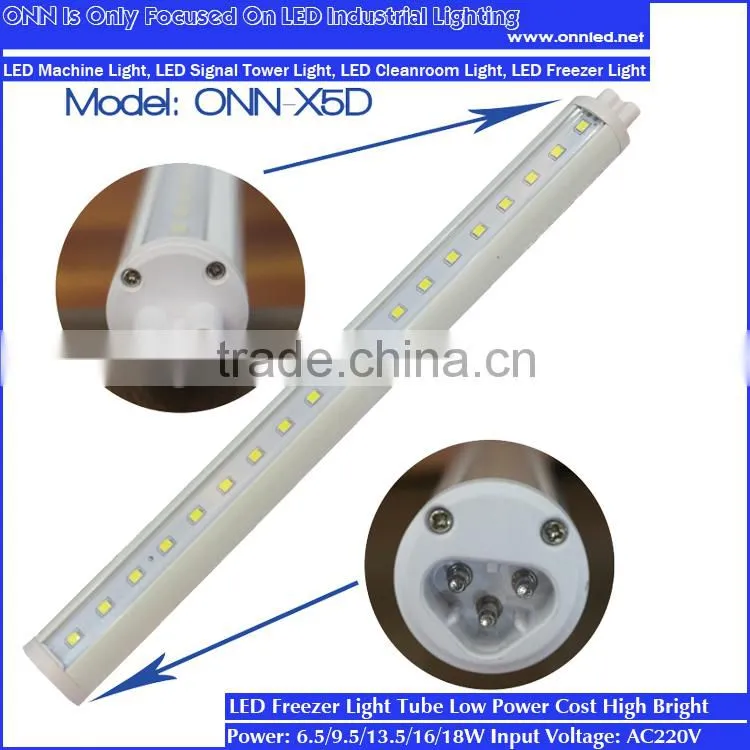

ONN-X5D Led Jewelry Display Lighting 100-240v
Application :
Kitchen , Cabinet , Freezer inner illumination , refrigeratory inner illumination , bakery and confectionery , pharmaceutical fctory , fishery industry , edible mushrooms industry (suitable for various sites where require water-proof,explosion-proof and not easy to replace,is the revolutionary replacement for traditional “ tri-proof”, “explosion-proof”)
Product Features :
1. 3/4 alumninium construction,small diameter only 19mm , without unnecessary parts,concise and generous,360°adjustable,easy installation .
2. Ingenious design of two ends:prolongable connection,universal usage with the common product connector.
3. Different color temperature available,more better display effect for proudct . Lights color depends on customer's requirements .
4. Shadowless design : The connectors is thin ,lamp and lamp can reach t shadowless effect .
5. All joints with moisture-proof treatment ring , protection level can reach IP65,unique in domestic,first creation aroud the world. Light source and driver being gumming,IP grade can achieve IP67.
6. 3014 chips imported from Taiwan. Low thermal resistance ,good thermal condutivity , low light decay .
7. Adopt centralized power supply,cost saving and convenient for installation.
8. Baked White Panit which make the lights more beautiful and safe .
The Value-added services which ONN can supply to you :
1 . ONN can supply LED lighting solutions of Specific projects to you
2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers
Technical Parameters :
| Model | Nominal Voltage | Voltage Rang | CCT | ||||
| ONN-X5D-C1 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 5500-6000K | ||||
| ONN-X5D-C2 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 4000-4500K | ||||
| ONN-X5D-C3 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 2800-3200K | ||||
| Wire Length: | Around 0.15M(standard) | ||||||
| Installation: | Fixed with Clip | ||||||
| Lamp Length: | 600mm | 900mm | 1200mm | 1500mm | 1800mm | ||
| Power Cost: | 6.5W | 9.5W | 13.5W | 16W | 18W | ||
| Input Current: | (220V) | (220V) | (220V) | (220V) | (220V) | ||
| 29mA | 43mA | 68mA | 77mA | 80mA | |||
| Luminous Flux: | 720 Lm | 1000 Lm | 1100 Lm | 1650 Lm | 1900 Lm | ||
| Protection: | IP54 | CRI: | Ra 80 | ||||
| Efficiency: | 100-110lum/w | PF: | 0.9 | ||||
| Surface temperature: | 60℃ | Beam Angle: | 120° | ||||
