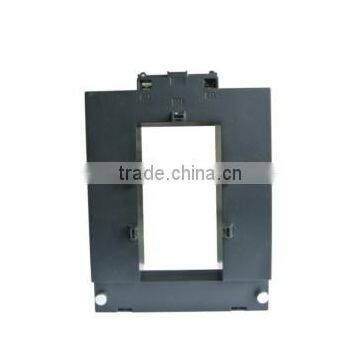

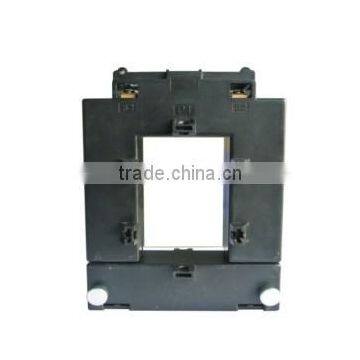

DBP/DP CE Split-Core Current Sensor 3kv 3000/5a
- 200000 Piece / Pieces per Month
- shanghai
- Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Jiangyin Spark | Model Number: | DBP/DP |
Usage: | Electronic | Phase: | Single | Coil Structure: | Toroidal |
Coil Number: | Autotransformer |
Product Description
Specifications
DBP/DP CE Split-Core Current Sensor 3kv 3000/5a1.low cost
2.good quality
3.OEM offered
4.good design
Features Of DBP/DP CE Split-Core Current Sensor 3kv 3000/5a
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant
Drawing Size Of DBP/DP CE Split-Core Current Sensor 3kv 3000/5a
Pls contact me for much more information by Skype
My Skype:paul.duke188
Our products
Strong items
Certifications
Quality Control
Package Of DBP/DP CE Split-Core Current Sensor 3kv 3000/5a
Transportation
Contact detail
Contact Us
- Jiangyin Spark Electronic Technology Co., Ltd.
- Contact namezhende xu
- Phone86-510-86271733
- AddressNo. 263, Dongwaihuan Road
