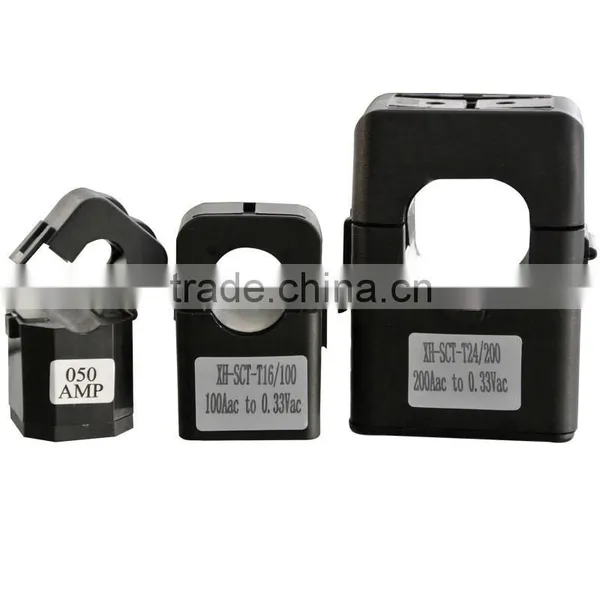

Help CenterCE ETL 0-400A/5A 24mm Diameter Hole Split-core CT
Related Products
-
DBP/DP CE Current Transducer 500a Split CoreUS$ 15 - 60MOQ: 10 Pieces -
DBP/DP CE Current Transformers 600a Split CoreUS$ 15 - 60MOQ: 10 Pieces
-
DBP/DP CE 800A/5A Split Core Current SensorUS$ 15 - 60MOQ: 10 Pieces
-
DBP/DP CE 500A/5A Split Core Current TransformerUS$ 15 - 60MOQ: 10 Pieces
-
CE UL ETL Clamp On Stromwandler 1aUS$ 2.5 - 39MOQ: 10 Pieces
Specifications
CE ETL 0-400A/5A 24mm diameter hole split-core CT1.low cost
2.good quality
3.OEM offered
Feartures Of CE ETL 0-400A/5A 24mm diameter hole split-core CT
Features:
Small size, low cost
High secondary turns
Secure locking hinge
Features:
Maximum continuous primary current 5A to 5000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
Drawing Size Of CE ETL 0-400A/5A 24mm diameter hole split-core CT
Model |
I.D. |
Ratio |
Rated Amps |
Accuracy |
XH-SCT-T06 |
6mm |
1000:1 |
1, 5,10, 15, 20, |
0.5 , 1.0 |
XH-SCT-T10 |
10mm |
3000:1 |
5, 15, 30, 50, 75,80 |
0.5 , 1.0 |
XH-SCT-T16 |
16mm |
3000:1 |
50, 70, 100, 120 |
0.5 , 1.0 |
XH-SCT-T24 |
24mm |
3000:1 |
100, 150, 200, 300 |
0.5 , 1.0 |
XH-SCT-T36 |
36mm |
3000:1 |
300, 400, 500, 600 |
0.5 , 1.0 |
Pls contact me for much more information by Skype
My Skype:paul.duke188
Our products
Strong items
Certifications
Quality Control
Package Of CE ETL 0-400A/5A 24mm diameter hole split-core CT
Transportation
Contact detail
