200A Split Core Current Transformer With 5A Output

200A Split Core Current Transformer With 5A Output thumbnail-1
200A Split Core Current Transformer With 5A Output thumbnail-2
200A Split Core Current Transformer With 5A Output thumbnail-3
200A Split Core Current Transformer With 5A Output thumbnail-4
200A Split Core Current Transformer With 5A Output thumbnail-5
200A Split Core Current Transformer With 5A Output thumbnail-6
200A Split Core Current Transformer With 5A Output photo-1
200A Split Core Current Transformer With 5A Output photo-2
200A Split Core Current Transformer With 5A Output photo-3
200A Split Core Current Transformer With 5A Output photo-4
200A Split Core Current Transformer With 5A Output photo-5
200A Split Core Current Transformer With 5A Output photo-6
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Jiangyin Spark
Model Number:
XH-SCT-T24
Contact Supplier Request Quote Chat Now
Jiangyin Spark Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Jiangyin Spark
Model Number XH-SCT-T24
Usage Consumption Sensor
Theory Current Sensor
Output Analog Sensor



Split core current transformer with 5A output, split core current transformer AC, Split  core current sensor



Class 1 MiniClip Split Core CT Range (5A Secondary)

  Specification:
Maximum continuous primary current 100A to 300AAC
Output: 1A or 5A at rated current
Accuracy: ± 1% 2VA
Indoor or Outdoor use, Outdoor type with rubber cover
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 1.0 m cable
CE recognized, and RoHS compliant
Output and leads can be customized



Please select the required CT Ratio from the options below 100/5A 150/5A 200/5A 300/5A

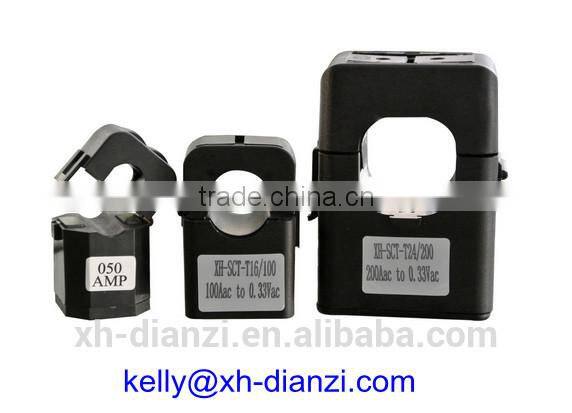

200A split core current transformer with 5A output

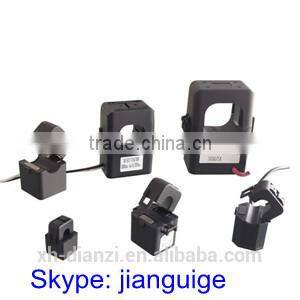

Skype: jianguige , pls contact us for much more information

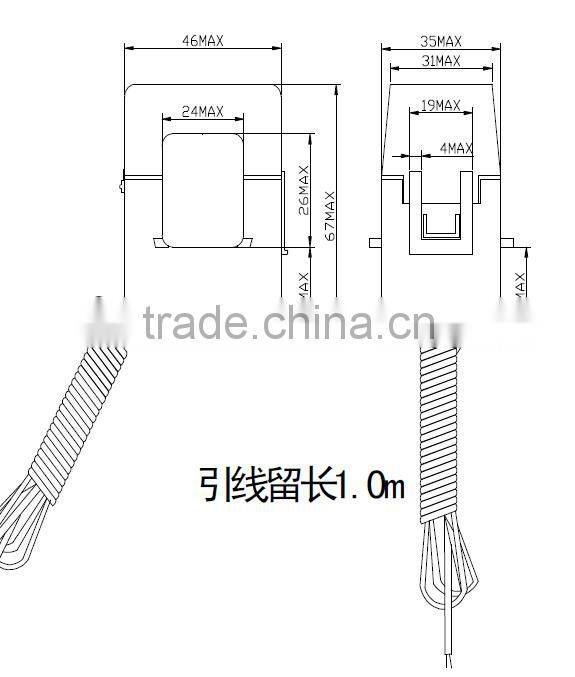

200A split core current transformer with 5A output200A split core current transformer with 5A output



200A split core current transformer with 5A output

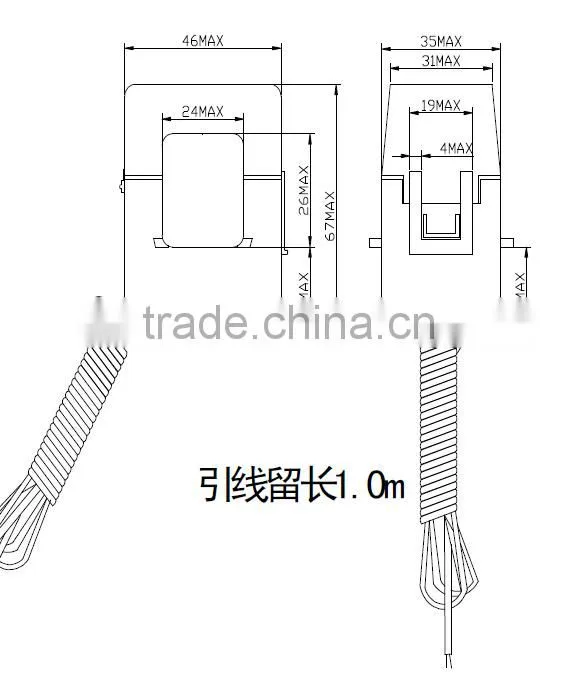

200A split core current transformer with 5A output
