Help Center250A/5A T Type Split Core Current Transformer
Related Products
-
200A/5A T Type Split Core Current TransformerUS$ 2 - 10MOQ: 1 Piece -
150A/5A T Type Split Core Current TransformerUS$ 2 - 10MOQ: 1 Piece
-
100A/5A T Type Split Core Current TransformerUS$ 2 - 10MOQ: 1 Piece
-
300A/1A T Type Split Core Current TransformerUS$ 2 - 10MOQ: 1 Piece
-
250A/1A T Type Split Core Current TransformerUS$ 2 - 10MOQ: 1 Piece
--------------Diameter
Keyword:
1, 100A/1A
2, split core current transformer
3, Diameter 24mm
| Item | Specification | Dimaeter | Certificate | Accuracy | Color |
| XH-SCT-T24 | 100A/1A | 24mm | CE, Rohs, ETL | 0.7% |
black(MOQ 1pcs)/ white(MOQ 500pcs) |

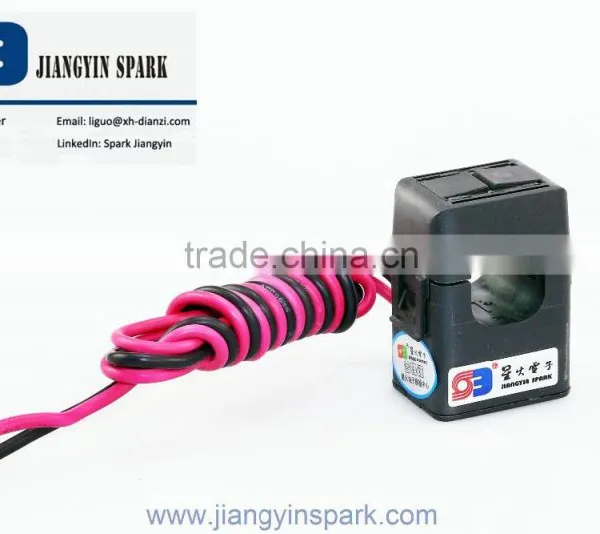

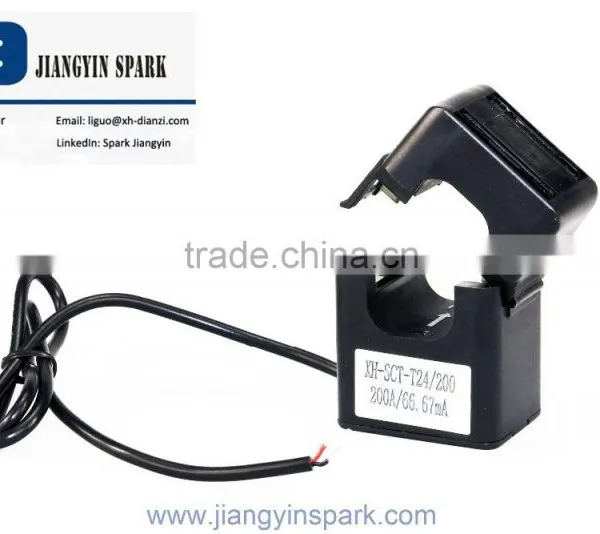

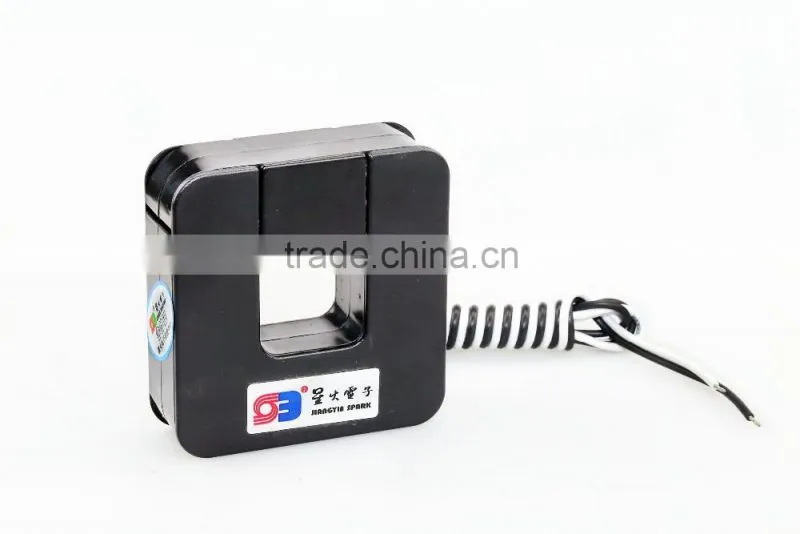

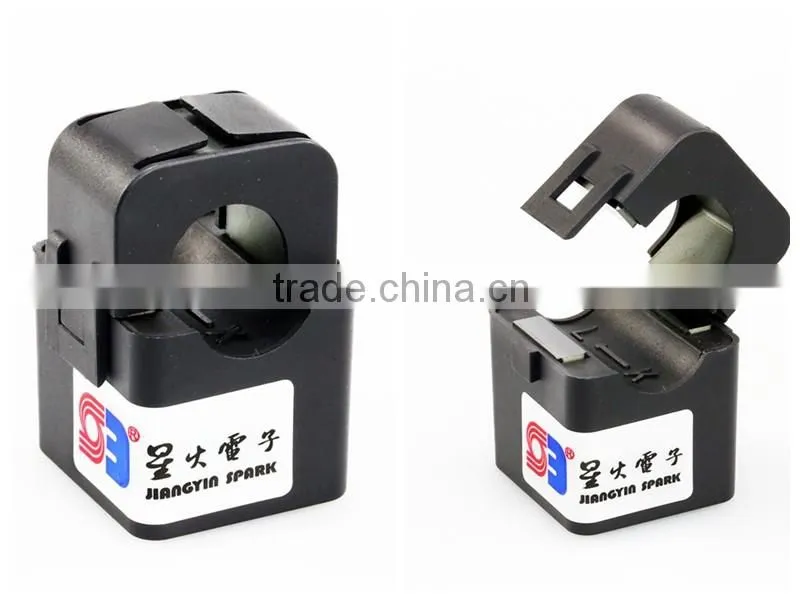

Split Core (Clip on) Current Sensor
The JIANGYIN SPARK series of split core current sensors are designed for fast and easy installation. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. This method permits a safer, easy and portable current measurement.
Features:
Small size, low cost
High secondary turns
Secure locking hinge

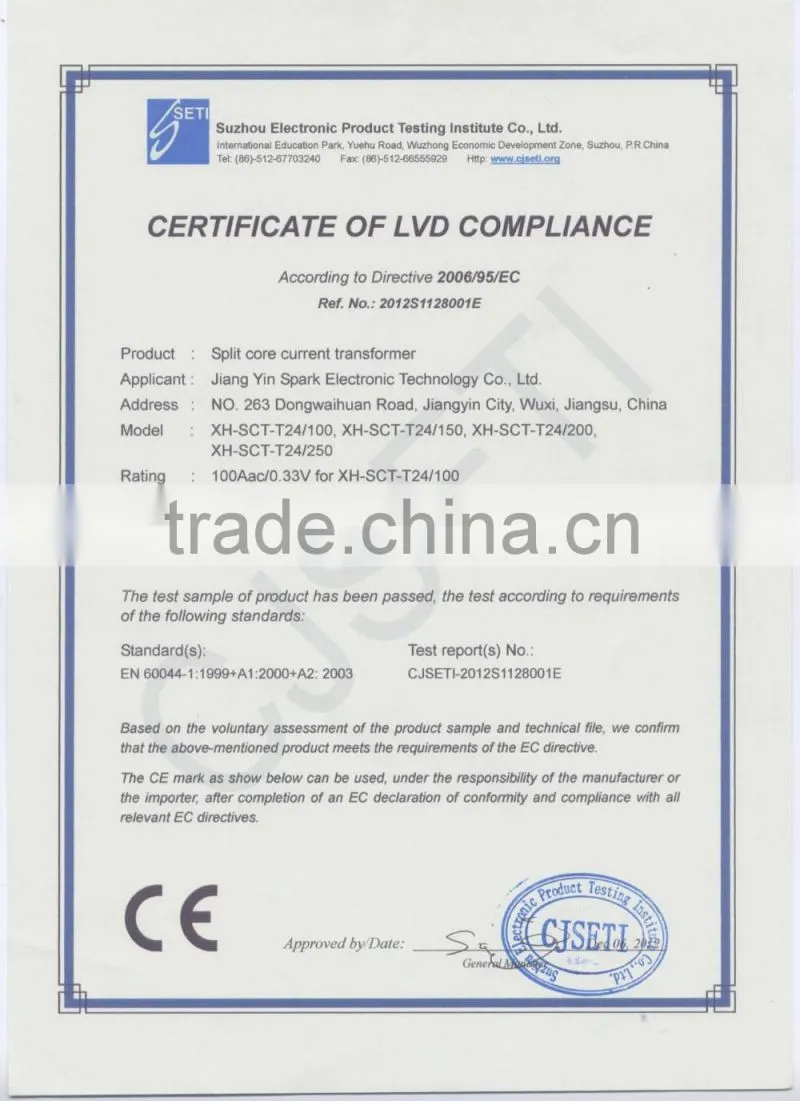

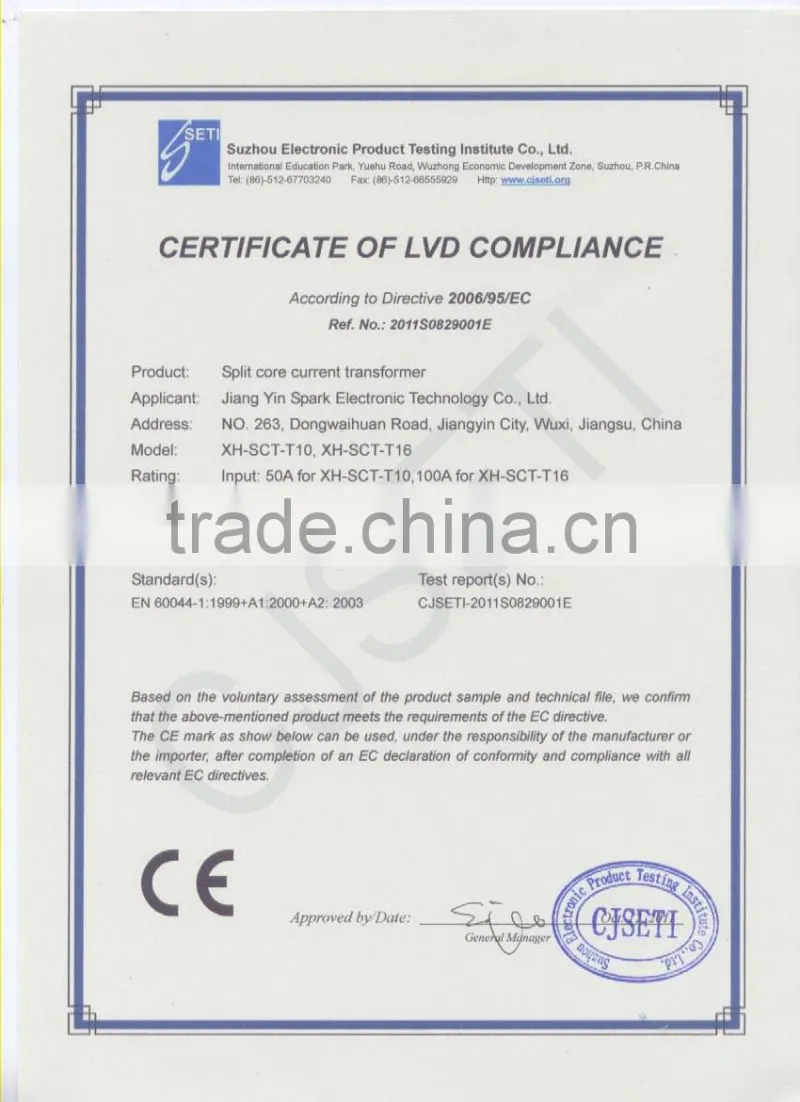

UL, CE, ETL, Rohs certifications.
Specifications:
Maximum continuous primary current 1A to 600AAc
Current Ratio: 500:1 ,1000:1 ,2000:1 ,2500:1 ,3000: 1
Output: mA or 0.333Vac to 3.53Vac
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600Vac
Maximum Primary Voltage: 5000Vac(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 24AWG
CE ,UL recognized, and RoHS compliant
Output and leads can be customized
Applications:
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features ,Load Center
Three Phase Balance Control
In-Factory Display ,In-Home Display
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
Why choice split core current transformer from Jiangyin spark?

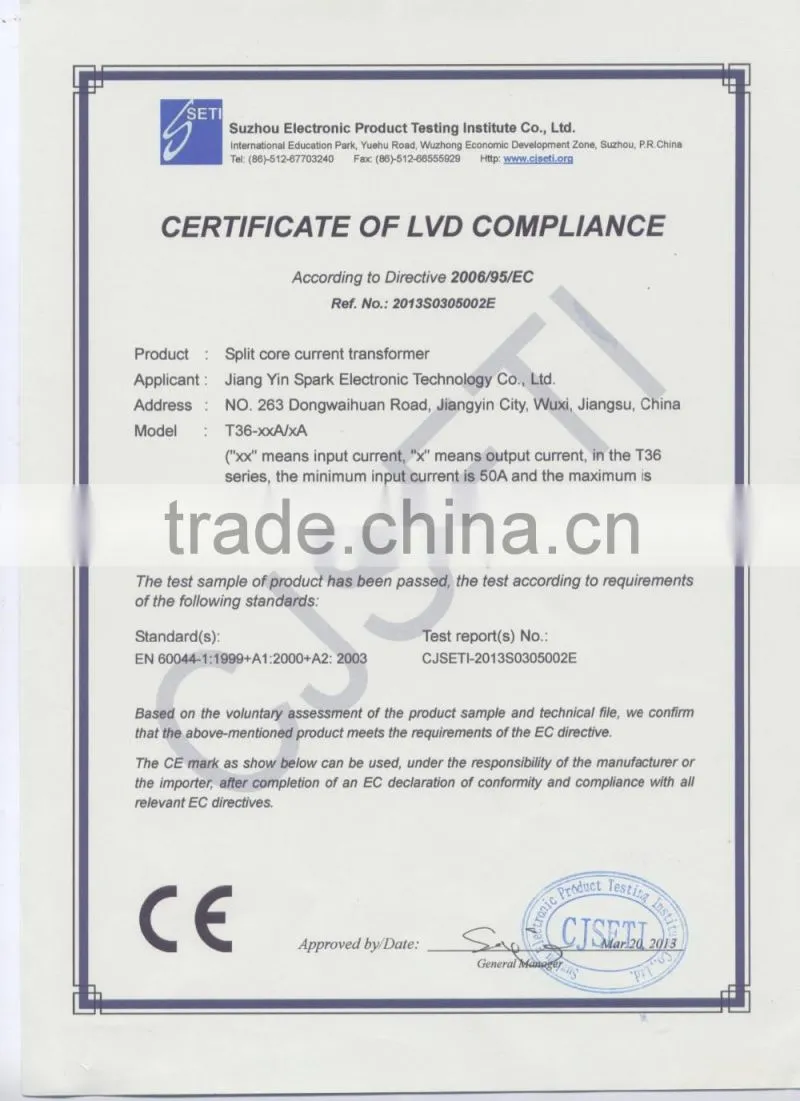

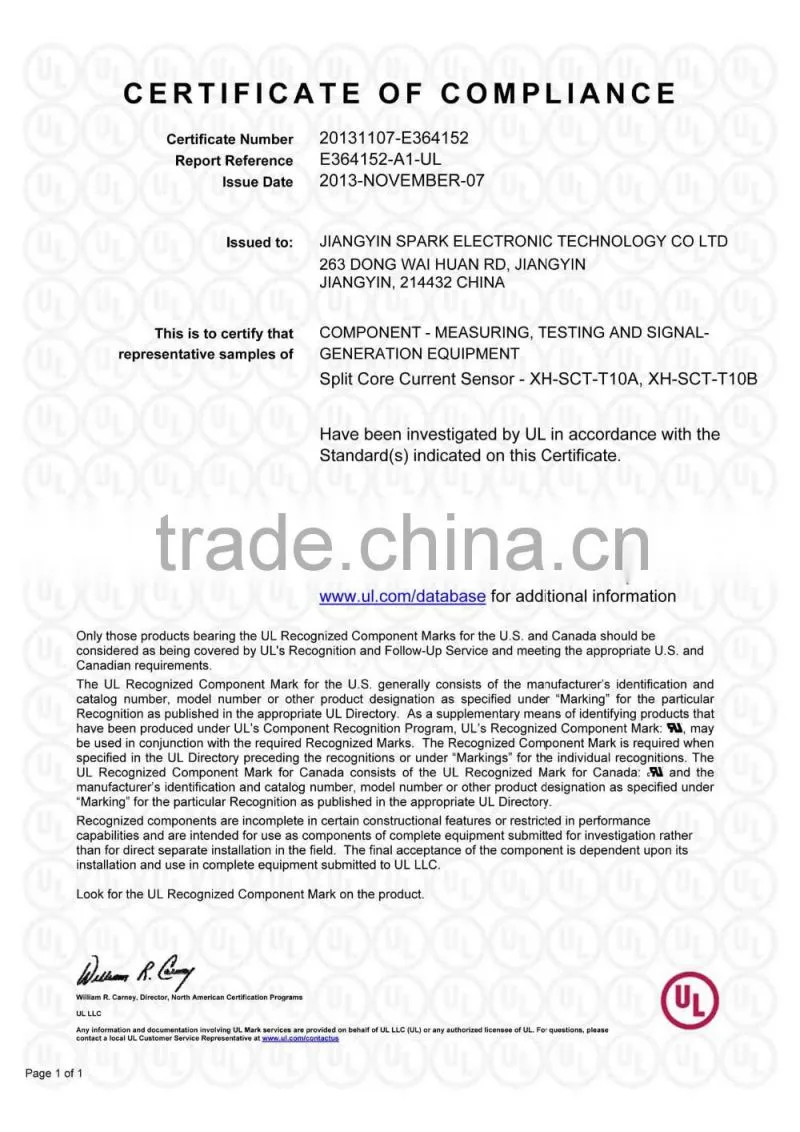

CE UL ETL, have good reputation in the market.
Our 60A/0.333V split core ct’s accuracy can catch 0.3%, and it’s price is very competitive on the market.
We still have very low current split core ct, 5A/0.333V, accuracy can reach within 0.5%.
Since 1995, have rich experience, 4-20mA/0.333V/0-10V/0-5V output we all have.
My contact information:

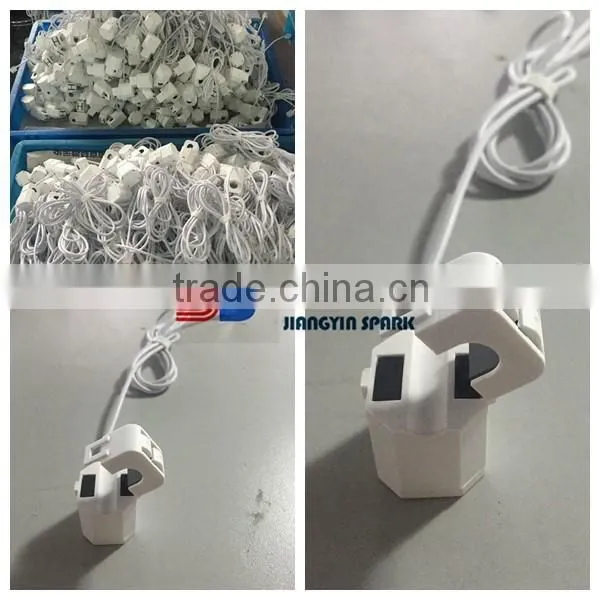

And we have white color type split core ct, but this color's MOQ is 500pcs, because it's not normal type split core ct.

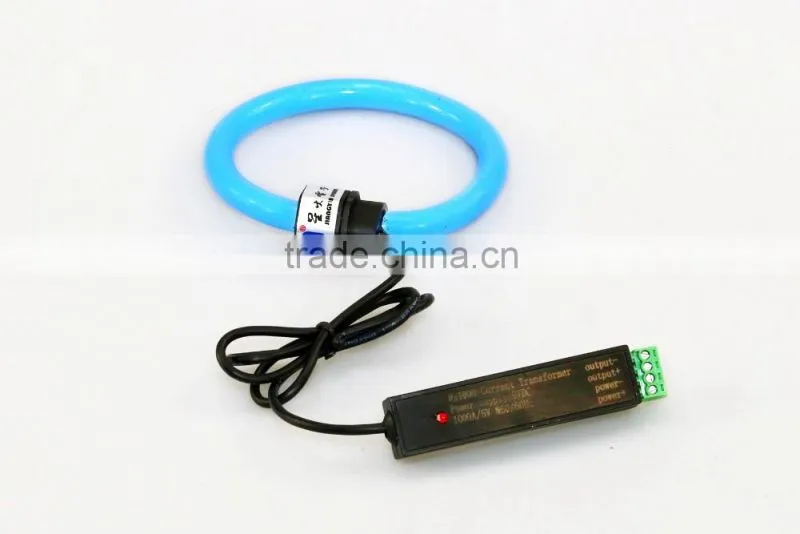

If you are interested in flexible rogowski coil, pls click.
If you are interested in our 0.333v split core current transformer, pls click, it's very pupular in USA's market.
-----rogowski coil
-----USA 0.333v split core current transformer
