FRP/Steel wire strength member Self-supporting butterfly ftth installing cable
- 100 Kilometer / Kilometers per Month
- Shanghai / Lianyungang /Qingdao In China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Single mode 12 core Cable GJBFJV breakout fiber optic cable
-
Self-supporting drop indoor medical fiber optic cable
-
High quality GJBFJV 48 Core Multi Purpose Breakout Optical Fibre Cable
-
LSZH jacket Self-supporting bow-type drop fiber optic cable meter price
-
LSZH jacket Self-supporting FTTH drop fiber cable
-
China LSZH jacket Self-supporting 1 core drop fiber optical cable
Product Details
Place of Origin | Jiangsu, China | Brand Name | CHANGGUANG | |

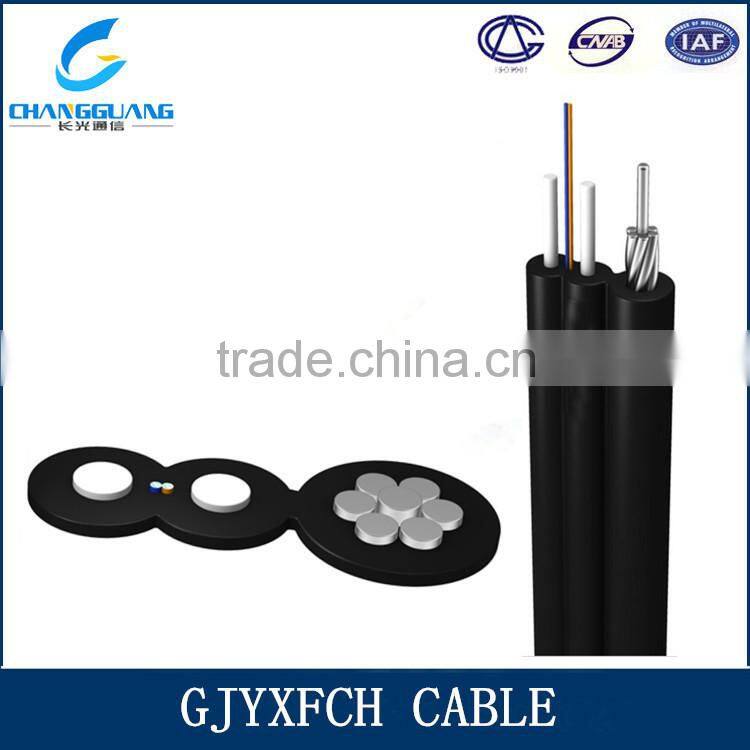

Model Number | GJYXFCH | Type | Cat 1 | |
Number of Conductors | 4 |
Product Description

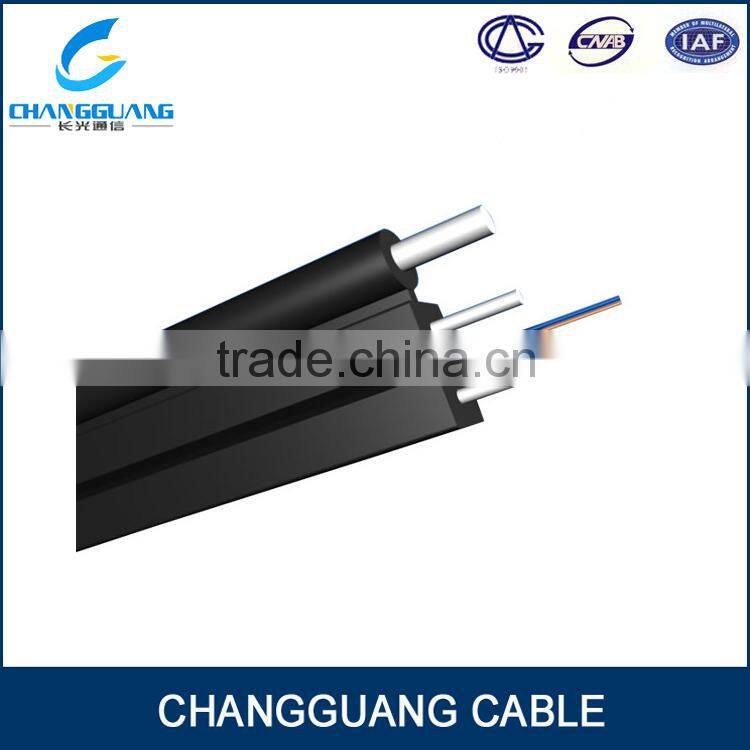

FRP/Steel wire strength member Self-supporting installing cable
Specification

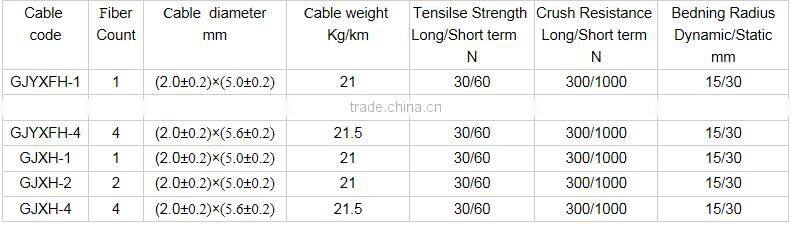

1.Technical Parameter
2.Description Of Product
Product name | FRP/Steel wire strength member Self-supporting installing cable |

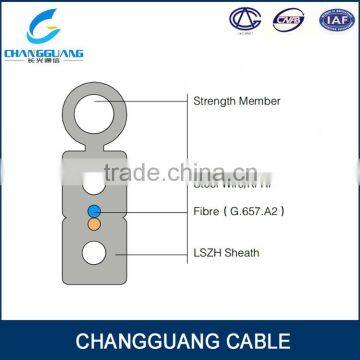

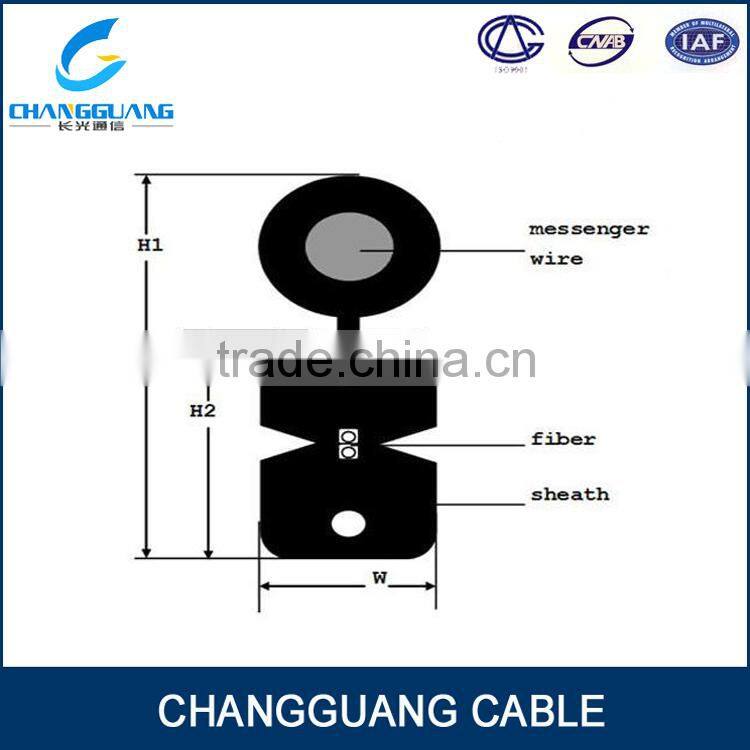

Introduction | The optical fiber unit is positioned in the centre,Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides,A steel wire as the additional strength member is also applied.Then ,the cable is completed with a black or color LSZH sheath. |
Characteristics | Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property |
Two parallel FRP strength members ensure good performance of crushi resistance to protect the fiber | |
Single steel wire as the additional strength member ensures good performance of tensile strengh | |
Simplex structure,light weight and high practicability | |
Novel flute desin,easily strip and splice,simplify the installation and maintenance | |
Low smoke,zero halogen and flame retardant sheath | |
Indoor riser level and plenum level cable distribution | |
Interconnect between instruments, communication equipments | |
Standards | Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794,ETC. |
3. Details Of Product Picture
Production And Test
FRP/Steel wire strength member Self-supporting installing cable
Changguang Communication Technology(Jiangsu)Co.,Ltd' main products of indoor and outdoor fiber optic cable, power cable, special cable, submarine fiber optic cable and a variety of accessories are widely used in government, finance, education, public security, health care, operators and other industries, high-bandwidth applications, new applications, and on the reliability and quality of other demanding applications. Looking at the global market, changguang’s R & D and production products are exported to Southeast Asia, Central Asia, Latin America, Africa and many other countries and regions, with more than a dozen leading global optical communications companies formed a strategic partnership
Main Oversea Markets For FRP/Steel wire strength member Self-supporting installing cable
Other Hot Sale Products From Changguang(Jiangsu)

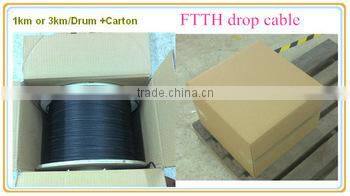

1. Standard Packaging

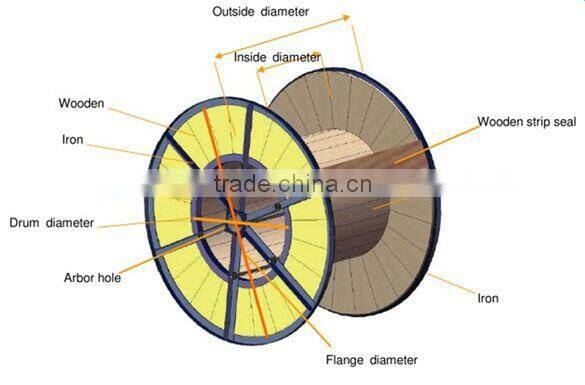

Rolled by wooden drums. 2000m to 6000m/drum or other required(also can be packed in cartons).
2. Sheath mark
The following printing(white hot foil indentatioin)is applied at 1-meter intervals.
a. Supplier: Changguang or as cuctomer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters
me other specific marks as your requirements
3. Shipping Condition
The finished products usually can be shipped by sea to your ports or as per your specific requirements ,and the samples can be mailed by air (such as DHL, TNT,FEDEX .UPS .etc)
1. We can meet your different demands ,such as:adding your logo on the cables according to your requirements.
2. Your inquiry for more products informaition will be replied in 2 hours
3. The camples within 1 meter can be supplied for free
Payment terms | T/T,L/C,ESCROW ,D/A,D/P, Western Union, MoneyGram, Paypal |
MOQ. | 1km/order |
Delivery Time | Within 3 to 7 working days, but most depends on your quantity |
Loading Port | Shanghai,or Lianyungang, China |
OEM | Yes |
Place of Origin | Jiangsu, China |
Quote Request Information | Fiber Count: 2 to 288 Fibers |
Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3 | |
Order Quantity |
Q1: Are you a factory or trading company?
A: We are a 10 years factory with more than 160 experienced workers.
Q2: Where is your factory located? How can I visit there?
A: Our factory is located in Industrial zone, Suqian, Jiangsu province,China. You can fly to Guanyin airport or Shanghai airport ( we also have branch in Shanghai)directly.All our clients, from home or abroad, are warmly welcome to visit us!
Q3: How can I get some samples?
A: We are honored to offer you samples according your inquiry.
Q4: How does your factory do regarding quality control?
A: "Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
1. Professional cable manufacturer.
2. About 10 years experiences in cable industry.
3. Best delivery time.
4.MOQ is 1kilometer
5.High quality with competitive price
6.Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
