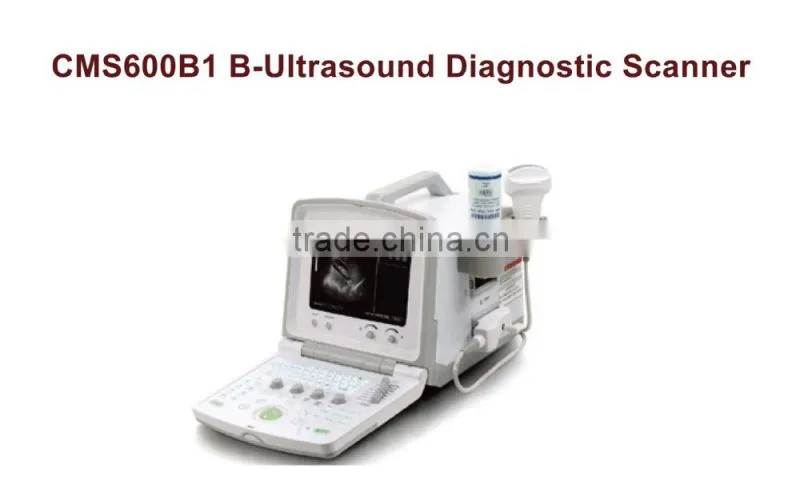

Medical chinese B-Ultrasound diagnostic scanner CMD600B1 ultrasound scanner
| Introductions |
The CMS600B1 is a high resolution full digital B/W ultrasound diagnostic instrument. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing (DRF) technologies. The device is suitable for ultrasonic examination on abdominal, obstetric, cardiac, small parts, urology. |
Medical chinese B-Ultrasound diagnostic scanner CMD600B1 ultrasound scanner
| Main Features |
.Full digital beam forming technology |
Medical chinese B-Ultrasound diagnostic scanner CMD600B1 ultrasound scanner
| Main Performance |
|
Display mode: B, 2B, BM, M, 4B Image gray scale: 256 Scale Monitor size: 10 Inch CRT Depth of penetration: ≥ 180 mm Dead zone: ≤ 3 mm Resolution: Lateral ≤2 (Depth≤80) ≤3 (80Axial ≤1 (Depth≤80) ≤2 (80Image conversion: Up/down, left/right, black/white Image storage: 512 Frame*N group Cine loop: Thousands more Body mark: 43 Software : Obstetric, cardiology, gynaecology, urology, small part Interface: USB2.0, VIDEO, COM, RJ-45 Measurement:Distance, circumference, area, volume, angle, ratio, heart rate, slope, intervals and obstetric |
Medical chinese B-Ultrasound diagnostic scanner CMD600B1 ultrasound scanner
| Standrad configuration |
3.5 MHz Convex Probe Probe Frequency: 2.5-5.0 MHz Applications: Abdominal organs examination |
Medical chinese B-Ultrasound diagnostic scanner CMD600B1 ultrasound scanner
| Optional configuration |
7.5 MHz HF Linear Probe Probe Frequency: 5.0-10.0 MHz Applications: Small part examination |
Medical chinese B-Ultrasound diagnostic scanner CMD600B1 ultrasound scanner
| Physical Identity |
Dimension: 340 (L) × 350 (W) × 280 (H) mm |
