CMS600B-2 Portable scanner machine ultrasound scanner

Name: CMS600B-2 Portable scanner machine ultrasound scanner
Brand: Link ultrasound scanner
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Examination Therapy Equipments	Brand Name:	Link ultrasound scanner	Model Number:	CMS600B-2 ultrasound scanner
Place of Origin:	Shanghai, China

Packaging Details

CMS600B-2 Portable scanner machine ultrasound scanner is usually packed in Carton

Product Description

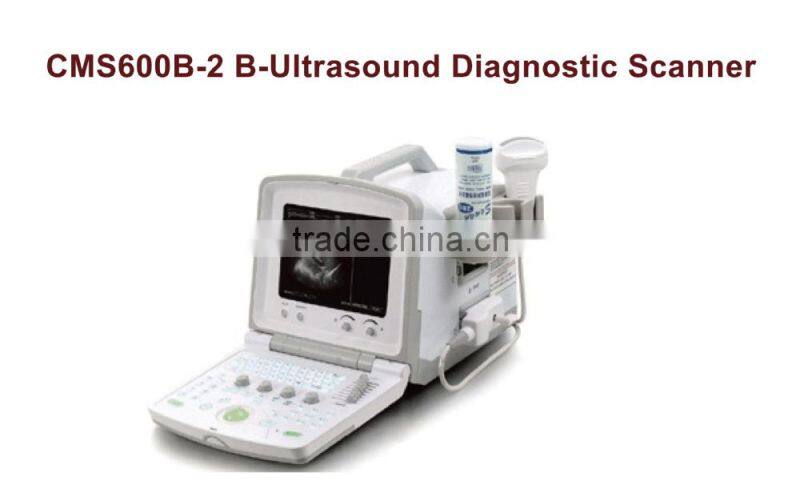

CMS600B-2 Portable scanner machine ultrasound scanner

Introductions

This equipment is high resolution linear/convex ultrasound scanner. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies.The device is suitable for ultrasonic examination on abdominal, obstetric, cardiac, small parts .

Main Features

.PAL-D video output offers connection to external video image printer and big display and other equipments
.High speed USB port provides real time image transfer to the PC
.Adoption of folded soft push keyboard and trackball provides immediate, convenient and flexible operation
.Field programmable gate array and surface mounted technology make this equipment compact and light in weight
.Jet molding enclosure and potable structure

Main Performance

Display mode: B, B/B, BM, M, B+M/M,4B
Image gray scale: 256 Scale
Monitor size: 10 Inch CRT
Depth of penetration: 40mm-240mm
Dead zone: ≤ 3 mm
Geometric: Horizontal ≤ 15 % Vertical ≤ 10 %
Resolution: Lateral ≤2 (Depth≤80) ≤3 (80<Depth≤130)
Axial ≤1mm (Depth≤80)
Image conversion: Up/down, left/right, black/white
Image storage: 64 Frame
Cine loop: ≥500 Frame
Body mark: 40
Software : Obstetric,cardiology
Interface: USB2.0, VIDEO, COM
Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD

Standrad configuration

3.5 MHz Convex Probe Probe Frequency:2.5-5.0 MHz Applications:Abdominal organs examination

Optional configuration

7.5 MHz HF Linear Probe Probe Frequency: 6.5-8.5 MHz Applications: Small part examination
5.0 MHz Micro-Convex Probe Probe Frequency: 4.0-5.5 MHz Applications: Cardiology examination
6.5 MHz Transvaginal Probe Probe Frequency: 5.5-7.5 MHz Applications: Obstetrics and gynecology examination
6.5 MHz Endorectal Linear Probe Probe Frequency:5.0-7.5 MHz Applications: Animal examination

Physical Identity

Dimension: 291 (L) × 365 (W) × 300 (H) mm
Weight:6.4 kg

Qualification

Passed CE
