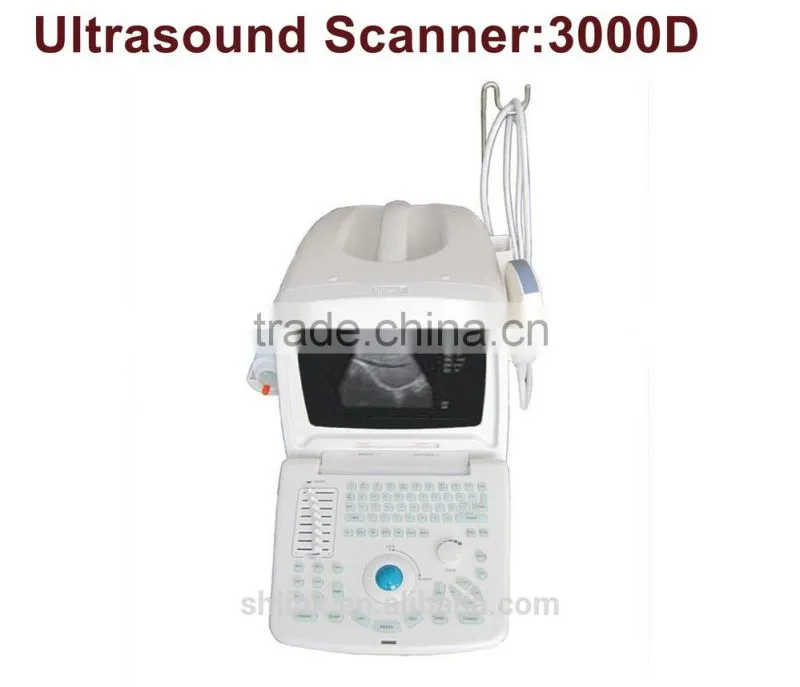

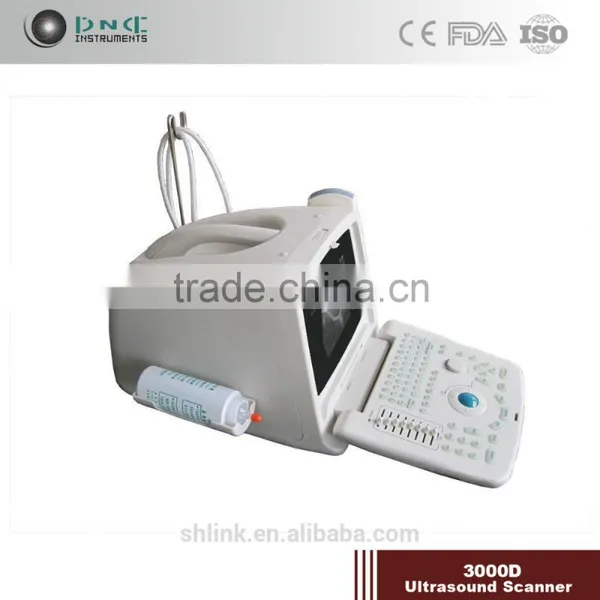

3000D Hospital Portable Digital Ultrasonic Scanner Diagnostic System
| Specification: | |
|
Digital Ultrasonic System(hospital epuipment) Digital Ultrasonic Diagnostic System BIO 3000D Portable Digital Ultrasound Scanner(Hospital equipment)
Standard Configurations: 3000D Main unit 10 non-interlaced SVGA 1pc 3.5MHz R60 convex probe Dual connectors Back-lit keyboard 256 frames cine-loop OB report OB&GYN software 1 USB port One bottle of gel
|
3000D Hospital Portable Digital Ultrasonic Scanner Diagnostic System
Options: |
|
6.5MHz Trans-vaginal probe, 7.5MHz linear probe Video printer (MITSUBISHI P93)
Technical specifications Performance Image mode: B, B+B, 4B, B+M, M Grey:256 Display: 10 non-interlaced SVGA Probe frequency: 2.5~5.0 MHz Probe connector: 2 Lateral resolution: ≤3 mm (depth ≤80mm) ≤4 mm (80mm≤depth ≤130mm) Longitudinal resolution: ≤2 mm (depth ≤80mm) ≤3 mm (80mm≤depth ≤130mm) Detectable depth: ≥240mm Blind area: ≤5mm Geometrical position distortion: Lateral ≤15 Longitudinal≤10
|
Image processing: |
|
Pre-processing: Dynamic Range Edge enhancement Frame correlation Smooth 8 STC Adjustment Post- processing:Gray map Black/white reverse Left/right reverse Up/down reverse |
Functions: |
|
Cine loop: 256-frame cine loop memory
Zoom: x1.0,x1.2,x—1.5,x2.0 magnifications in real time
Permanent Storage: 8
Storage media: Massive image-storage capacity
USB
Front panel control: Brightness, Contrast, Near/far, and Overall gain of the image
Focusing method: Selective multi-step dynamic focusing
OSD (On Screen Display): Date, Time, Age, Sex ,Patient ID and Body-marks, , Gain, Focusing,
Comments and Zoom setting
Measurements:Distance, Circumference, Area, Volume, Angle, Fetal growth
Curve, Heart rate, Time, Velocity
Body-marks: 30
Adjustable biopsy guideline: Guidance for puncture
Sleep mode: Save energy and protect screen and probe
Parameter Preset: Suitable present for different application (Gynecology, Heart, Abdomen,
Urological, Limbs, Paediatric etc.) |
Measurement & calculation: |
|
B-mode & B+B mode: Distance, Area, Circumference in all directions allowed
M-mode: Heart Rate and depth directly allowed
OB measurement: BPD, GS, CRL, AD, FL, AC, HC (amendable)
estimated fetal age from 4 to 43 weeks.
All results of measurement will be sent to OB report automatically
|
Others: |
|
Peripheral port: Video output 1
USB port 1
Power supply: AC 100V~240V±10%
50Hz/60Hz
Dimension (cm): 43(L)X28(W)X25(H)
Net weight: 10 KG
|
