Portable ecg monitor with color touch display ECG Monitor ECG-312B

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Examination Therapy Equipments		Brand Name	Link ECG Monitor
Model Number	ECG-312B ECG Monitor		Place of Origin	Shanghai, China

Packaging Details

Portable ecg monitor with color touch display ECG Monitor ECG-312B Monitor is usually packed in Carton

Product Description

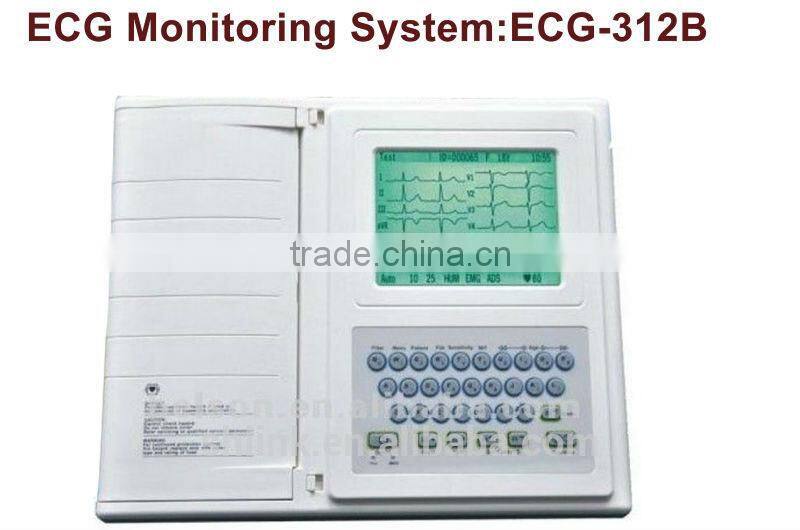

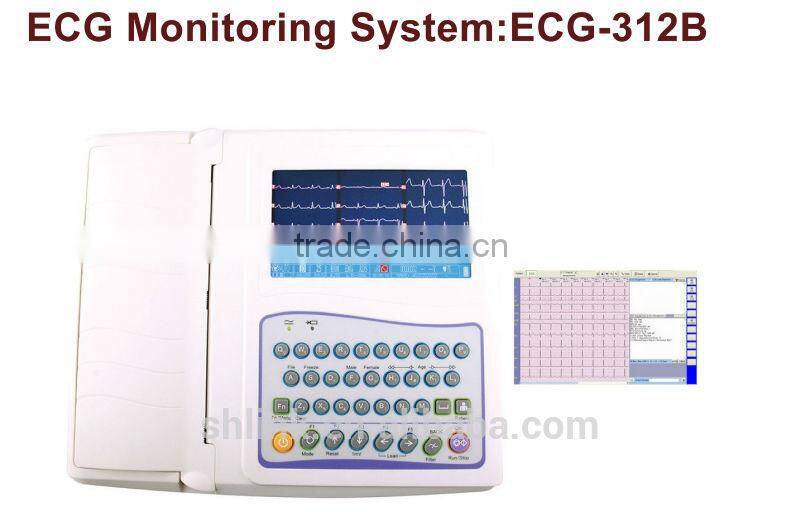

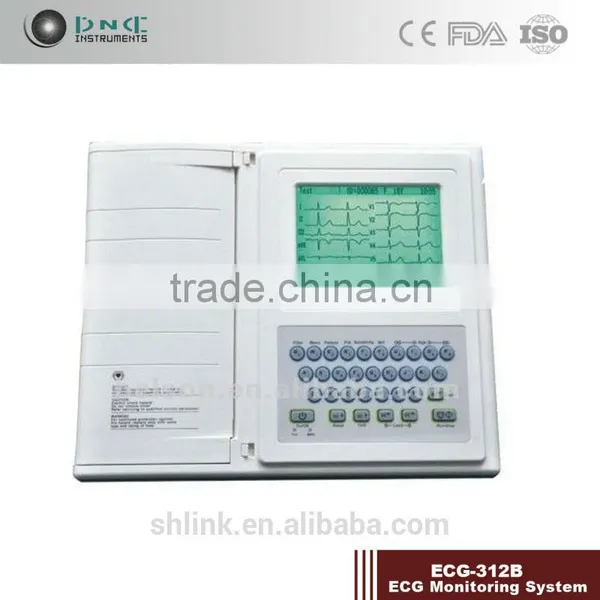

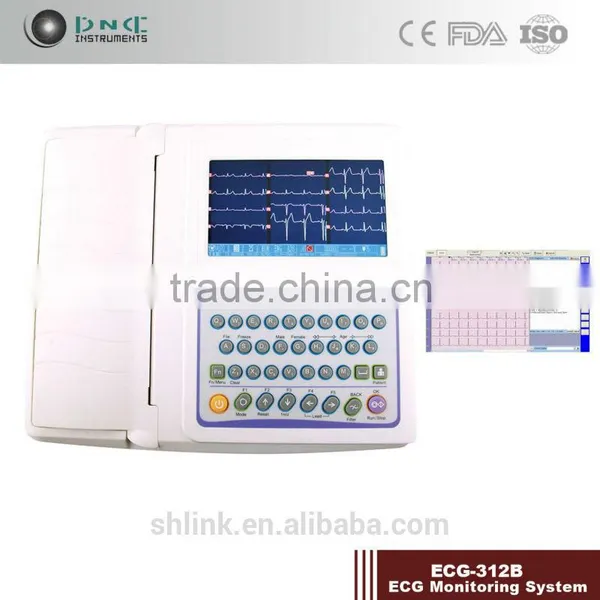

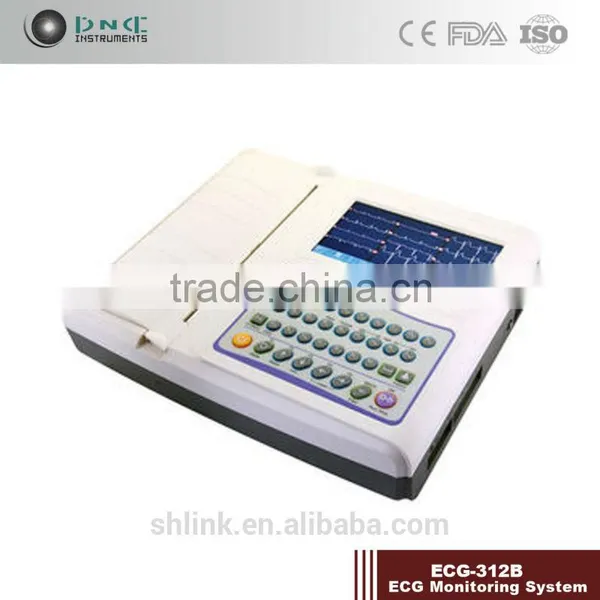

Portable ecg monitor with color touch display ECG Monitor ECG-312B

Features:

Accurate pulse pace identification and automatic analysis function

Working modes: Manual / Auto / Analysis/Storage

80mm, 3 channel format recording

320×240 graphic 3.5 inch color LCD

12 leads synchronously acquisition and display

100 patient cases save and replay (extendable)

Advanced [Freeze] function

Adapt to 110-230V, 50/60Hz power supply

Built-in rechargeable Ni-MH battery

High resolution thermal printing

USB/RS232 interface, ECG software is optional

Can be connected to Network, USB Disk, Printer and Code Scanner (Optional)

Specification

Lead	Standard 12 leads	Time constant	≥3.2s
lead acquisition	12bit/1000Hz(synchronously 12 leads)	Frequency response	0.05~160Hz(-3db)
Work mode	22 Series:Man / Auto/Analysis	Noise level	<15μVp-p
Work mode	33 Series: Man / Auto/Analysis/Storage	Noise level	<15μVp-p
Filter	AC Filter : 50Hz / 60Hz	Inter-channel Interference	≤0.5mm
	EMG Filter : 25Hz / 45Hz
	Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR	≥100dB (with AC FILTER)	Sensitivity	5,10,20, 40, Auto (mm/mV)
Input circuit	Floating; Protection circuit against	Recording mode	3ch, 3ch+
	Defibrillator effect		Default Man. Mode is 3ch format
			Default Auto. Mode is 3ch+ format
Input Impedance	≥50MΩ	Paper speed	6.25,12.5,25,50mm/s(±3%)
Input circuit current	≤0.05μA	Paper	80mm *20m Roll paper
Patient current leakage	<10μA	Communication	RS232/ USB port
Calibrating voltage	1mV±2%	Power Supply	AC 110-230V(±10%),50/60Hz)±1Hz),60VA
Calibrating voltage	1mV±2%	Power Supply	DC Built-in rechargeable battery,14.4V(2000mmAh)
Voltage tolerance	≥±500mV	Dimension/Weight	285mm×265mm×72mm/2.8Kg
