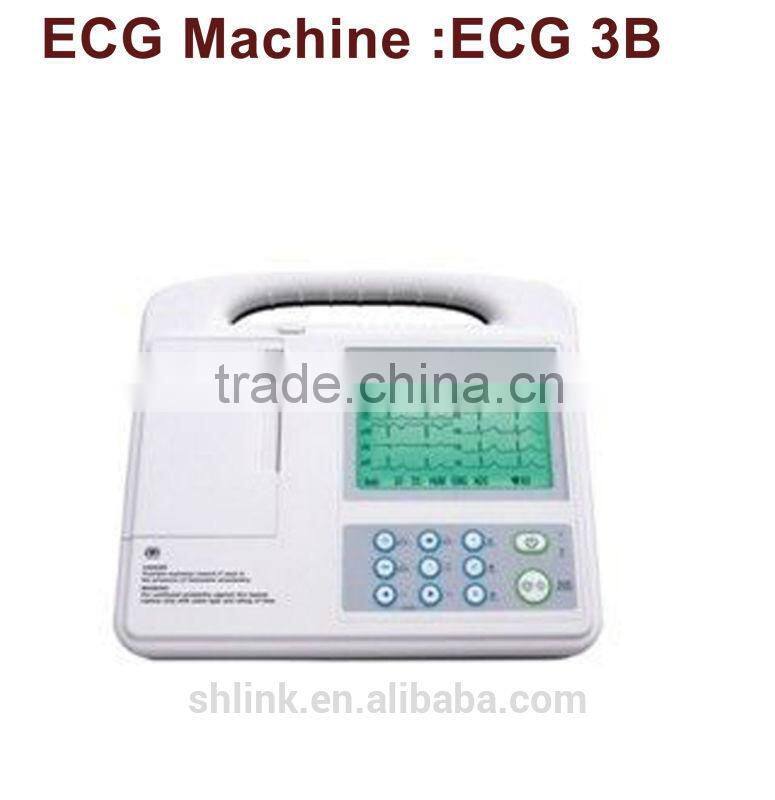

Digital Portable Ecg Machine ECG 3B ECG Monitor

Name: Digital Portable Ecg Machine ECG 3B ECG Monitor
Brand: Link ECG Monitor
SKU: 130479243
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Examination Therapy Equipments

Brand Name:

Link ECG Monitor

Model Number:

ECG 3B ECG Monitor

Shanghai Link Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Examination Therapy Equipments

Brand Name Link ECG Monitor

Model Number ECG 3B ECG Monitor

Place of Origin Shanghai, China

Digital portable ecg machine ECG 3B ECG Monitor

Features:

· Three channel digital ECG machine with interpretation

· Simultaneous acquisition of 12-lead ECG signal

· Manual/Auto/Arrhythmia analysis modes

· Real time ECG, 20 patients cases

· Multiple printing modes

· 80mm 3-ch recording with rhythm lead

· 320x240 graphic, 3.8 inch LCD

· High resolution thermal printing system

· High resolution digital filter

· Built-in USB or RS232, optional PC-ECG software

· AC/DC power, built-in rechargeable Ni-MH battery

· Light weight with handle, convenient for use

Specification

Safety standard	IEC60601-1 class I, type CF
Lead	Standard 12 Leads, Lead change automatically
Resolution	12 bit / 1000Hz
Operation mode	Manual/Auto/Analysis modes
Filter	AC, EMG filter
Drift filter	Anti-drift system
Input circuit	Floating; Protection against Defibrillator effect
CMRR	>100dB (with filter)
Input circuit current	<0.1μA
Input impedance	≥50ΜΩ
Calibrating voltage	1mV±3%
Frequency response	0.05Hz~160Hz (IEC)
Time constant	>3.2seconds
Noise level	≤15Vp-p
Threshold	≤20μV
Sensitivity	Auto 2.5, 5, 10, 20, 40mm/mV
Recording system	High resolution thermal printer
Paper speed	25, 50mm/s±3%
Recording paper	80mmx20m, roll/fold paper
Power supply	AC: 220V / 110V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (2200mAh)
LCD display	320x240 graphic, 3.8 inch LCD
Dimensions	285×265×72mm
Weight	2.5kg
