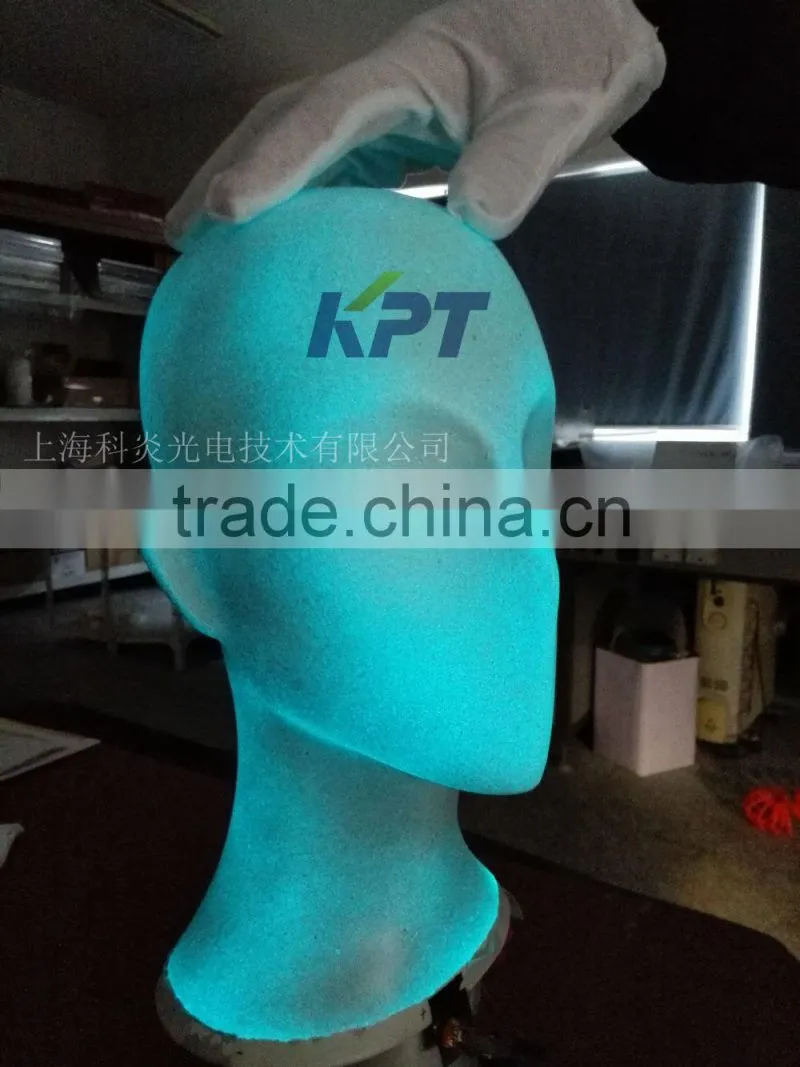

3D Stereoscopic Electroluminescent Paints or Materials for Car

US$ 1,000 - 1,700 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KPT

Model Number:

Shanghai Keyan Phosphor Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KPT

Model Number 3D

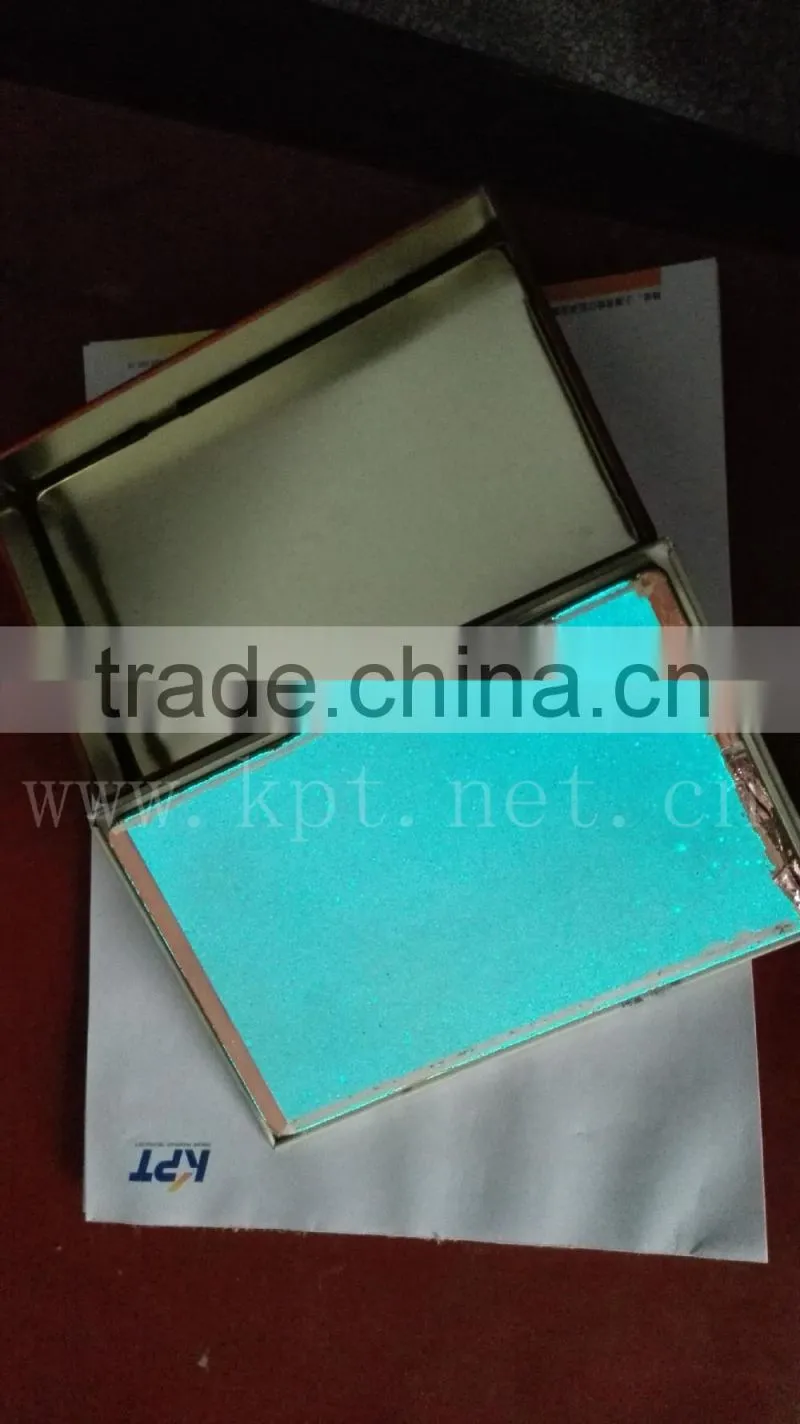

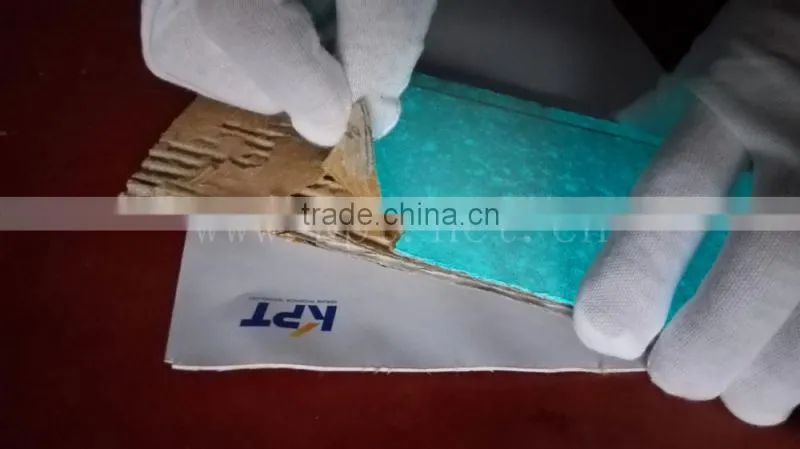

3D stereoscopic electroluminescent devices materials

1.Application field:

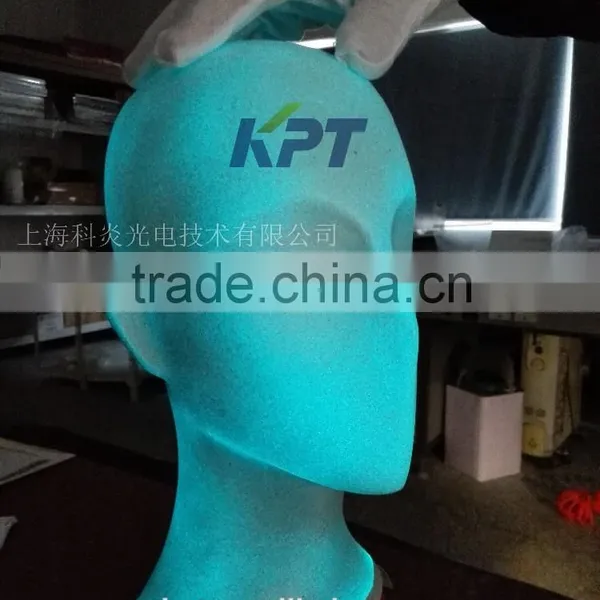

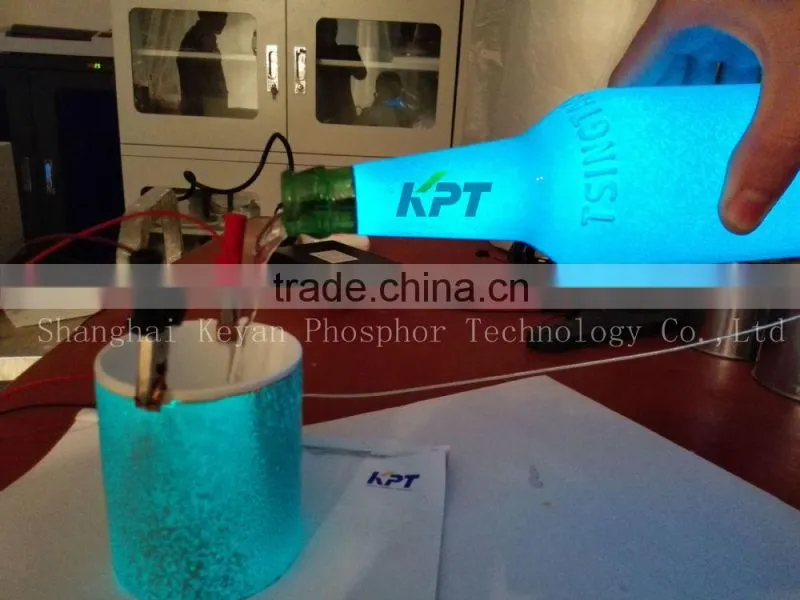

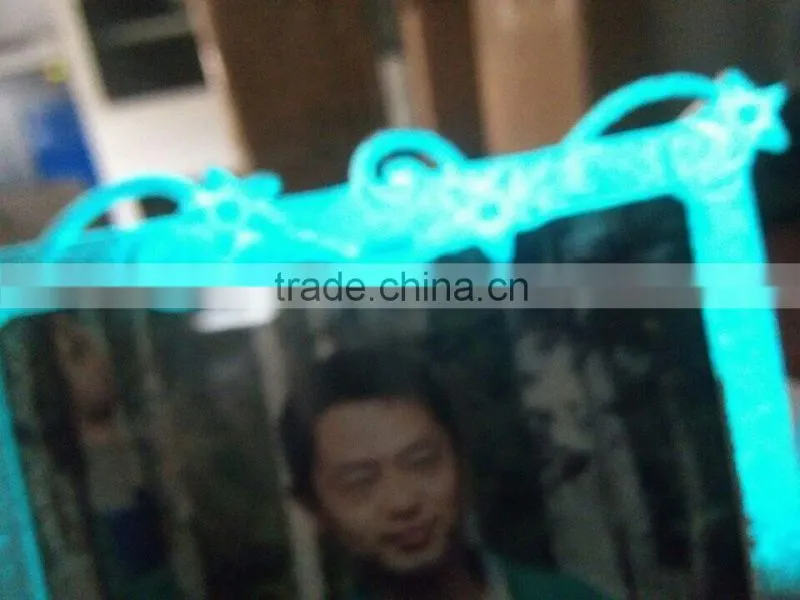

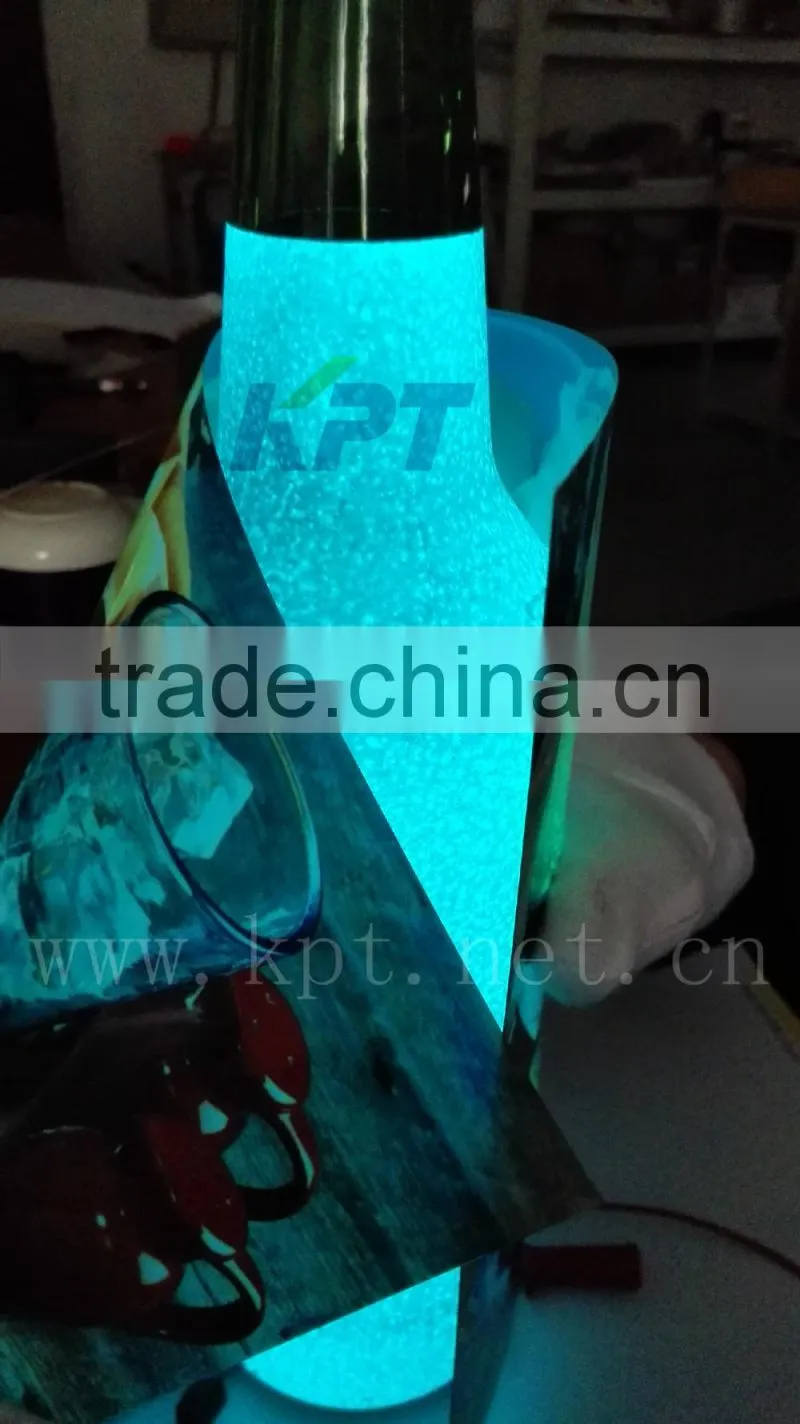

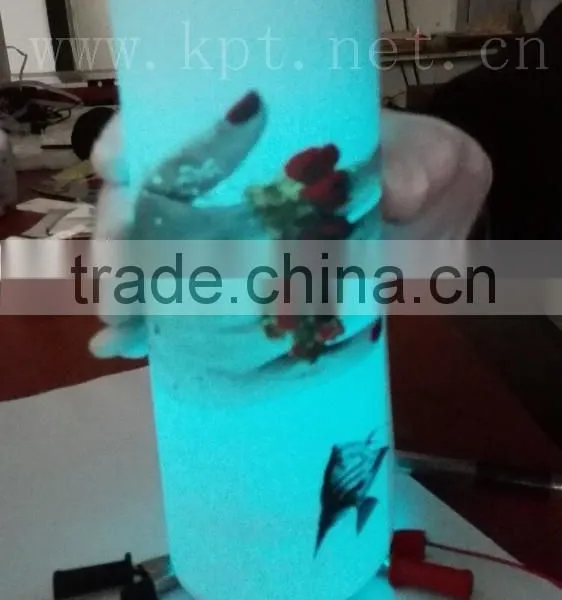

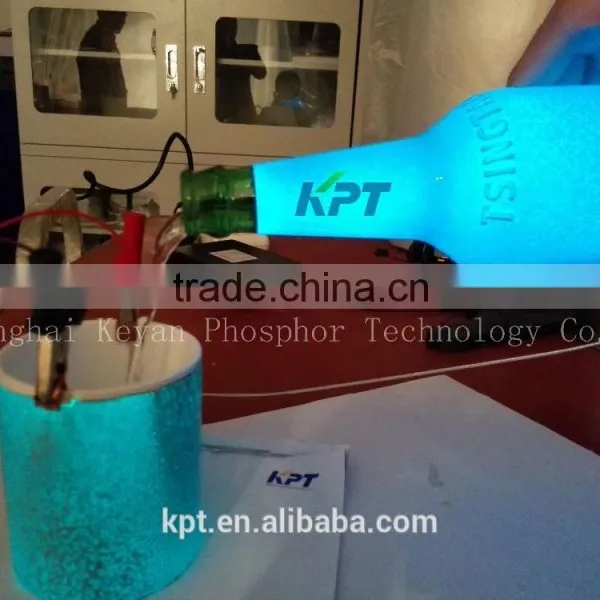

Glowing advertising , glowing building, safe sign, glowing model , glowing clothing , car ads , glowing sheet .

2.Suitable surface:

Plastic, wood , metal, glass , ceramics , cardboard, paper , fabric , film , walls, stone and so on .

Application condition:AC110-220V,DC12-24V,DC9V,DC4.5V,DC3V,etc.

3.Supply ways:

1)KPT company makes sample or volume production according to customers’ requirement.Small objects will be sent via

logistics , large objects needs site design ( such as: walls, furniture , cars, ship, etc. )

2)KPT provides materials and technical support, then users can design and make products by themselves.

4. Materials

1)Basic Materials ( The complete Set of raw materials can make about 10m*2

or so Lighting size )

ITEM No.	DESCRIPTION	WEIGHT (Plastic Bottle Package)	MAKING SIZE (m2)	FUNCTION
KPT-EL1.	Substrate Paint	Liquid 1000ml	5-10	Basic substrate paint
KPT-EL2.	Substrate Conductive Paint A	Liquid 1000ml	6-15	Electrode A
KPT-EL3.	White Insulating Paint	Liquid 1000ml	6-11	White insulation
KPT-EL4.	Lighting Paint	Liquid 1000ml	6-10	Luminescence
KPT-EL5.	Conductive paint B	Liquid 300ml	10-12	Electrode B
KPT-EL6.	Protective Layer Coating	Liquid 1000ml	5-10	Seal protection
KPT-EL7.	Modifing Agent	Liquid 10ml	----	Solidify
KPT-EL	Making Technology CD	1 pc	-----	Free Charge supply based on purchasing raw materials

Remarks: 1 m2 = 16.4 x A4=16.4x(29x21) cm=16.4 times for a big beer bottle’s surface size

2. ) Supporting Materials and Tools (Option):

No.	DESCRIPTION	FUNCTION	INDEX
1	Electrode-connected copper Tape	To stick electrode leading cable simplely	1 roll
2	Driver/inverter DC 3V	Driving area A6 (105x148mm)	3 V
3	Driver/Inverter DC12V	Driving area A4 (210x297mm)	12 V
4	Driver/Inverer DC12V	Driving area A3 (297x420mm)	12 V
5	Driver/Inverter AC220	Driving area A2 (420x594mm)	220 V
6	Driver/Inverter AC220	Driving area A1 (594x841mm)	220 V
7	Tools	Tools
8	Diluent	To adjust the viscosity	500ml
9	Fluorescent dyes	To add color	Red,blue,green 3KG
10	Infrared Lamp unit	Simple heating	AC220V
11	UV Lamp	To observe Light Uniformity	DC12V
12	Infrared Drying Box	To heat and dry	220V
13	Electronic Scale	To weight the qty for dosing	12V
14	Multimeter	Measure resistance
15	Moble phone microscope	To observe spraying surfaces	100 times
16	Special Test equipment	Test the rightness	220V PC
17	Test Clip	Facilitate to connect and detect	5 Pairs
