Product Details
Place of Origin: | Shanghai, China | Brand Name: | KPT | Model Number: | 3D |
Packaging Details
Bottle and carton
Product Description

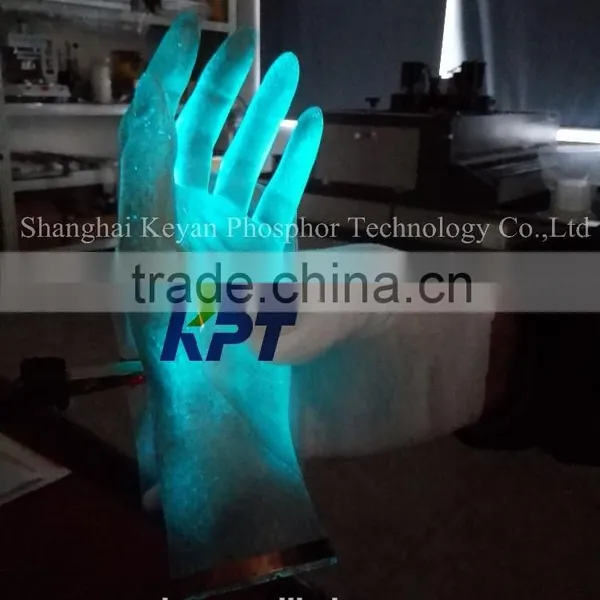

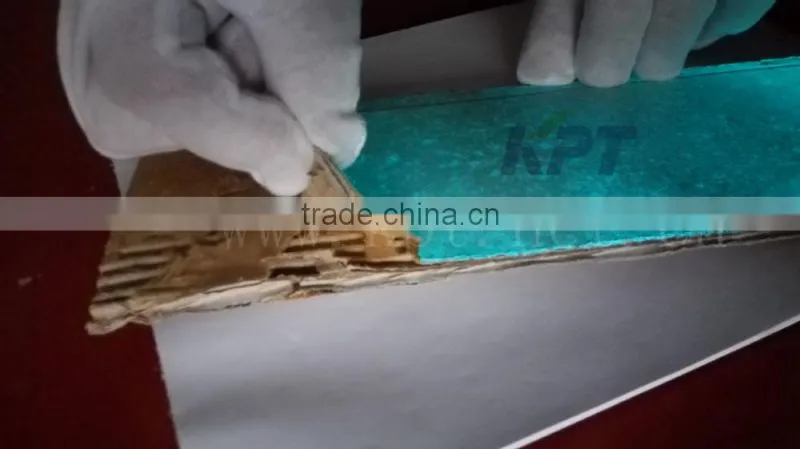

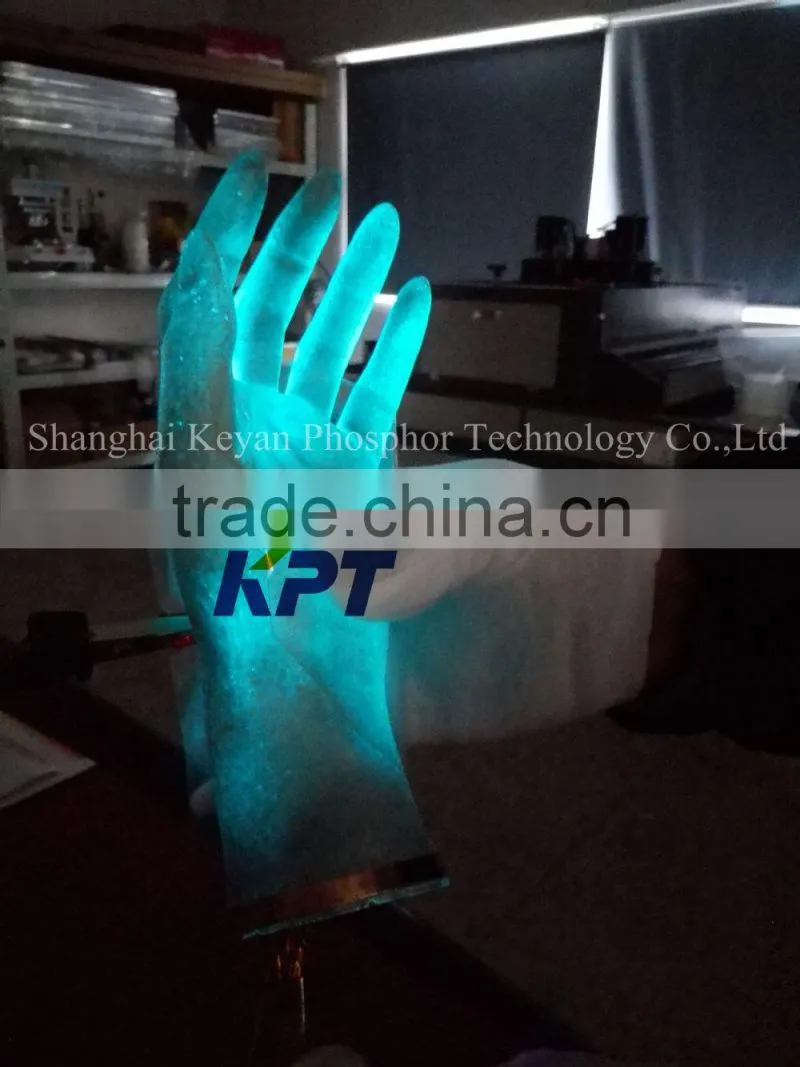

3D stereoscopic electroluminescent devices materials
1. APPLICAITON :
Lighting advertising , Lighting building, Safety Sign, Lighting Model , Lighting clothing ,
Car advertisement, Lighting Paper.
2. APPLICATION BASE MATERIAL :
Plastic, wood , metal, glass , ceramics , cardboard, paper , fabric , film , walls, stone etc .
3. PRODUCTS SUPPLY:
KPT make and supply raw materials kits as well as technology, customes design and make it by themselves.
4. RAW MATERIAL:
1)Basic Materials ( The complete Set of raw materials can make about 10m*2
or so Lighting size )
ITEM No. | DESCRIPTION | WEIGHT (Plastic Bottle Package) | MAKING SIZE (m2) | FUNCTION |
KPT-EL1. | Substrate Paint
| Liquid 1000ml | 5-10 | Basic substrate paint |
KPT-EL2. | Substrate Conductive Paint A
| Liquid 1000ml | 6-15 | Electrode A |
KPT-EL3. | White Insulating Paint
| Liquid 1000ml | 6-11 | White insulation |
KPT-EL4. | Lighting Paint | Liquid 1000ml | 6-10 | Luminescence |
KPT-EL5. | Conductive paint B
| Liquid 300ml | 10-12 | Electrode B |
KPT-EL6. | Protective Layer Coating | Liquid 1000ml | 5-10 | Seal protection |
KPT-EL7. | Modifing Agent | Liquid 10ml | ---- | Solidify |
KPT-EL | Making Technology CD | 1 pc | ----- | Free Charge supply based on purchasing raw materials |
|
|
|
|
|
Remarks: 1 m2 = 16.4 x A4=16.4x(29x21) cm=16.4 times for a big beer bottle’s surface size
2. ) Supporting Materials and Tools (Option):
No. | DESCRIPTION | FUNCTION | INDEX |
1 | Electrode-connected copper Tape | To stick electrode leading cable simplely | 1 roll |
2 | Driver/inverter DC 3V | Driving area A6 (105x148mm) | 3 V |
3 | Driver/Inverter DC12V | Driving area A4 (210x297mm) | 12 V |
4 | Driver/Inverer DC12V | Driving area A3 (297x420mm) | 12 V |
5 | Driver/Inverter AC220 | Driving area A2 (420x594mm) | 220 V |
6 | Driver/Inverter AC220 | Driving area A1 (594x841mm) | 220 V |
7 | Tools | Tools |
|
8 | Diluent | To adjust the viscosity | 500ml |
9 | Fluorescent dyes | To add color | Red,blue,green 3KG |
10 | Infrared Lamp unit | Simple heating | AC220V |
11 | UV Lamp | To observe Light Uniformity | DC12V |
12 | Infrared Drying Box | To heat and dry | 220V |
13 | Electronic Scale | To weight the qty for dosing | 12V |
14 | Multimeter | Measure resistance |
|
15 | Moble phone microscope | To observe spraying surfacs | 100 times |
16 | Special Test equipment | Test the rightness | 220V PC |
17 | Test Clip | Facilitate to connect and detect | 5 Pairs |
Company Profile
Shanghai Keyan Phosphor Technology Co., Ltd. (KPT CO.) is a High tech enterprise engaged in making and supplying
various types of phosphor light material and instruments since 2000 year in Shanghai China.
The products include EL electroluminescent wires, phosphors (also called EL wires, flexible neon wires, cool wires, cool neon, and rope lighting glow toys), Christmas lighting decoration, garden illumination, intellect twinkling toys, clothing, darkness safety signs, car decoration, and flexible neon advertisement.
Our company researched EL materials with glass and enamel to make flat lighting displays and phosphor instrument since 1965 and plastic EL panels in 1980. In 1990, we started our work on flexible neon wires (EL wires); and in 2000, we were supported by China government for mass production of EL wires and various kinds of phosphor materials.
We are equipped with advanced production and test machines for EL wire and phosphor materials and have strong new product development ability. Now we owned over 20 patents for all of our products, among which KPT and EL wire are exported to over 30 overseas countries. Meanwhile, we can supply tech consulting service for domestic and worldwide customers.
If you are interested in any of our products, please feel free to contact us.
