Best Quality SOM2000C ophthalmic Operation Microscope

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsD/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	LINK SOM2000C ophthalmic Operation Microscope
Model Number	SOM2000C ophthalmic Operation Microscope

Packaging Details

Package: SOM2000C ophthalmic Operation Microscope
Carton Box

Product Description

Product Description

Pictures

Features

SOM2000C ophthalmic Operation Microscope

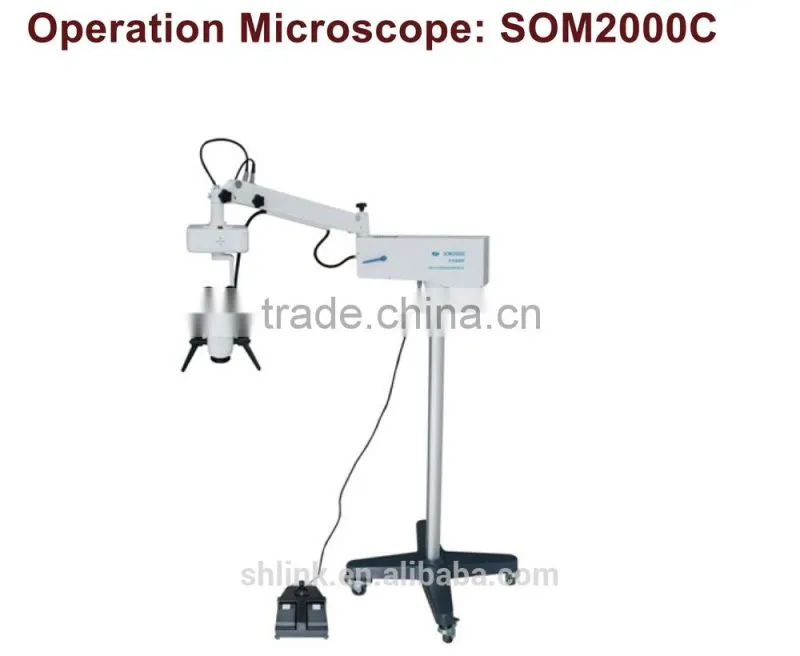

Operation Microscope: SOM2000C

Features:

•Compact structure and complete functions.

•4×~24×zoom magnifications,horizontal movement of foot control and fine focusing.

•Germany imported Schott optics ensure the sharp image and even field of view.

•Applied in operations and fine examinations of ophthalmology,ENT ,surgery,etc.

Specifications:

Eyepiece Magnification	12.5×/16B
Diopter Adjustment	±6D
Pupil Distance	50mm~75mm
Visual Angle of Eyepiece	30°~90°(Eyepiece moving between 0°~180°is optional )
Magnifications for Main Microscope (Diameter of Field)	4×~24×(41.5mm~7.5mm)
Objective Lens	f=200(f=175/250/300 is optional)
Maximal Resolution	119LP/mm
Working Distance	190mm
Illumination Source	15V/150W,Medical Cold-reflection Halogen Bulb
Illumination Type	6°+0° Coaxial Illumination
Coaxial Illumination	≥40,000lx
Filters	Orange filter(cobalt filter is optional)
Reaching Radius of Arm	1020mm
Adjustable Vertical Range	250mm
Fine Focusuing Range and Speed	30mm,≤2mm/s
Speed for X-Y and Range	50mm×50mm,≤2mm/s
Input Voltage	AC220V±22v/ 50Hz±1Hz,AC110V±11v / 60Hz±1Hz
Power	200VA
Fuse	T2AL 250V (51S-040H),T4AL 125V (51S-080L)
Electrical Safety Standard	Executive Standard:GB9706.1-2007,Class I
Packing Volume	0.418m, 2cartons
Total Weight	87kg
