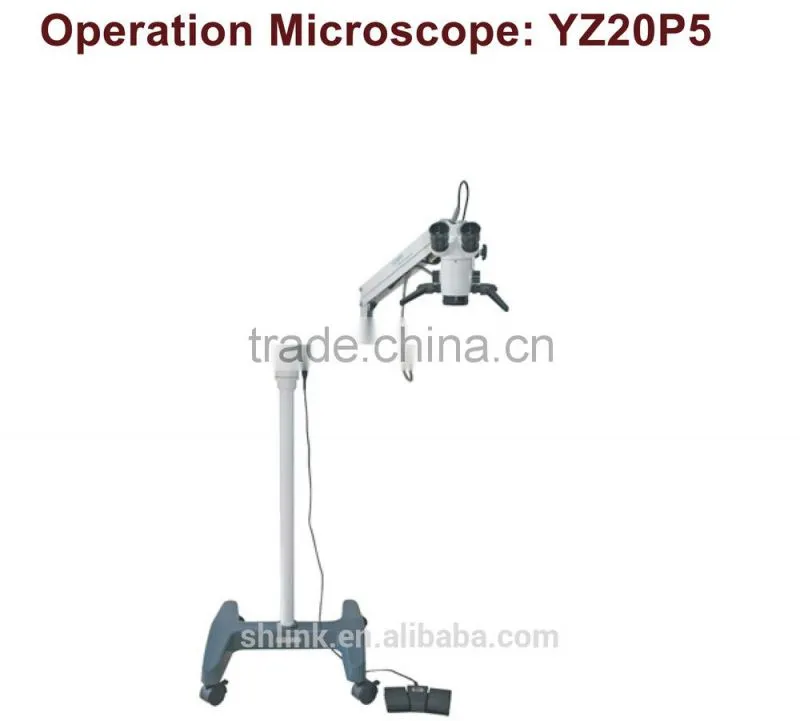

Help CenterBest Quality YZ20P5 Ophthalmic Operation Microscope
Related Products
-
Low Price YZ20P6 Ophthalmic Operation MicroscopeNegotiableMOQ: 1 Set -
Low Price YZ20T9 Ophthalmic Operation MicroscopeNegotiableMOQ: 1 Set
-
Best Quality Ophthalmology YZ22 CampimeterNegotiableMOQ: 1 Set
-
Best Quality Ophthalmology YZ24B Rechargeable RetinoscopeNegotiableMOQ: 1 Set
-
Best Quality Ophthalmology YZ25B Binocular Indirect OphthalmoscopeNegotiableMOQ: 1 Set
Product Description
Pictures
Features
Features:
·All the lenses are multi-coated,mildewproof and anti-reflective.
·Optional objectives: f250/f300/f350f/f400.
·Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements.
Specifications:
Eyepiece Magnification |
12.5× |
Objective Lens |
f=200 |
Working Distance |
190mm |
Magnifications for Main Microscope |
5.3×,8×,12× |
Diameter of Field |
F37mm,F25mm,F16.7mm |
Diopter Adjustment |
±7D |
Pupil Distance |
50mm~80mm |
Maximal Resolution |
100LP/mm |
Illumination Source |
12V/100W,medical cold reflection halogen lamp |
Illumination Type |
6°+0°Coaxial cold light source illumination |
Coaxial Illumination |
≥30000lx |
Reaching Radius of Arm |
870mm |
Adjustable Vertical Range |
700mm~1100mm |
Fine Focusing Range |
30mm |
Input Voltage |
AC220V±22 V / 50Hz±1Hz,AC110V±11V /60Hz±1Hz |
Power |
120VA |
Fuse |
AC250V T1.25A ,AC125V T2.5A |
Electrical Safety Standard |
Executive Standard: GB9706.1-2007,type I |
Packing Volume |
0.2m3,1carton |
Total Weight |
41kg |
Best service ,Reasonable Price And Better Quality For You!
