Ophthalmology YZ23B Synoptophore

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	LINK Synoptophore
Model Number	YZ23B Synoptophore

Packaging Details

Ophthalmology YZ23B Synoptophore
is usually packed in Carton

Product Description

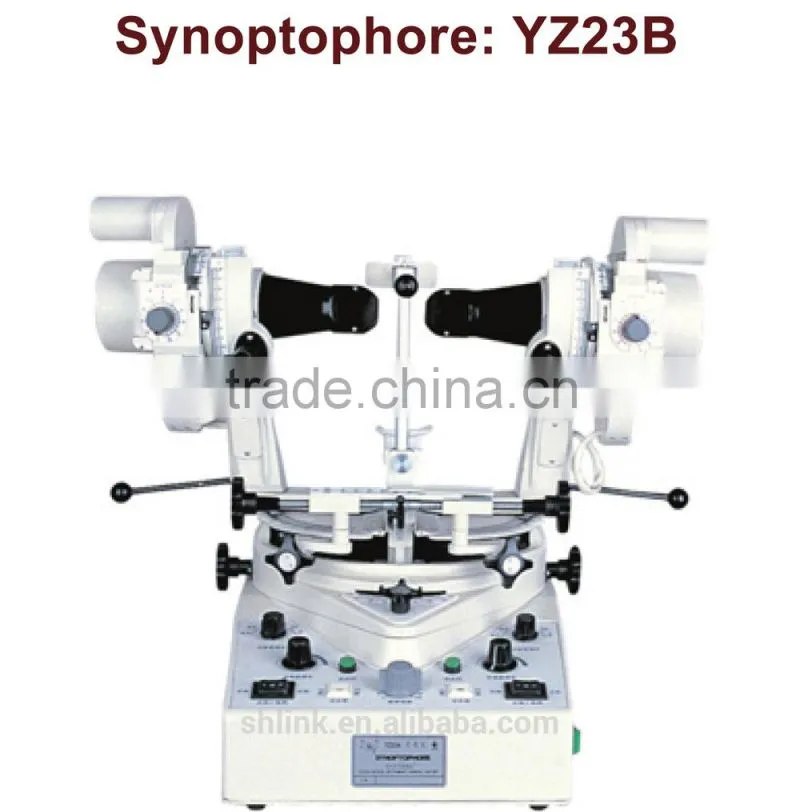

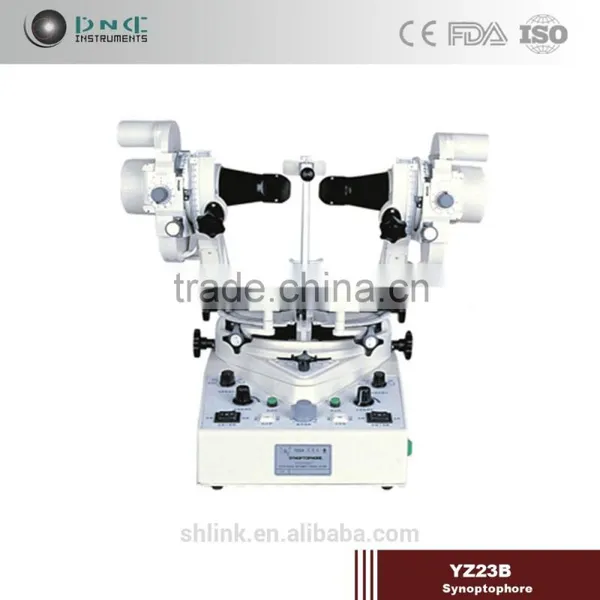

Ophthalmology YZ23B Synoptophore

Synoptophore: YZ23B

Features:

· With functions of diagnosis, treatment, simultaneous viewing, syncretic viewing, solid viewing, and afterimage.
· Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angle.
· Advanced semi-transparent and semi- reflecting viewfinder is convenient for the surgeon to observe.
· Advanced LED luminophor has even lllumination, low heat and long service life.
· Pictures designed by new technology are anti-broken and has long service life.
· Manual or automatical coruscation with accurate frequency are at surgeon’s option.

· Optional pictures for quantitative measuring of solid acutance (40“~1000“)

Specifications:

Magnification	1.65×
Diameter of Field	≥56mm
Red light	λ=640mm coruscation system
Left and right tubes rotate around erect axis	converging 50°, diverging 40°
Left and right tubes rotate around horizontal axis	±30°
Pictures of left and right can be moved up and down according optical axis	±10
Pictures of left and right rotate around optical axis	±20°
Adjustable range of interpupillary distance:	45~75mm
Darkroom illumination	LED bulb with symmetry design
Adjustable Haidingers Brush	50-100round/ minute
Coruscation form	manual or automatic

Competitive Points:

YZ23B Synoptophore is an ophthalmic instrument designed with optical, mechanical and electrical technology, which can be applied in inspecting and treating various binocular functions, such as strabismus, amblyopia, diplopia, heterophoria, etc.

Company Profile

Shanghai Link Instruments Co., Ltd.

Shanghai Link Instruments Co.,Ltd. located in Nanxiang Hi-tech Park Innovation Center, it is one of the biggest specialized manufactures engaged in development, production, sales and service in medical field. We possess a high-tech research team, advanced instruments and a welleducated staff team. Our main products include: Medical Consumables, Hospital Furnitures, Surgical Instruments, Dental Products, Patient Monitors and other processing equipments including Lens Edger etc. The company has passed ISO9001, some of the products have passed CE. Now most of products have been sold to Europe, America, Southeast Asia and Africa, etc. We focus on devoting innovative achievement in optical field and establishing excellent brand. We provide with not only superior products with fashionable design, but also high-quality service. We start from the details, will be your trustworthy cooperator!
